8
English

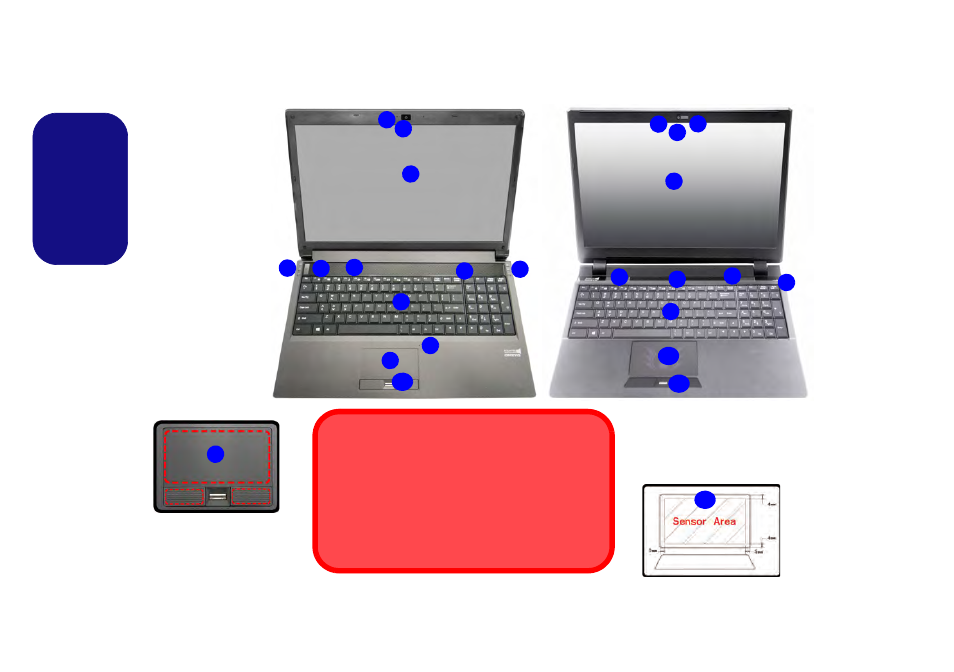

System Map: Front View with LCD Panel Open (Models A, B & C)
2
1
8
6
7
5 6 4
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines above.
Figure 5 - Front View
with LCD Panel Open
(Models A, B & C)
1. PC Camera
2. *PC Camera LED
*When the PC camera
is in use, the LED will
be illuminated in red.
3. LCD
4. Speakers
5. Power Button
6. LED Indicators
7. Keyboard
8. Built-In Microphone
9. Touchpad and Buttons
10. Illuminated Touchpad
and Buttons
11. Fingerprint Reader
(Optional)
3
2
1
8
7
4
5
Models A & C
15.6” (39.62cm)
Model B

Wireless Device
Operation Aboard Aircraft
The use of any portable electronic transmission devic-
es aboard aircraft is usually prohibited.
Make sure the WLAN & Bluetooth module(s) are OFF
if you are using the computer aboard aircraft by putting
the system in to Airplane Mode.
4
11
3
6
11
15.6” (39.62cm)
4
10
Note that the Illuminated Touch-
pad has a defined valid opera-
tional area of sensitivity indicated
within the sensor area of the illus-
tration below.
10
9
9
