System Map: Right View

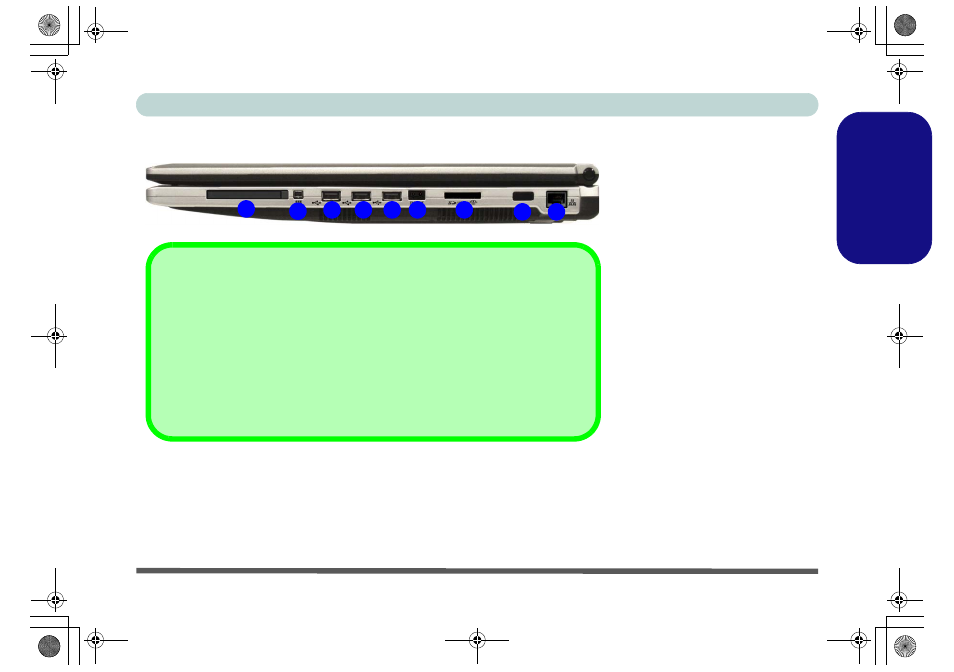

Figure 6 - Right View
1. PC Card Slot
2. Mini-IEEE 1394a Port
3. 3 * USB 2.0 Ports
4. TV Antenna Jack
*
(an adapter is provided for CATV
connection)
5. 7-in-1 Card Reader
6. Infrared Transceiver
7. RJ-45 LAN Jack
*
Enabled with Optional Mini-PCI TV
Tuner Only
2 1 3
7-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
Mini-IEEE 1394a
The Mini-IEEE 1394a port only supports SELF POWERED IEEE 1394a devices.
3 3 4 5 6 7
