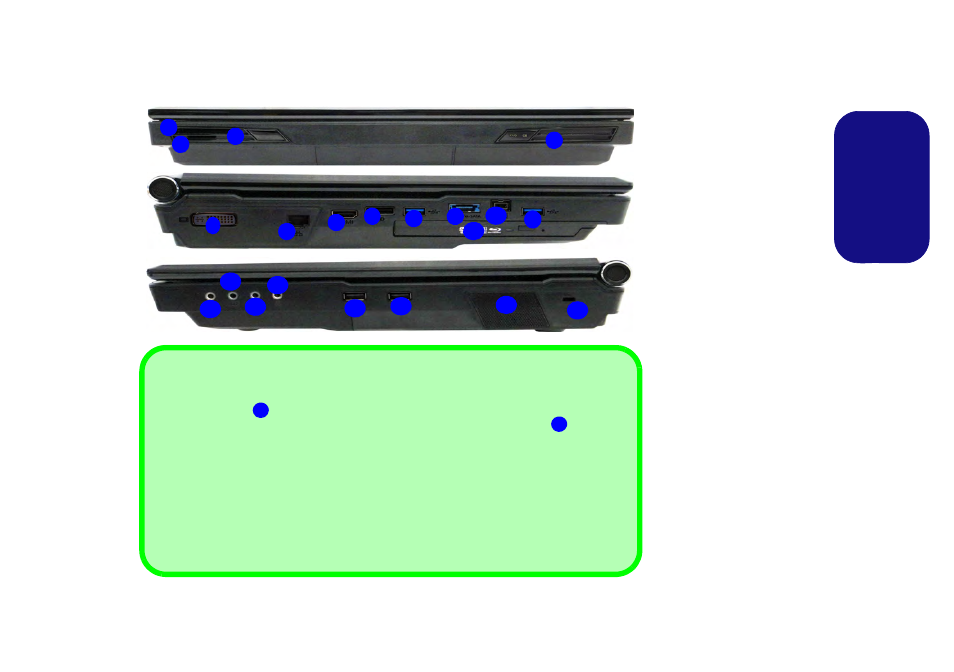

System Map: Front, Left & Right Views Figure 8
Front, Left & Right Views
1. LED Power Indicators
2. Express Card Slot (54/34)
3. Multi-In-1 Card Reader
4. DVI-Out Port
5. RJ-45 LAN Jack
6. HDMI-Out (1.4a) Port
7. Display Port
8. USB 3.0 Ports
9. Combined eSATA/Powered
USB 3.0 Port (See Below)
10. Mini-IEEE 1394b Port
11. Optical Device Drive Bay
12. Headphone-In Jack
13. Microphone-In Jack
14. Line-In Jack
15. S/PDIF-Out Jack
16. USB 2.0 Ports
17. Sub Woofer
18. Security Lock Slot
3
6 4
5
7
1
2
1
Front
Left
Right
12
17 16
15
14
10
18
11

USB
The USB 3.0 ports are colored blue. USB 3.0 will transfer data much faster than USB 2.0,
and is backwards-compatible with USB 2.0. When the powered USB 3.0 port is on it will
supply power (for charging devices only, not for operating devices) when the system is off
but still powered by the AC/DC adapter plugged into a working outlet, or powered by the battery
with a capacity level above 20% (this may not work with certain devices - see
page 34 ). Toggle
power to this port by using Fn + power button.
HDMI
Note that the HDMI Port supports video and audio signals to attached external displays (Note
THX Tru Studio Pro will be disabled when you are connecting to an external display through an
HDMI connection - see
page 23 ).
