Upgrading The Computer

6 - 6 Replacing the Component Bay Cover - Model A

6

Replacing the Component Bay Cover - Model A

1.

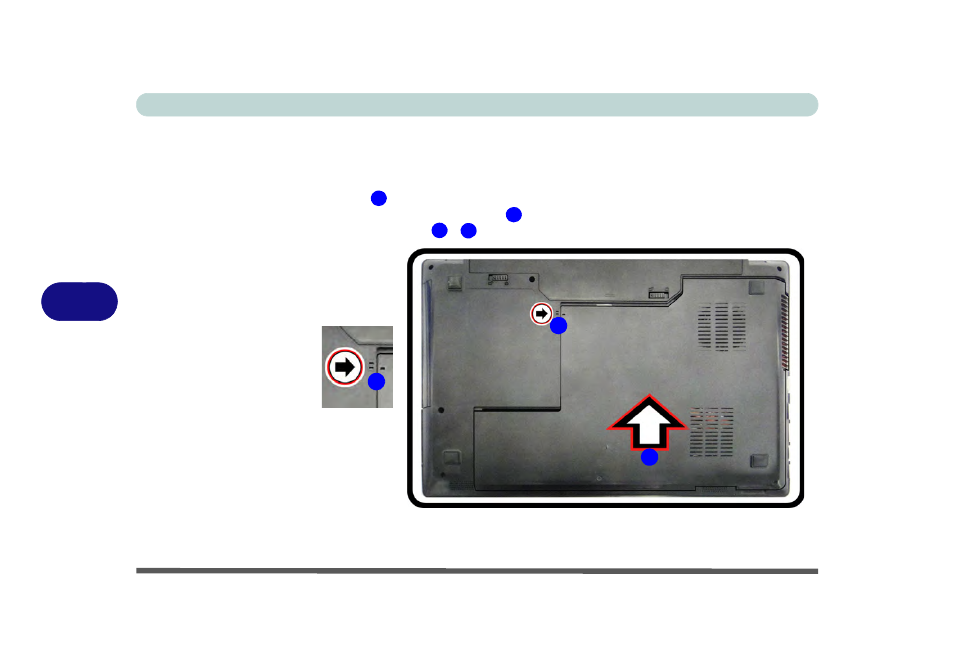

Reinsert the component bay cover by placing it on the bottom case assembly,
applying downward pressure and by sliding it on to the case in the direction of
arrow .

2.

Make sure the case markers

line up.

3.

Replace screws

-

(

Figure 6 - 2 on page 6 - 4

) and battery (see page

6 - 3

).

Figure 6 - 4

Replacing the

Component Bay

Cover

(Model A)

1

2

1

3

2

1

2
