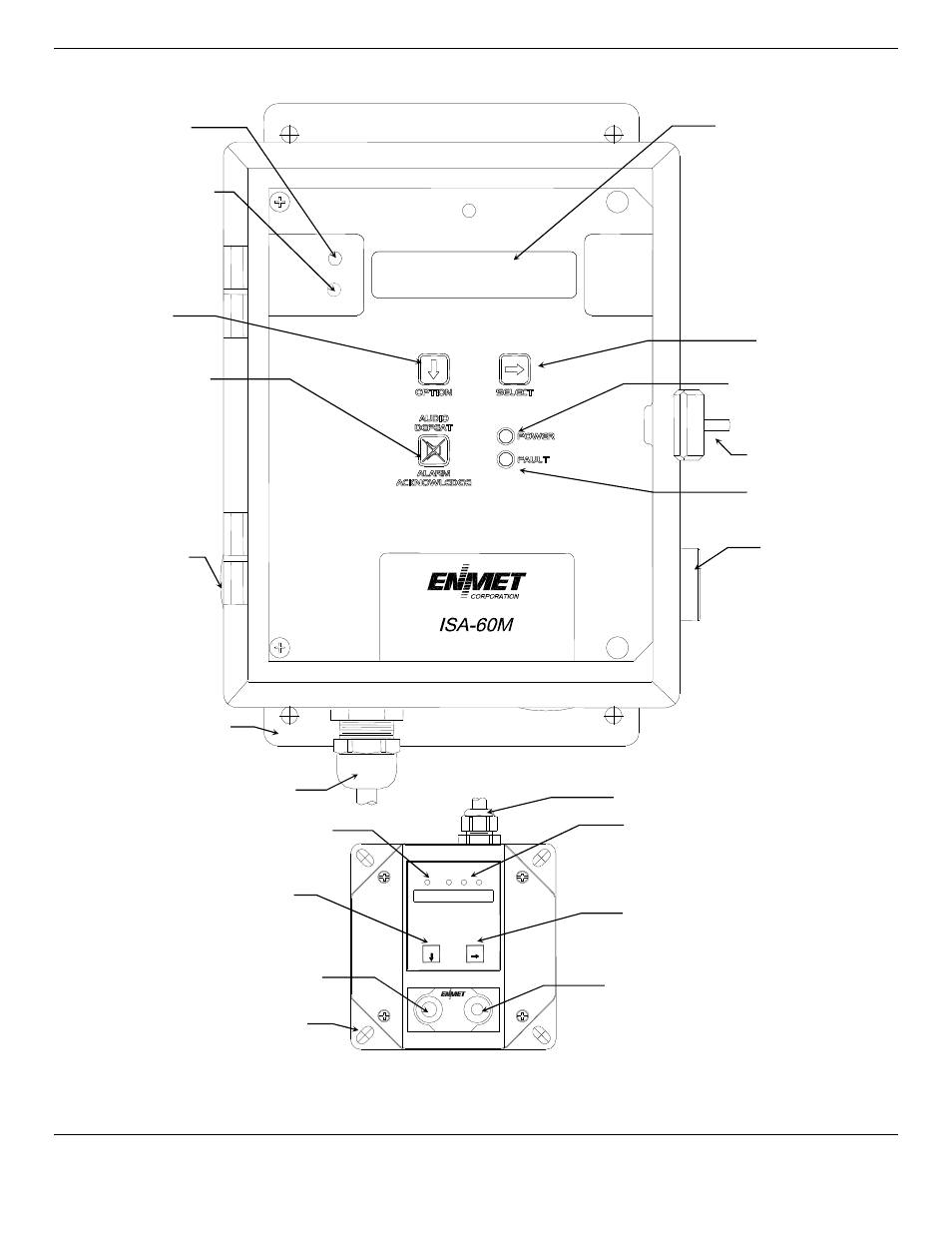

Figure 1: ISA-60M & MRI-5175 External Features
O
2
%
O
2
%
Display
Front Cover Latch
Audio Alarm
Fault LED
SELECT
Switch
Power LED
OPTION
Switch
Alarm Defeat /
Alarm Acknowledge
Switch
Visual Alarm
O
2
Mounting Flanges
2 places
Visual Alarm
( If additional MRI-5175
remote sensors are
connected)
Punch out/Hole Plug
For External Wiring
2 places
Strain Relief
Alarm 2
Strain Relief (Nickel Plated Brass)
Power/Fault LED
Audio Alarm
(Optional)
Visual O2
Alarm LED
MENU
Switch SELECT
Switch
Sensor
Mounting Flanges
4 places
Menu Select
SN: -XXXX 88
Power/Fault XXX XXX XXX
%O2 by vol.
