ENMET ISA-60M with MRI-5175 User Manual

Page 21

ISA-60M

ENMET Corporation

5.2.9 Failsafe Configuration

The

ISA-60M

is factory set in a failsafe configuration. This means that if power is disconnected to the unit, or the relay

fails to properly engage, it fails in such a way that it is in the alarm position.

ENMET

recommends leaving the relay in a

failsafe configuration. However, relay 1 – 5 can be re-configured by using the following procedure.

To change a relay failsafe configuration you must enter the maintenance menu. Press the

OPTION

switch until “Enter Maint

Menu” is displayed then press

SELECT

switch for the Enter Password menu. Enter the valid password as described below.

In the "

Enter Maint Menu

" position

Press the

SELECT

switch "

Enter Password

❚

" is displayed. Press

SELECT

switch once, to move cursor to next digit,

this will be the first digit of the password.

In the

❚

000

position, the underline cursor is under the left digit.

Press the

OPTION

switch to change the left digit; select the correct digit.

Press the

SELECT

switch, which locks the digit in place and moves the cursor one digit to the right.

Continue this process until the four-digit password is complete. When a valid password is inserted in this manner, the
display is transferred to the "

Calibration

" portion of the menu. If an invalid password is inserted you are returned to the

Enter Maint Menu display.

After entering a valid password:

Press the

OPTION

switch until “Relay Failsafes” is displayed

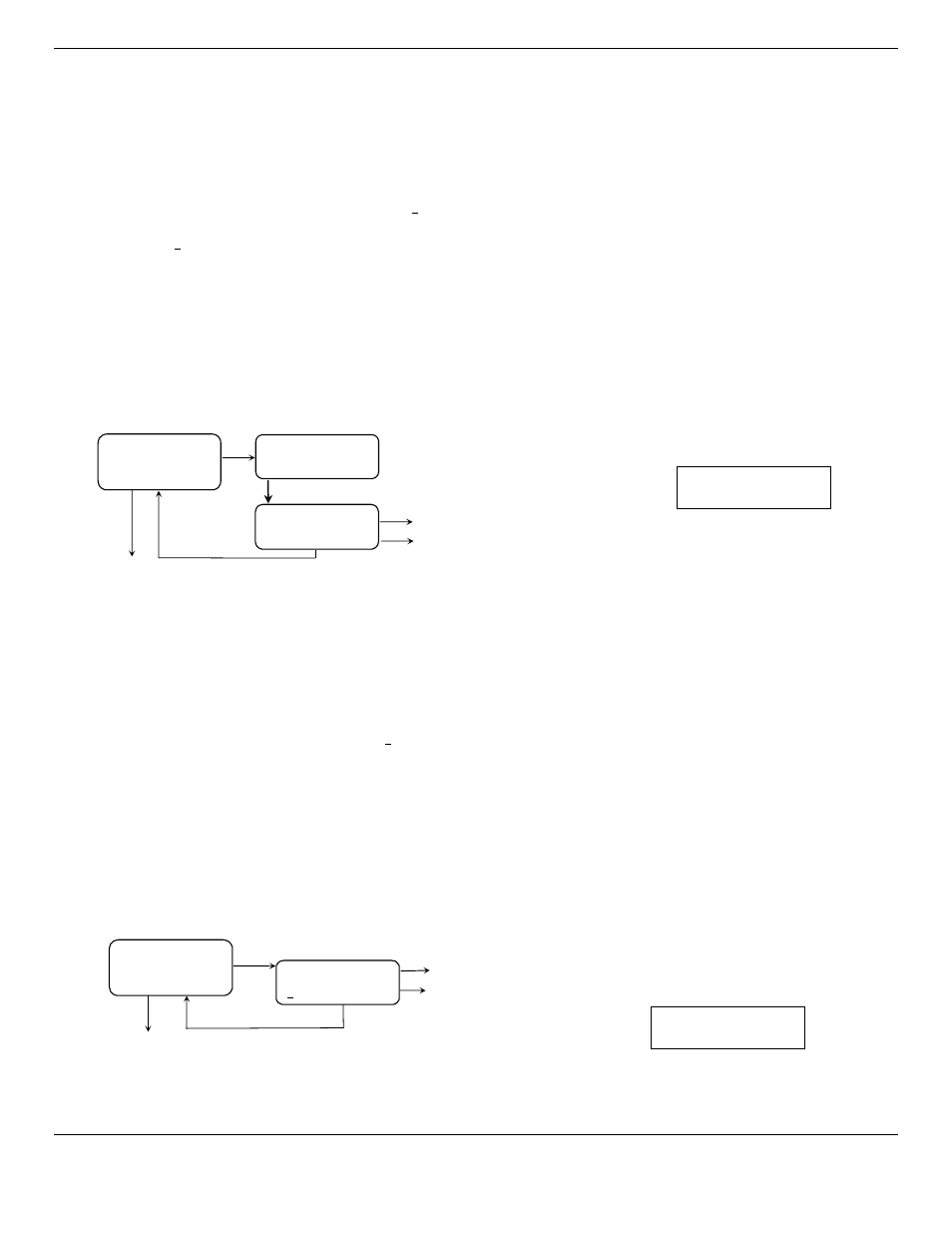

Example: Set Relay Failsafe Configuration Flow Chart

5.2.10 Set New Password

To change the password, you must enter the maintenance menu. Press the

OPTION

switch until “Enter Maint Menu” is displayed

then press

SELECT

switch for the Enter Password menu. Enter the valid password as described in Section 5.2.1.

To set a new password, after inserting a valid password,

Press the

OPTION

switch until; "

Set New Password”

is displayed.

Press the

SELECT

switch; "

Password

❚

1270

" is displayed, with the underscore cursor under the left digit.

Use the

OPTION

switch to change the left digit, when the desired digit is displayed.

Press the

SELECT

switch to lock the digit in place and move the cursor one digit to the right.

When all four digits of the new password have been selected, "

Set New Password

" is displayed.

Record the new password; without it, the maintenance menu cannot be reentered once you exit the Maintenance Menu. If the
password is lost, call

ENMET

customer service personnel.

From the "

Password XXXX

" position,

Press the

SELECT

switch to return to Set New Password section.

Press the

OPTION

switch; to continue to "

exit MAINTENANCE Menu

Example: Set Password Flow Chart

MAINTENANCE MENU

Set New Password

Password

❚ 0000

Changes digit indicated by underscore cursor

Locks underscored digit and moves cursor to next digit

O = Press Option
S = Press Select

MAINTENANCE MENU

Relay Failsafes

Changes

Failsafe setting from ON to OFF

Continue pressing

ELECT

to cycle through all 5 relays

Pressing

PTION

changes Failsafe setting from ON to OFF

R: 1 Failsafe ON

Relay Failsafes

R: 2 Failsafe

OFF

O = Press Option
S = Press Select
