ISA-60M ENMET Corporation
7

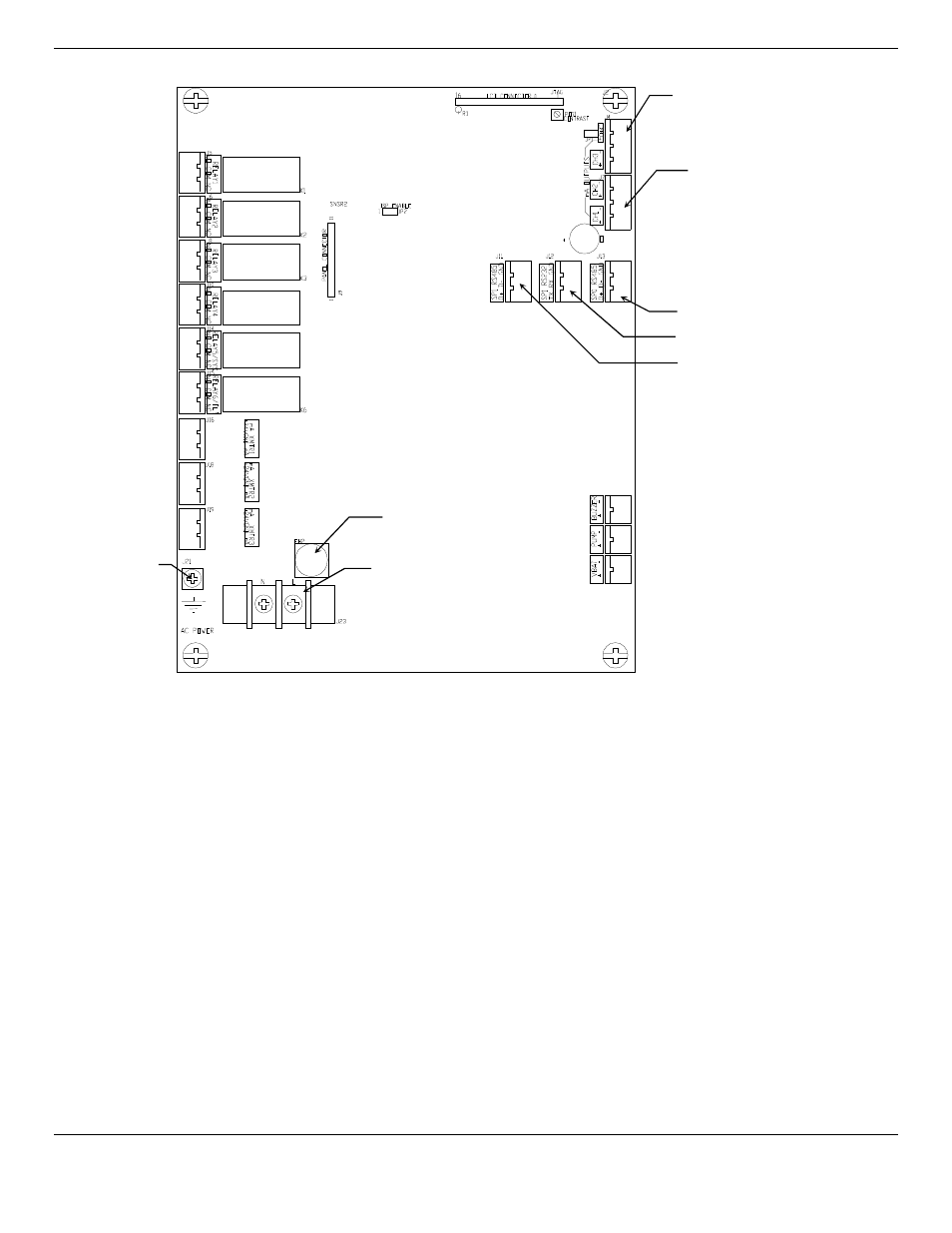

Figure 5: ISA-60M Relay and Input and Output Terminals
Relay 1
Channel 1
Alarm 1
Relay 2
Channel 2
Alarm 1
Relay 3
Channel 3
Alarm 1
Relay 4
Channel 4
Alarm 1
Relay 5
Channel 1-4
Alarm 2
Relay 6
Ch 1-4 / System
Fault
J16 Detector Primary
Channel 1
J18 Connector
4-20mA Input
Channel 2
J19 Connector
4-20mA Input
Channel 3
Connector 2 (J4)
Channel 3 & 4
4-20mA Output
Connector 1 (J7)
Channel 1 & 2
4-20mA Output
Connector RS485
Connector RS232
Connector RS485
Power Input, Terminal J23
L-Line
N-Neutral Ground Screw J21
Fuse Holder FH2
