ISA-60M ENMET Corporation
22
7.0 Technical Data and Specifications
Electrical Power
15 Amp fused branch circuit
100-240 VAC
0.9 A
50/60 Hz
Board Mounted Fuse FH2, 0.630A, 5 x 20mm
Storage and Transport
(to also be included on shipping box)
Temperature: -20
°
to +60
°
C (-4
°
to +140
°
F)
preferred 0
°
to +20
°
C (32
°
to 68
°
F)
Relative Humidity 10-99% RH, non-condensing
Atmospheric Pressure 20 to 36 inHg (68 to 133 kPa)
Operation
Temperature: 0
°
to +40
°
C (32
°
to +104
°
F)
Relative Humidity 10-99% RH, non-condensing
Atmospheric Pressure 20 to 36 inHg (68 to 133 kPa)
Mechanical
ISA-60M
Dimensions: 11 x 9 x 6 inches (4.3 x 3.5 x 2.4 cm)
Weight: 8 lbs (3.6 kg)
Strain relief: 5 – 12 mm OD
Material: Engineered thermoplastic with hinged front cover
Non-magnetic hardware
MRI-5175
Dimensions: 5 x 5 x 4 inches (2 x 2 x 1.6 cm)
Weight: 2 lbs (0.9 kg)
Strain relief: 5 – 12 mm OD
Material: Fiberglass-reinforced polyester with Non-magnetic
RFI/EMI shielding and hardware
Outputs
ISA-60M
Relays: SPDT
Resistive Load Inductive Load
10A at 110 VAC 7.5A at 110 VAC
10A at 30 VDC 5A at 30 VDC
Analog: 4-20 mA x 3
Digital: RS-232 – Modbus
RS-485 – Modbus
Audio: 90 db at 2 ft
MRI-5175
Analog 4-20 mA
Digital: RS-485 – Modbus
Audio: 90 db at 2 ft

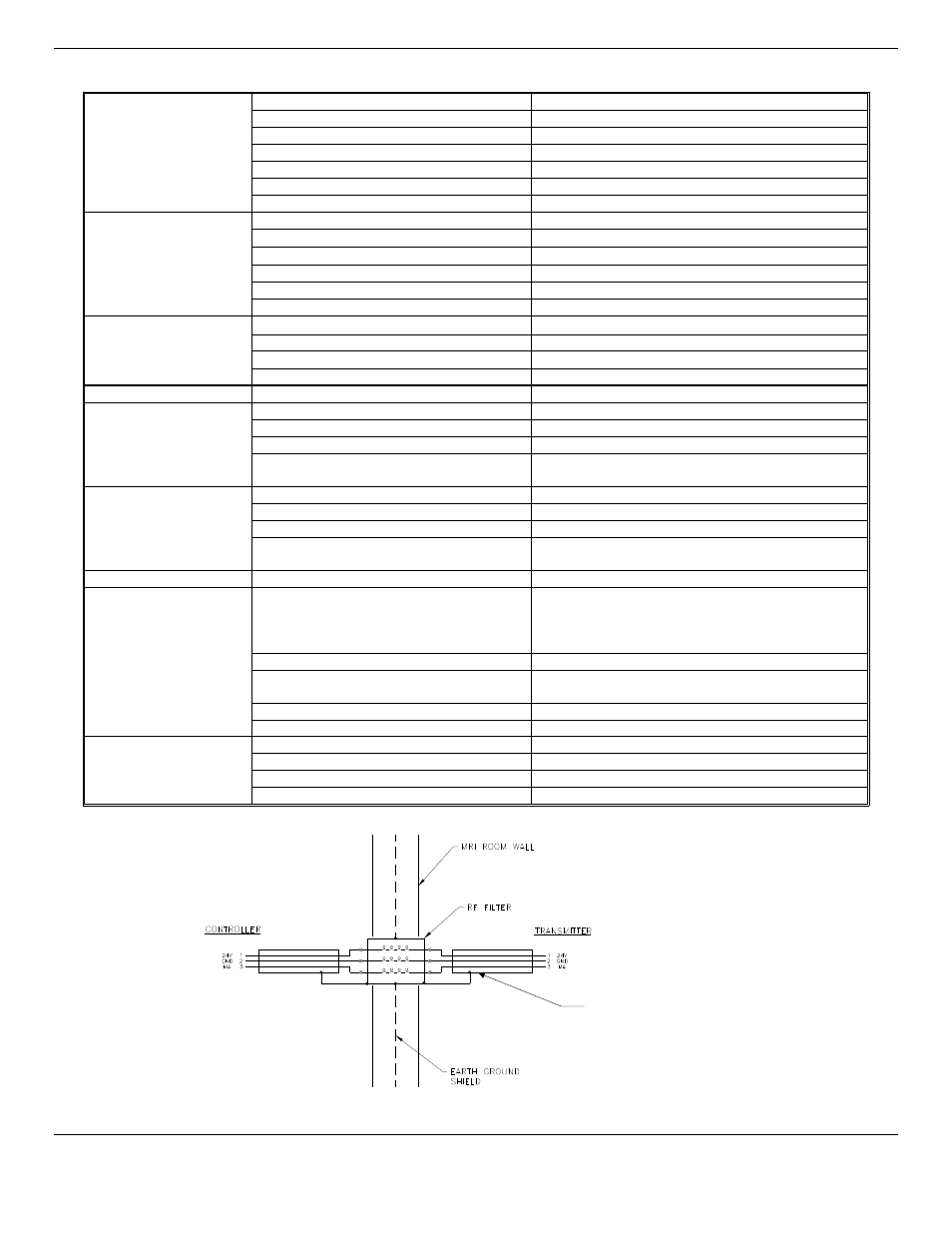

Example of controller to MRI-5175 wiring
N OTE : All specifications stated in this manual may change without notice.
Shielding wire to Ground Screw
of MRI-5175 enclosure
See Figure 4
