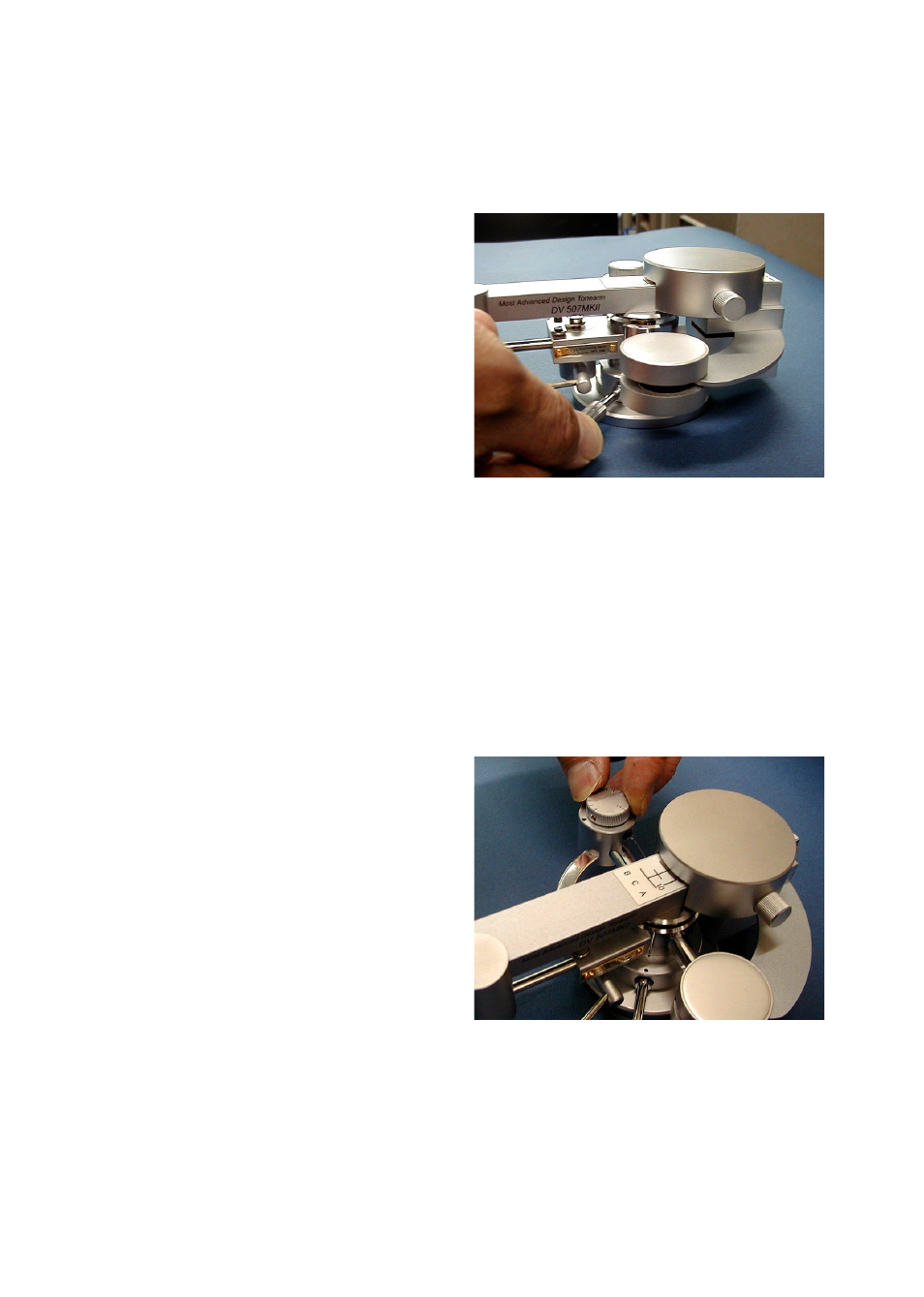

6-6. Arm height (VTA) adjustment
(1) Adjust the arm height approximately by loosing the height adjustment screw on
the side of the arm mount and sliding the whole arm up or down.
(2) Tighten the height adjustment screw.
(3) Loosen the height adjustment lever
by turning anticlockwise.
(4) You can then adjust the arm height
more precisely by moving the height
adjustment lever left and right.
(5) Set the cartridge on the record and
set arm height so that the headshell top
is parallel with the surface of the record
by moving the height adjustment lever.
(6) Lock the lever to the optimum position by turning the lever clockwise - do not
overtighten, simple finger pressure is enough.
(7) 7 mm of height adjustment is available using this lever - larger changes should
be done using the height adjusting screw.
6-7 Anti-skate adjustment
Normally the anti-skating dial should be set to the same value as the tracking
force.
However actual requirements are
dependent on a number of variable
factors such as the shape of the stylus
tip or record material itself.
When you use a cartridge with a
line-contact stylus, you will get better
results by increasing the anti-skating
force a little.
If you notice left channel mistracks, reduce the setting, and if you notice the right
channel mistracks, increase the setting.
NOTE: The dial can be operated while playing the record.
