Dynavector DV 507 MKII tonearm - Manual (Page 3)

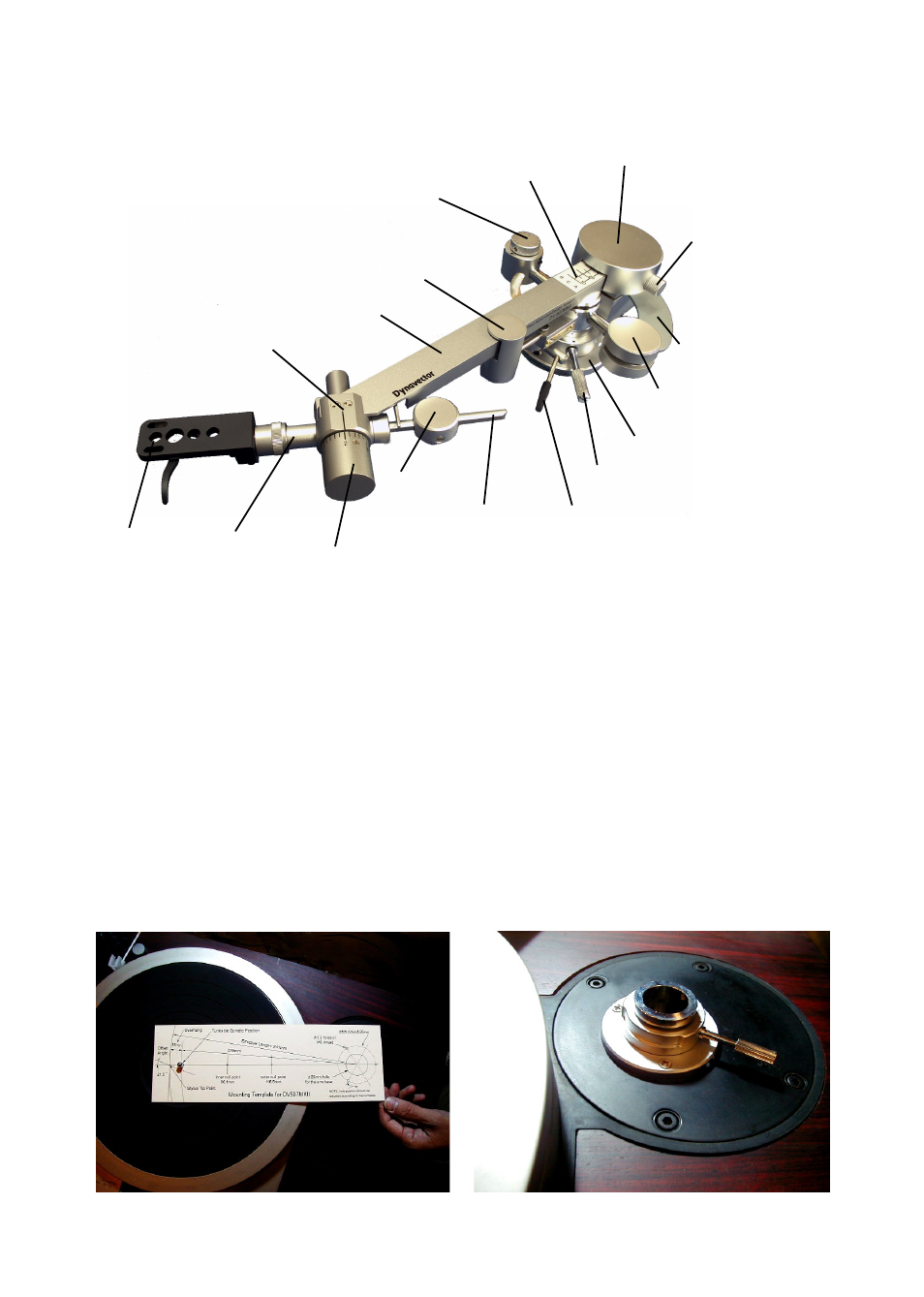

3. Parts identification
headshell sub arm
tracking force adjuster
sub arm bar
sub weight
arm head
main arm
arm rest
height adjusting lever
arm lift
damper magnet
damper plate
main weight
main weight
stopper
anti-skating divice
main base
balancing scale
4. Mounting to the turntable
Use the supplied mounting template for the DV507MKII. Drill a 30mm diameter
hole on the arm board of the turntable 226 mm away from the turntable spindle
center.
Temporarily place the tonearm into to this hole. Adjust the angle of the tonearm
by rotating the arm base of the tonearm in the hole so that the desired position of
the tonearm at rest is achieved. Once found mark this position with a sharp point
through the three arm-base mounting holes. Drill these holes as appropriate for
the supplied woodscrews or bolts and fix the base to the turntable.
