SET LINE IN
1. Where the pre-amplifier has 2 sets of output terminals,
use one set to connect it to the power amplifier for the
front speakers using the usual RCA phono inter-connects.
Then use the second set of output terminals with similar
inter-connects to connect the pre-amp to the Line Input
terminal (10) of the Adp-3.
2. Where the pre-amplifier has only one set of outputs,
connect the output to the Line Input Terminal (10) of the
Adp-3 and the Line Input Terminal (11) to the power amplifier
to provide the signal for the front Speakers.
NOTE: the output signal from (11) which goes to the power
amplifier is not altered and is the same as that from the
pre-amp.
3. Put the LINE IN selector switch (9) in the lower position.
4. Using speaker cable connect the sub-speakers to the
Adp-3 Sub-Speaker Terminals (13) observing the correct
polarities.
5. When the above connections have been made and
checked, insert the AC power cord (supplied) into the power
socket at (14).
Then follow the instructions under “Listening Adjustments” on
page 8.
Turn off the AC power to all stereo components and unplug the AC power cords from the wall socket.
Then:

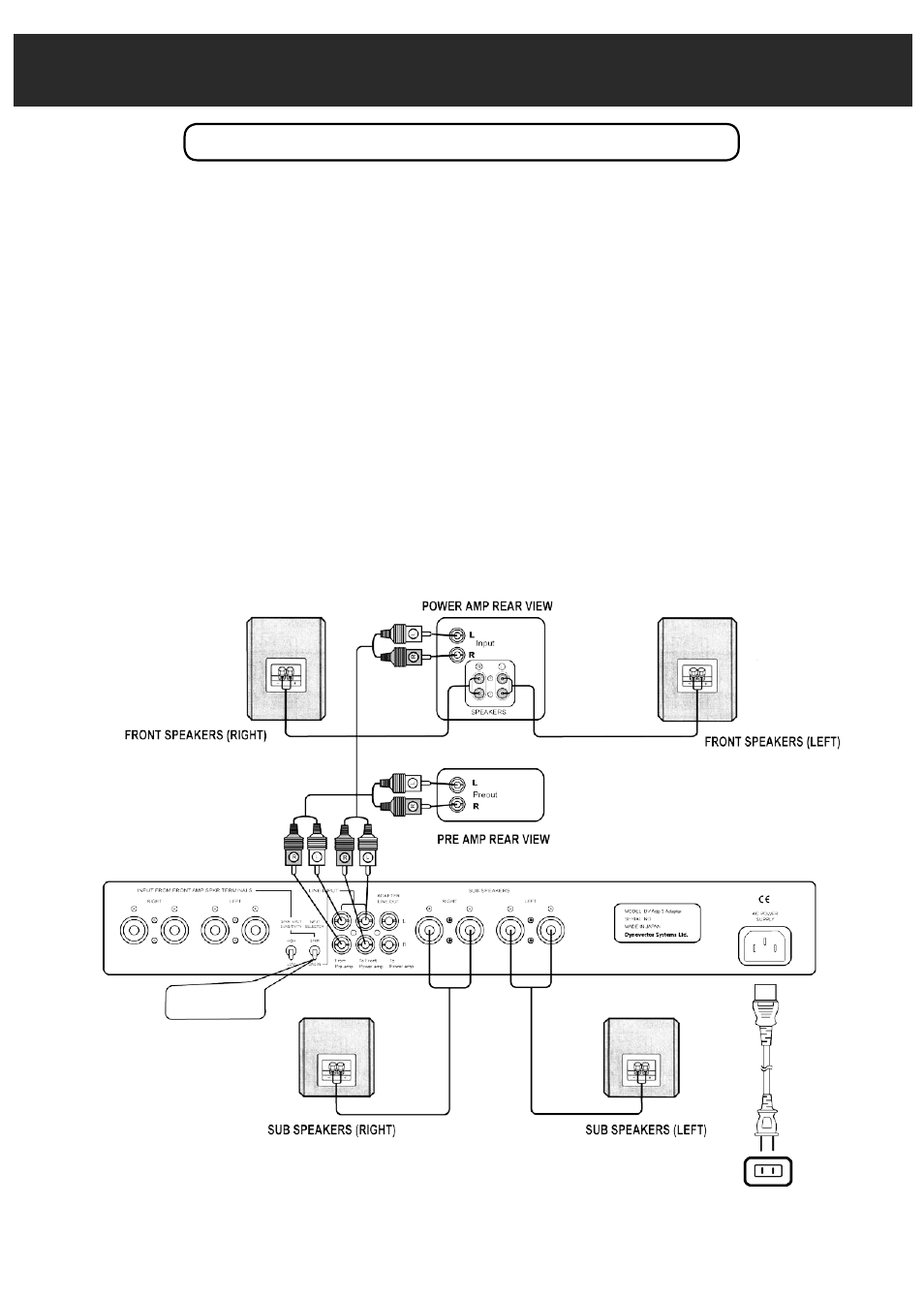

Installation Method (2)
Using a Separate Pre and Power Amplifier
