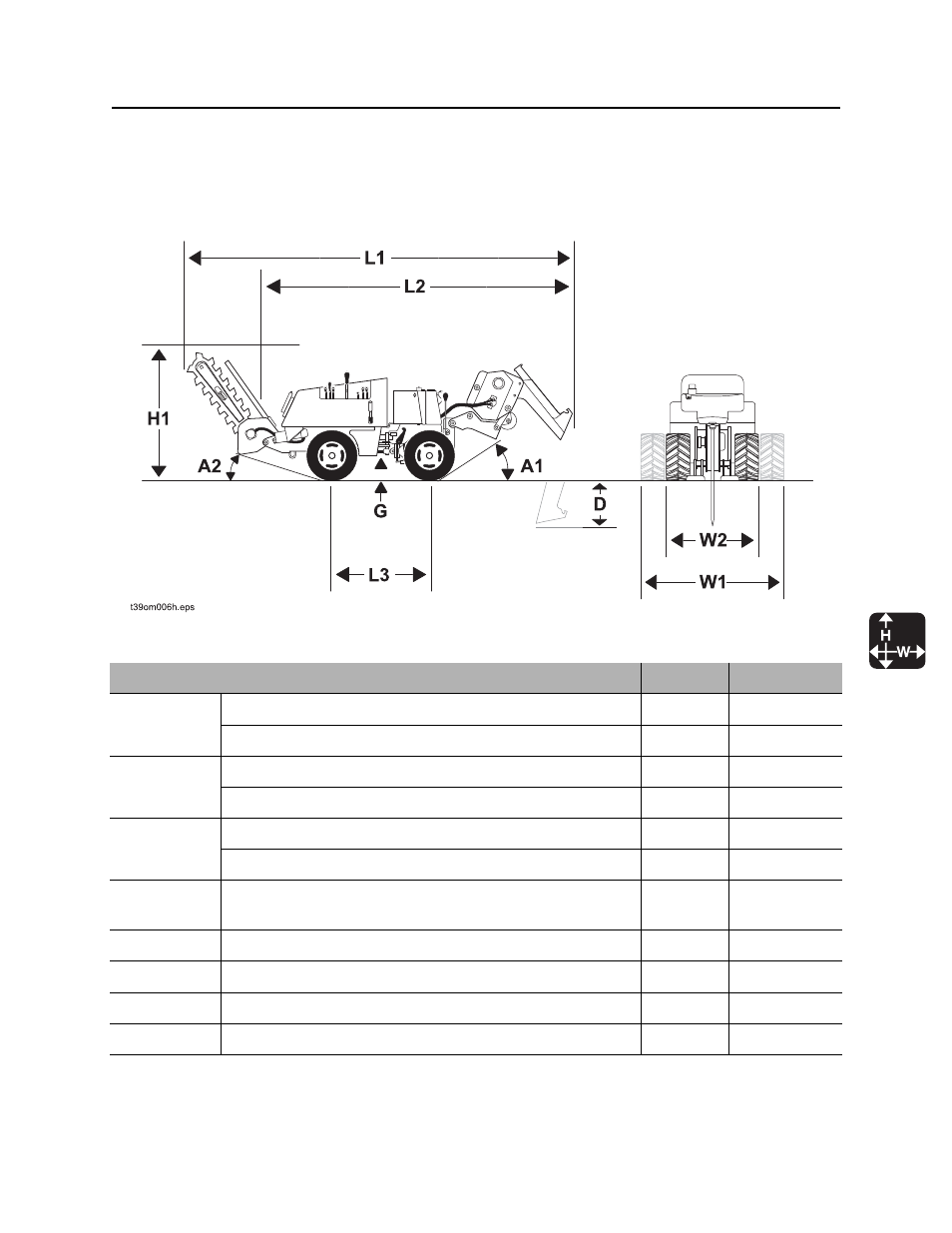

Dimensions * U.S. Metric
H1 Height from top of raised plow 58 in 1.5 m
Height from top of 2’ (610 mm) boom and chain 63.5 in 1.6 m
A1 Angle of departure without blade 39° 39°
Angle of departure with 2’ (610 mm) blade 17° 17°
A2 Angle of approach with trenching attachment 21° 21°
Angle of approach without trenching attachment 22° 22°
L1 Maximum length plowing with trenching attachment and 3’
(915 mm) boom 151 in 3.8 m
L2 Maximum length plowing without trenching attachment 118 in 3.0 m
L3 Wheelbase 46 in 1.2 m
W1 Width, transport (23 x 10.50 dual tires) 56 in 1.4 m
W2 Width, transport (26 x 12-12 tires) 48.5 in 1.2 m
