FX25 Operator’s Manual
Controls - 25
Machine
CMW
Machine

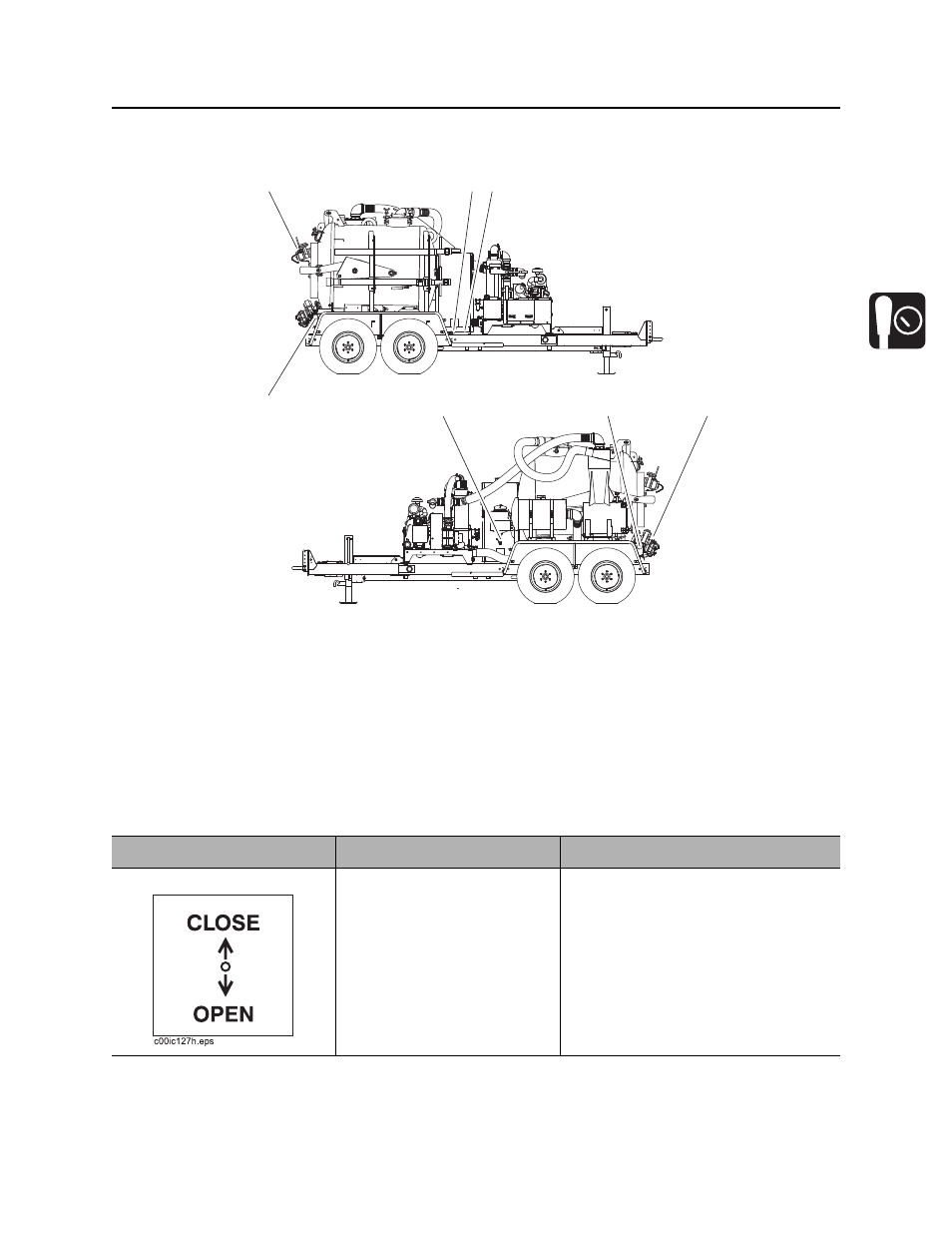

1. Inlet valve
2. Water tank supply valve
3. Water tank drain
4. Drain/Outlet valve
5. Reverse flow gauge (optional)
6. Antifreeze tank supply valve
7. Vacuum gauge
Item Description Notes
1. Inlet valve To close valve (stop suction),
rotate up.
To open valve (start suction),
rotate down.
NOTICE: Do not idle engine with inlet
valve closed.
1 1 22
77 44
33
66 55
j32om005h.eps j32om005h.eps
