FX25 Operator’s Manual
Controls - 21

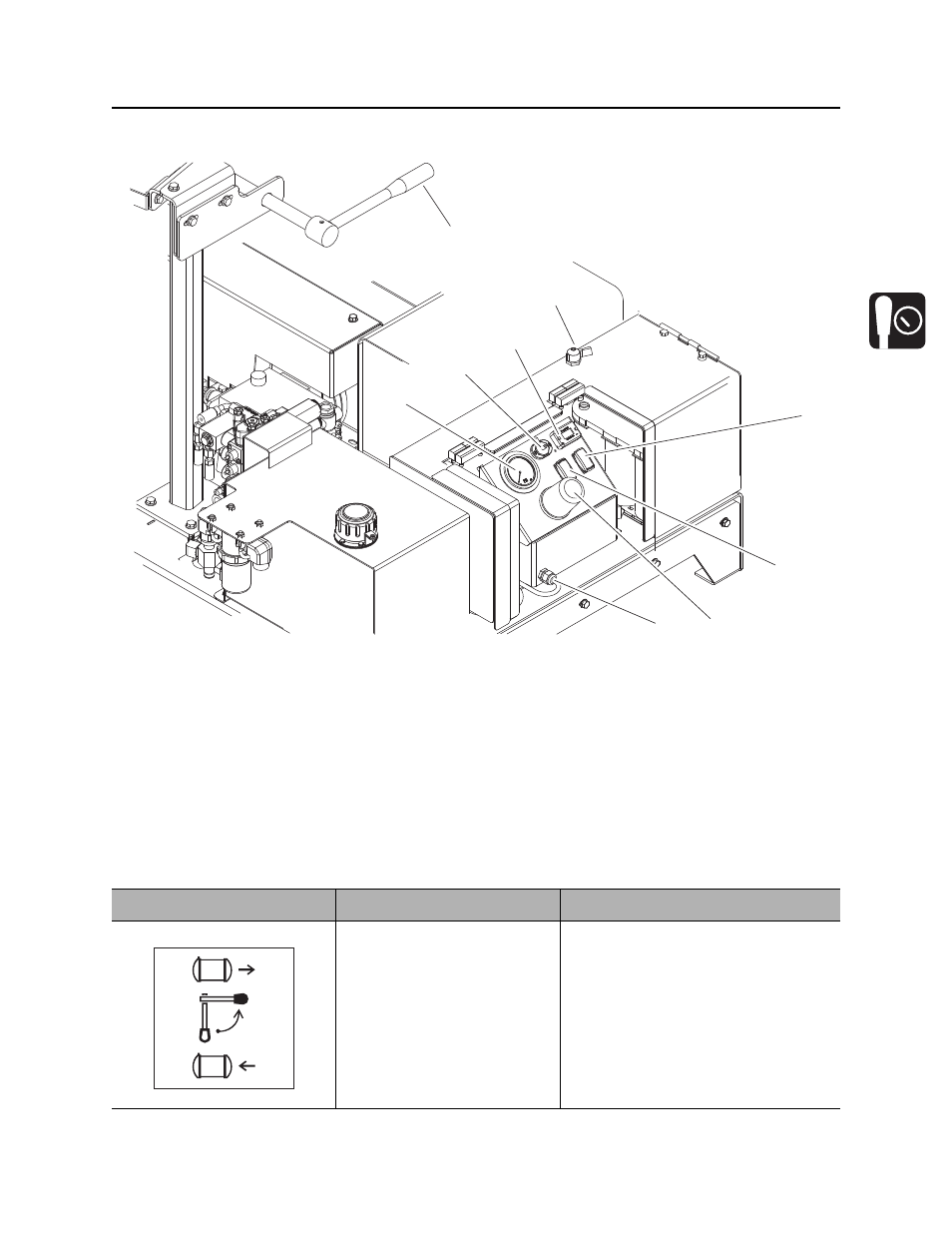

Operator Station
CMW
Operator Station
1. Flow direction control (optional)
2. Water pressure gauge
3. Auxiliary outlet
4. Hourmeter
5. Battery disconnect switch
6. Hydraulic function switch
7. Water pressure switch
8. Water pressure control
9. Tethered tank control outlet
Item Description Notes
1. Flow direction control To operate in reverse flow
mode, turn counterclockwise.
To operate in vacuum mode,
turn clockwise.
Use optional reverse flow to unload
tank contents to another tank.
Operate in reverse flow mode only
when drain/outlet valve is open.
2 2
33
44
55
66
77
88 99
11
j32om004h.eps j32om004h.eps
c00ic605h.eps
