JT2020 Mach 1 Operator’s Manual
Controls - 37
Gauge Cluster
CMW

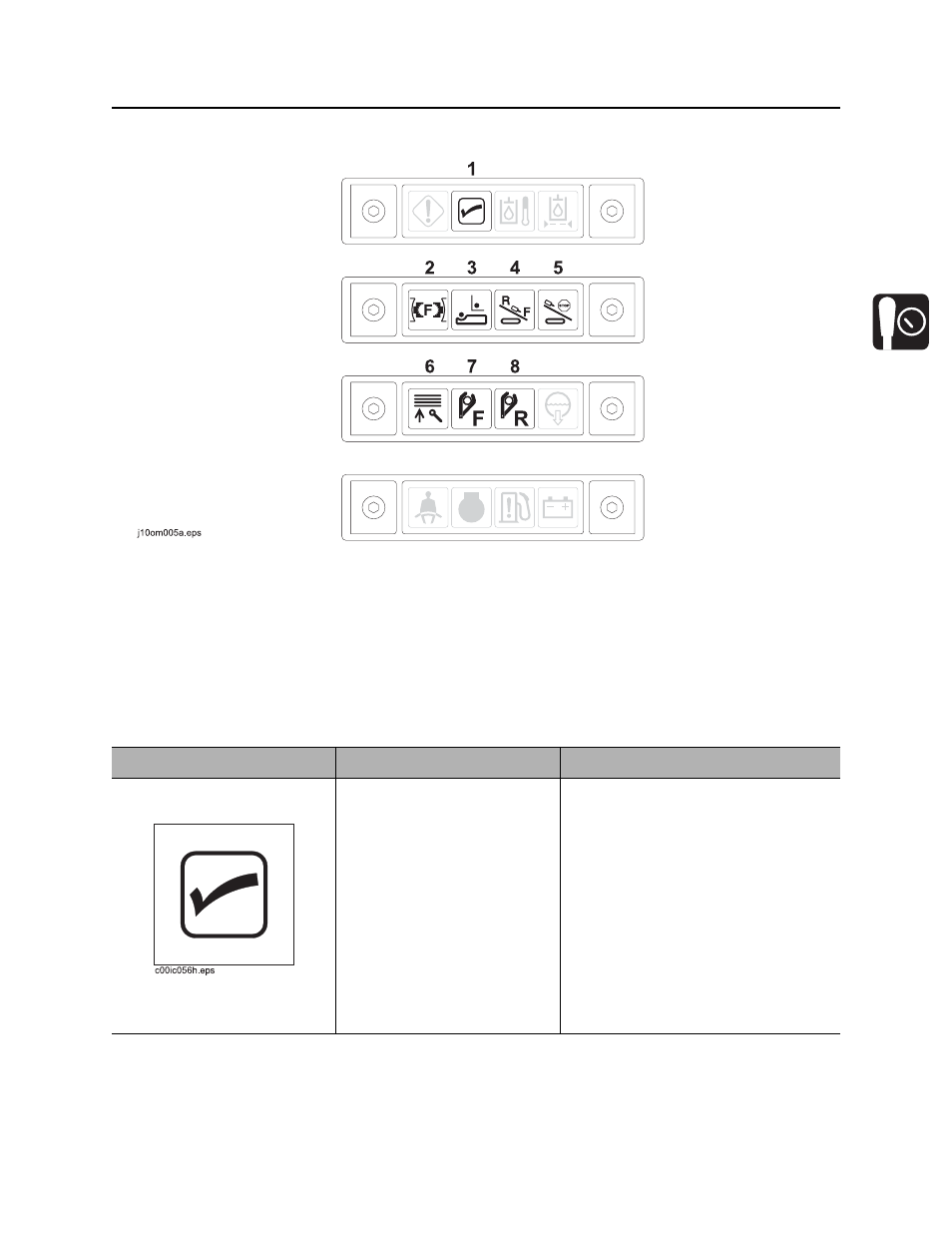

Pipeloading Status Indicators
1. Control cycle light (green)
2. Front wrench status indicator
3. Shuttle home status indicator
4. Carriage home status indicator
5. Rear stop status indicator
6. Pipe lift status indicator
7. Front pipe box status indicator
8. Rear pipe box status indicator
Item Description Notes
1. Control cycle light
(green)
If nothing is being controlled,
light should be off.
If system is waiting for an
action before starting cycle,
light should flash on and off.
If something is being
controlled, light should be on.
If control cycle is interrupted,
light should flash twice
quickly.
