Ditch Witch JT2020 User Manual
Page 171
Service - 170
JT2020 Mach 1 Operator’s
Manual
Startup/10 Hour
CMW

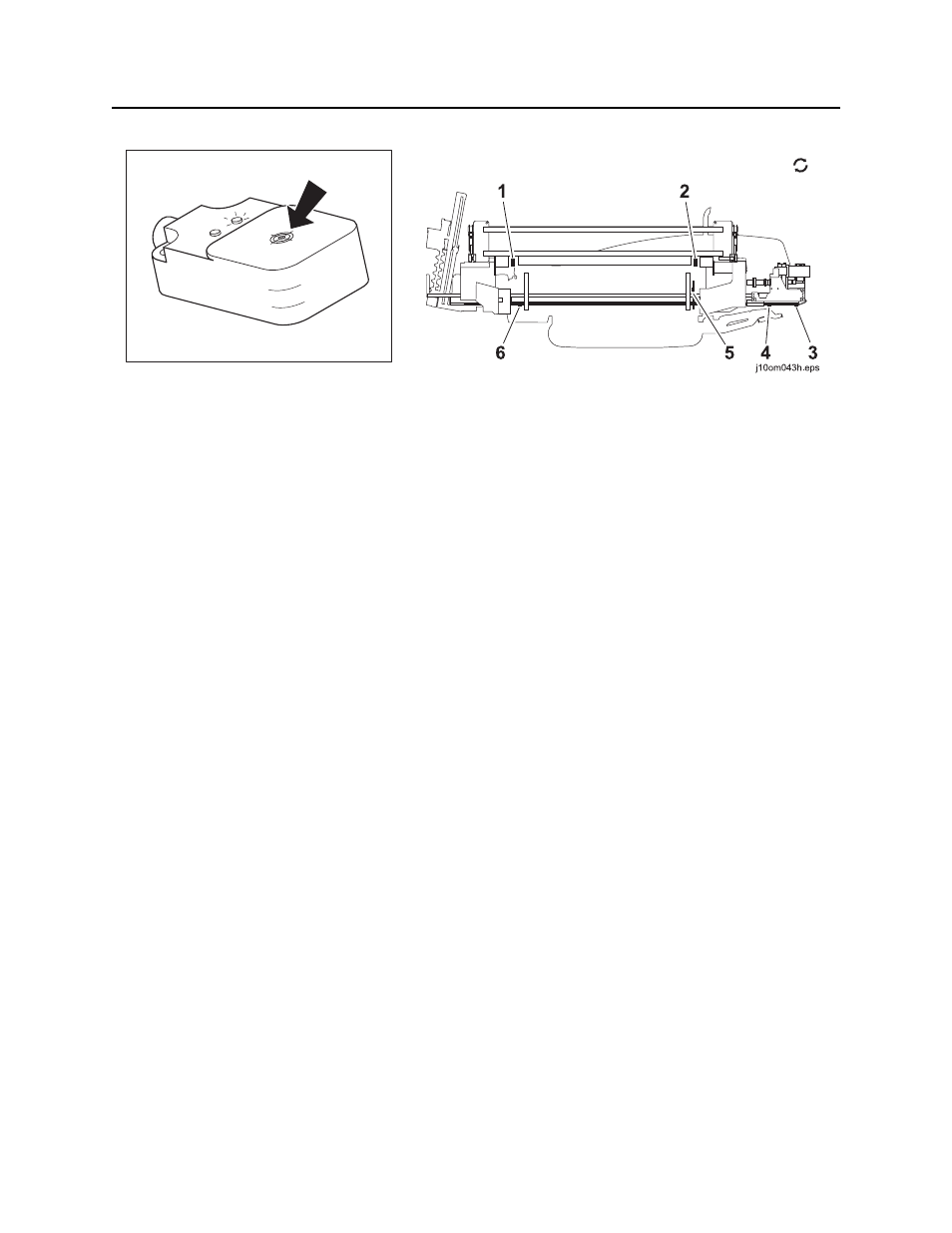

Test Control Switches
Check control proximity switches before startup and every 10 hours of operation and clean or replace as
needed.
To test:
1.
Turn ignition switch to the on position. Do not start engine.
2.
Place metal object above target on each switch.
3.
If yellow LED on switch lights, switch sensor is working.
1.
front pipe box switch
2.
rear pipe box switch
3.
rear stop switch
4.
rear home switch
5.
shuttle position switch
6.
front home switch
