Multi format imager assembly – Da-Lite Multi Format Imager User Manual
Page 9
9

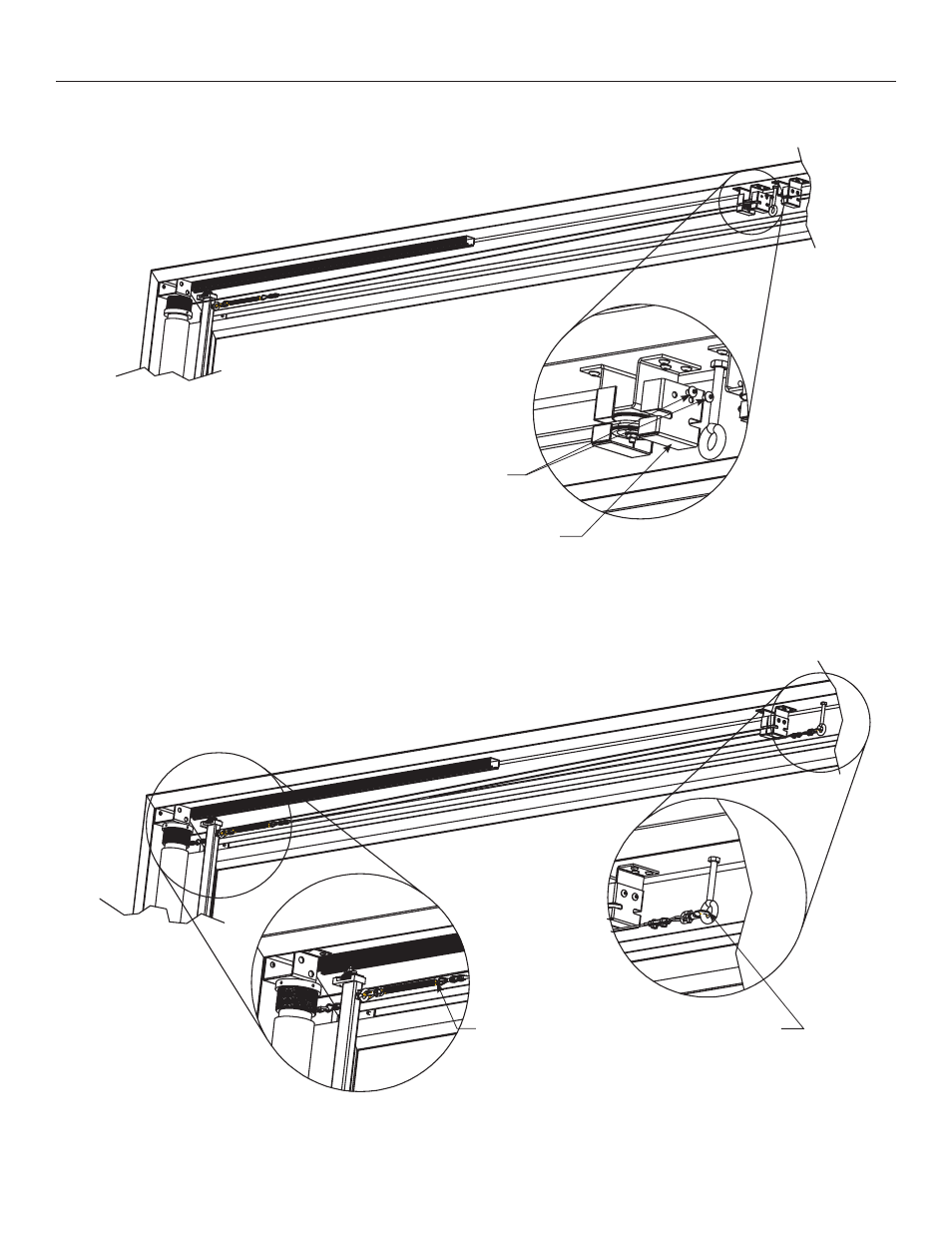

14. Assemble pinch guard bracket using (2) #10 X .375" long button head screws to opposite side of pulley bracket as shown in Figure 17.
Repeat this step for top right corner of screen.
15. Attach first side of safety cable to eyebolt in middle of screen. Attach other side of safety cable to the eyebolt in side of frame
in front of wind up pulley. Repeat this step for top right corner of screen.
Multi Format Imager Assembly
Figure 17
Figure 18
Fasten Screws Through
Pinch Guard Bracket
Into Pulley Bracket
Safety Cable
Passes Through
Middle Of Spring
Pinch Guard
Bracket
Clip Safety Cable
To Middle Eyebolt
