8

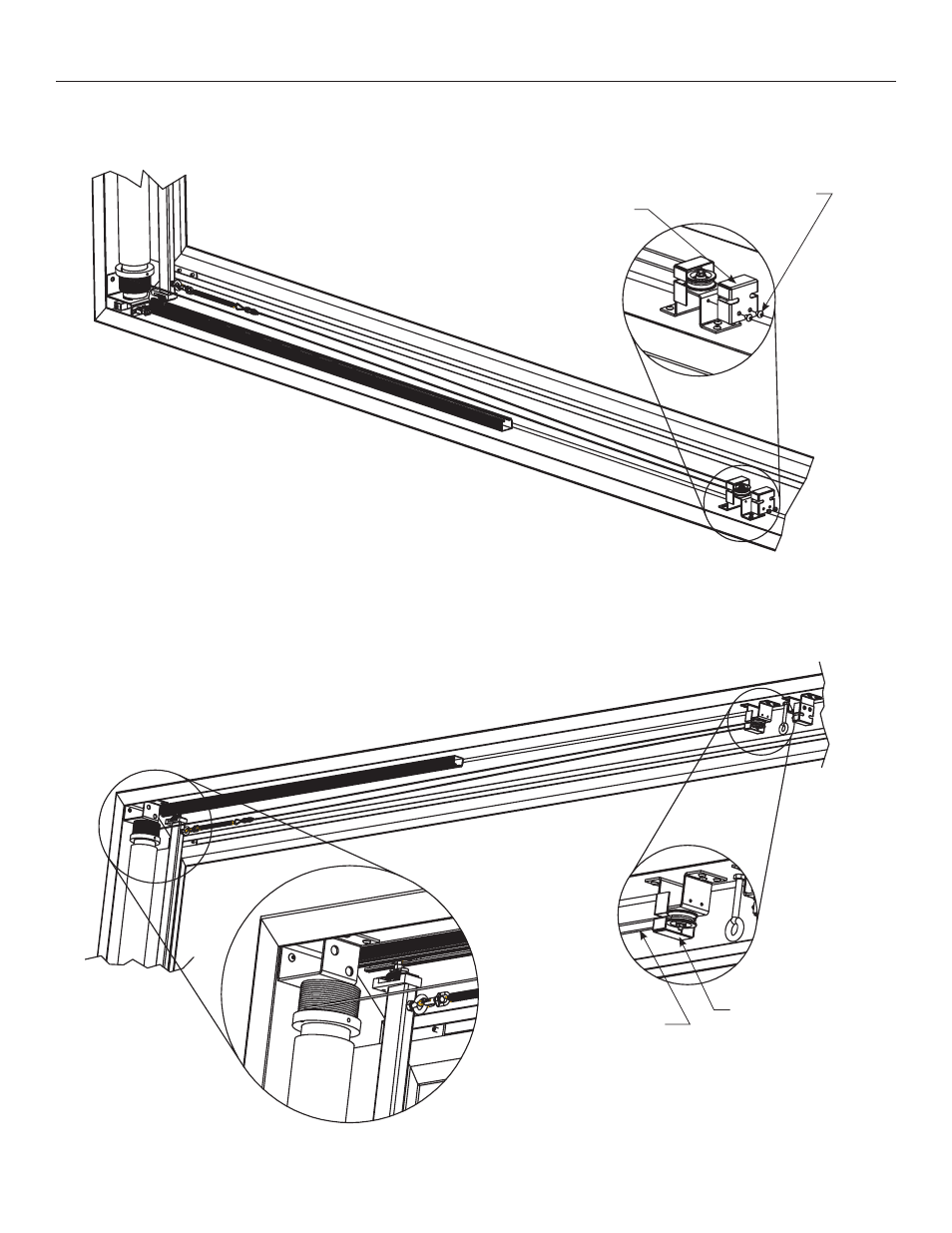

12. Assemble pinch guard bracket using (2) #10 x .375" long button head screws to opposite side of pulley bracket as shown in Figure 15.
Repeat this step for bottom right corner of screen.
13. Untape black steel wire tension cable from top left side assembly. Un-wire tie the cable assembly. This cable assembly will have an
extra safety wire ran through the spring. Run black steel wire tension cable down around pulley at end and bring back towards the
end. You may have to pull slightly hard and clip the tension cable to the eyebolt secured in the slat bar as shown in Figure 16.
Be careful not to pinch your fingers in the spring. Repeat this step for top right corner of screen.
Multi Format Imager Assembly
Figure 15
Figure 16
Fasten Screws Through
Pinch Guard Bracket
Into Pulley Bracket
Wrap Wire
Tension Cable
Around Pulley
Pinch Guard
Bracket
Pinch Guard
