Multi Format Imager Intermediate Stop Adjustment
Multi Format Imager Limit Travel Adjustment
1. To adjust intermediate stopping positions make sure both
masks are completely retracted into the frame. Press the left
mask ">" button. The mask will start to move outward. Press
the stop button at the position you want it set to. If you go
too far outward press the left mask "<" button and the mask
will retract back into the case.
2. Press the right mask "<" button. The mask will start to move
outward. Press the stop button at the position you want it set
to. If you go too far outward press the right mask ">" button
and the mask will retract back into the case.
3. Once both masks are at the desired stopping position. Press
and hold Preset 1, Preset 2 or Preset 3 button on remote for
10 seconds.
4. Repeat steps 1 thru 3 for other Preset locations.
1. To make limit travel adjustments you will need the 3-button
low voltage wall switch that was shipped with your masking
screen.
2. Locate the junction box cover on bottom frame assembly.
Remove two screws holding junction box cover on the
bottom of frame.
3. Unplug the 6P6C cable that goes from QEYE of primary
splitter to QAUX of secondary splitter as shown in Figure 29.
4. Unplug the IR eye end of the 6P4C cable that goes from the
QEYE of primary splitter to the IR eye.
5. To adjust travel of left mask. Plug the 6P4C cable into the
back of wall switch as shown in Figure 30. The wall switch
LED will blink green twice when the 6P4C cable is plugged in.

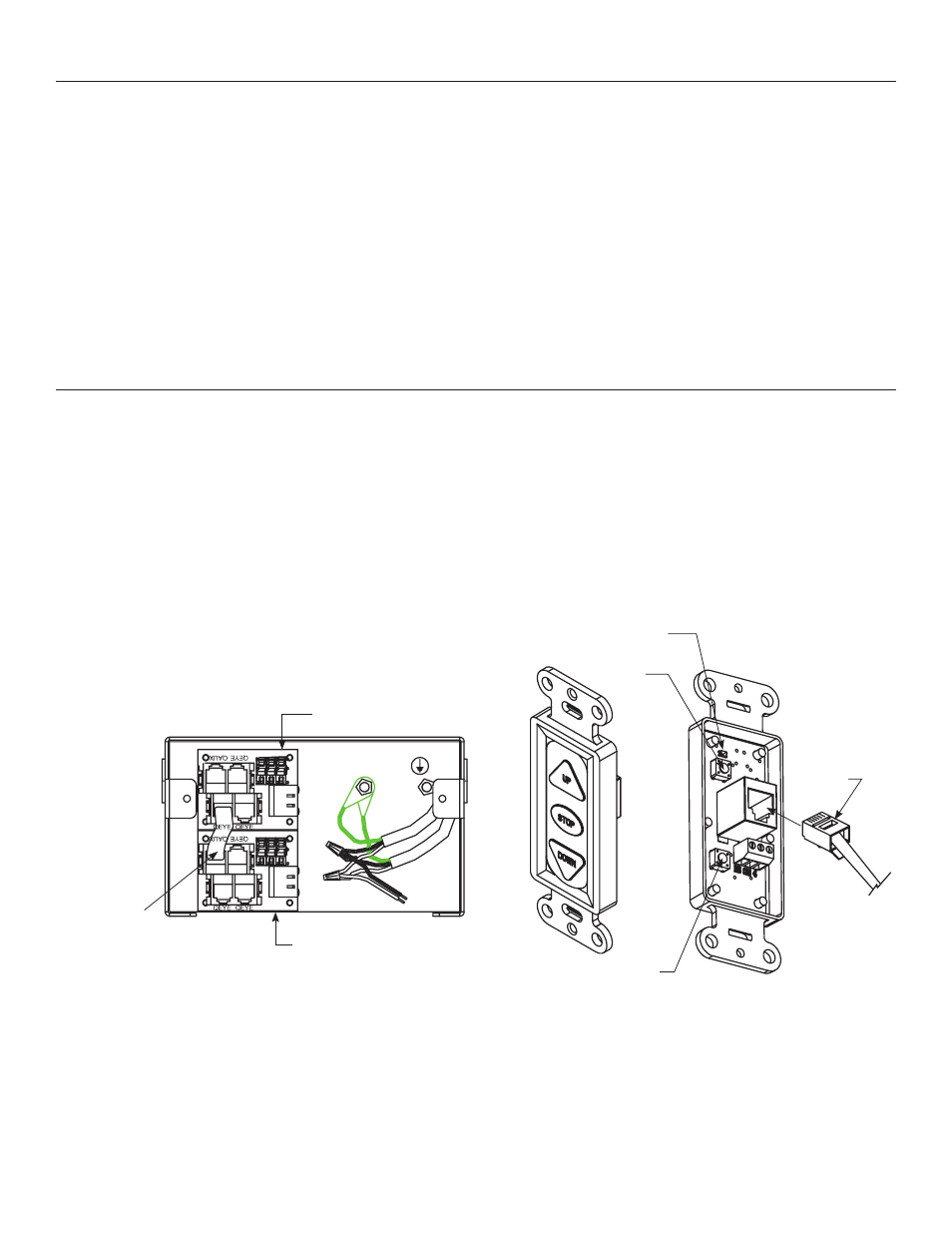

Figure 29
Figure 30
T6 From
QAUX To QEYE
"Down" Limit
Button
Switch
LED
"Up" Limit
Button
RJ-22
Jack
Primary Splitter
Secondary Splitter
