Frame Assembly:
1. In the hardware package, you will receive (12) #10 x .375" long button head screws and (8) #10 x .500" long button head screws
required for frame assembly.
2. Lay frame pieces out on floor or table as shown in Figure 1. The right and left side frame assemblies have the rollers and motors
attached to them. The bottom frame piece has (2) guide rails and the wiring junction box attached to it. The top frame piece will
have the (2) guide rails attached to it.
3. Assemble left side of frame to the top of frame. ( NOTE: Figure 2 is looking from the back of the frame.) The large black metal L
bracket will slide into the aluminum extrusion while the small L bracket will slide into the aluminum channel. When sliding the
bracket into the top frame assembly, guide the slat roller carriage into the top aluminum guide channel as shown in Figure 3.

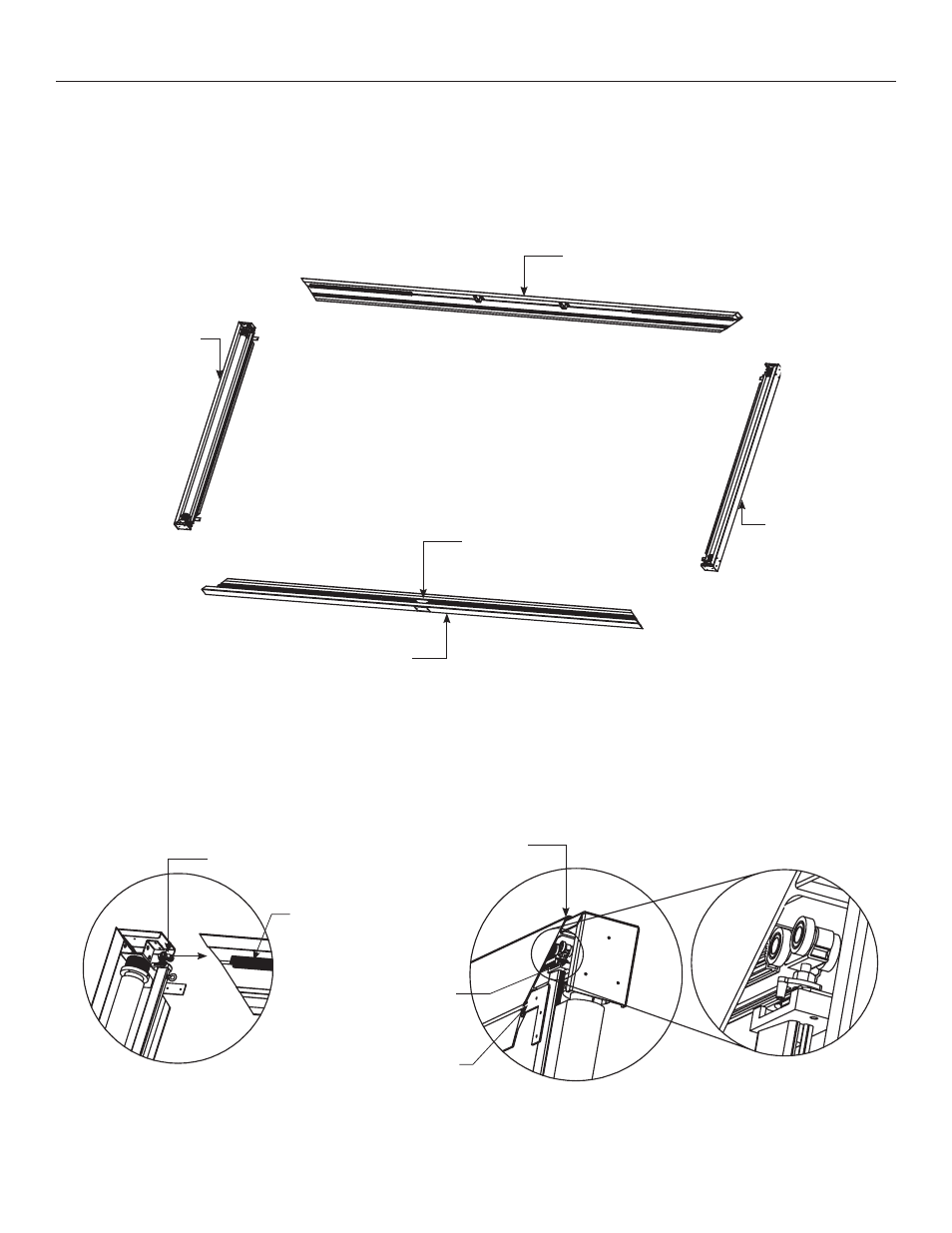

Multi Format Imager Assembly
Left Frame
Assembly
Right Frame
Assembly
Bottom Frame Assembly
Junction Box
Assembly
Top Frame Assembly
Figure 1
Small L
Bracket
Large L
Bracket Slat Roller
Carriage
Aluminum
Guide Channel
Make Sure Carriage
Rollers Are Seated
Properly in Aluminum
Channel
Figure 2 Figure 3
