Multi format imager assembly – Da-Lite Multi Format Imager User Manual
Page 5
5

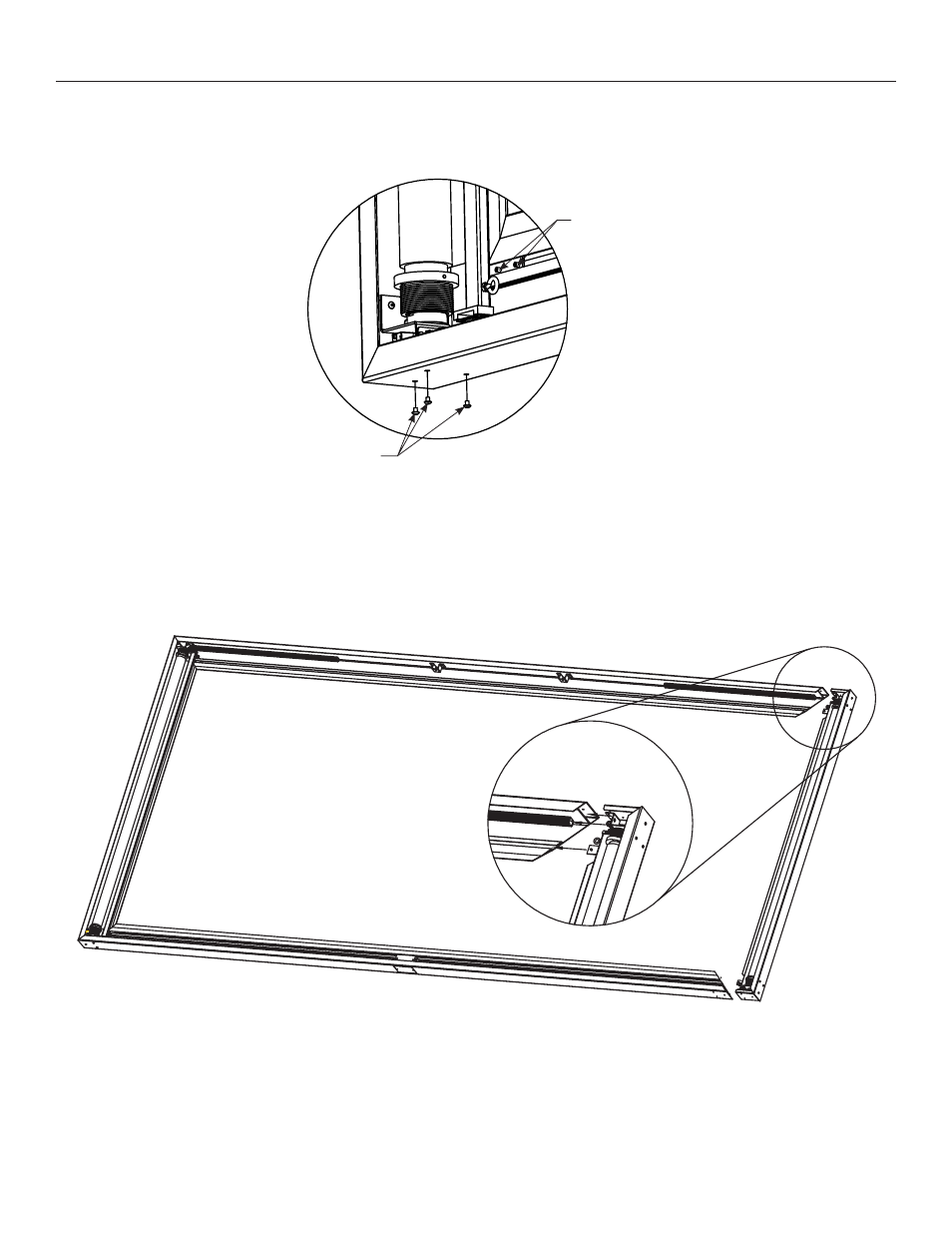

Tighten Set Screws
Until Front Surfaces
Are Flush
Fasten Screws
Through Bottom Frame
Assembly Into
Connecting Bracket
7. Finish assembling corner assembly by inserting (3) #10 x .375" long button head screws through bottom of frame into the corner
L connector bracket. Tighten two set screws on flat "L" bracket to line up the front faces as shown in Figure 10.
8. Assemble right side of frame to top and bottom frame assemblies. The two large black metal L brackets will slide into top and
bottom aluminum extrusion while the two small metal L brackets will slide into the aluminum channel. When sliding the right side
assembly into the aluminum extrusion, guide the slat roller carriage into the top and bottom guide channels as shown in Figure 11.
Multi Format Imager Assembly
Figure 10
Figure 11
