Network Configuration

Corinex AV200 Powerline Ethernet Wall Mount

When to use this filter:

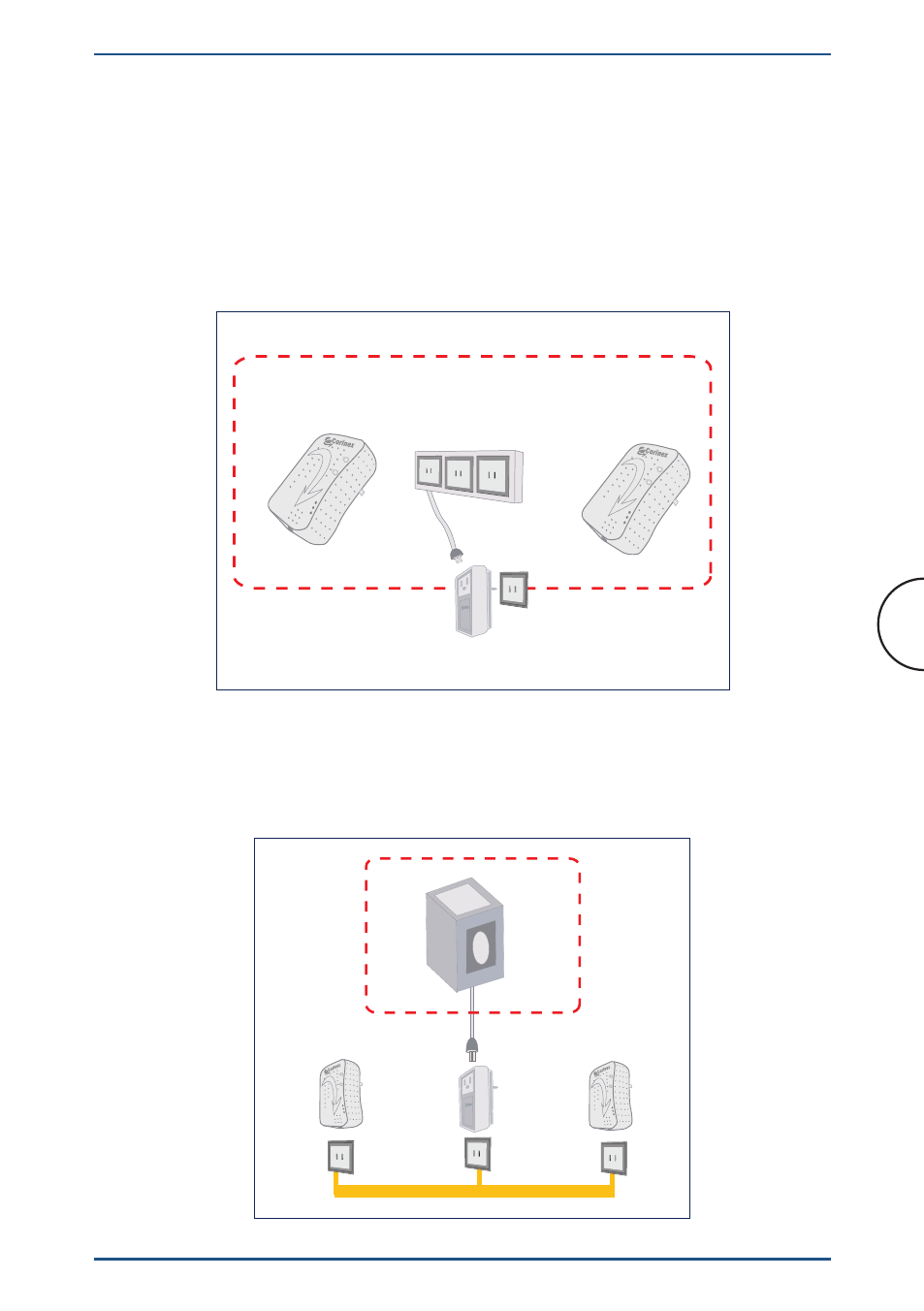

• When you want to isolate a Powerline test network from the rest of the
electrical grid, either because you don’t want the Powerline signal from the
test network to go out and disrupt other adapters, or because you want to

isolate this network from the noise, or other traffic, in the rest of the electrical

grid. This setup is illustrated in the picture below.

Powerline Domain

Corinex AV200 Powerline Wall Mount

Power Strip

Prefilter

No Powerline signal on this side

No Noise on this side

Corinex AV200 Powerline Wall Mount

AV200

Powerline

Wa

ll Mount

AP

VPI

Power

SYNC/RST

STANDB

Y

AV200

Powerline

Wa

ll Mount

AP

VPI

Power

SYNC/RST

STANDB

Y

• When you want to isolate the electrical noise produced by some household

appliance, because this noise falls in the PLC band and disrupts the signal from

the adapters. This setup is illustrated in the picture below.

Powerline Communication

Noisy Appliance

Corinex AV200 Powerline Wall Mount

Corinex AV200 Powerline Wall Mount

AV200

Powerline

Wall Mount

AP

VPI

Power

SYNC/RST

STANDBY

AV200

Powerline
Wall Mount

AP

VPI

Power

SYNC/RST

STANDBY
