www.austin-hughes.com

UM-IPM-03-Q214V3

P.9

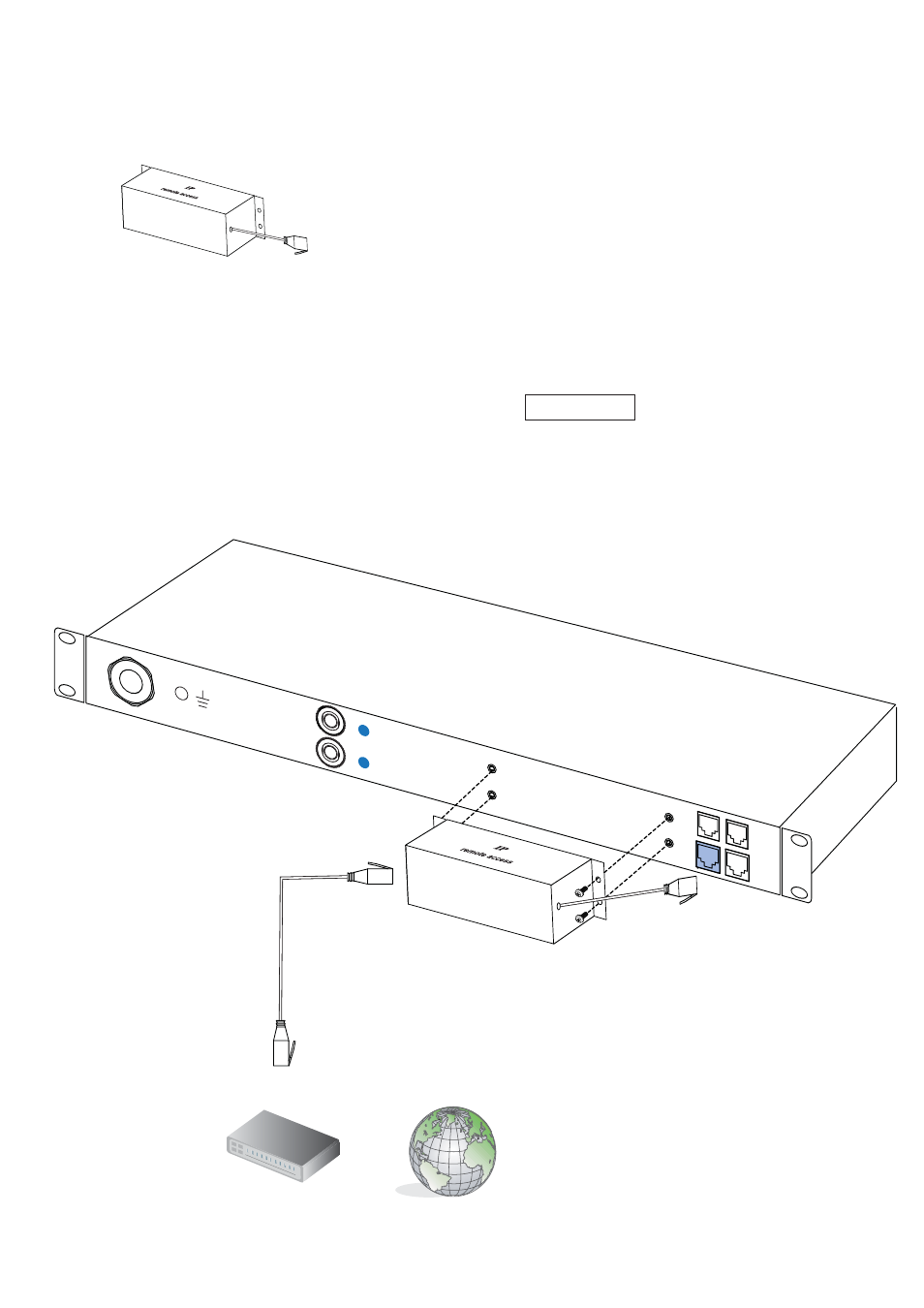

Horizontal IP dongle installation steps :

- fi x the IP dongle on the rear side of rackmount PDU with 4 screws

- plug the RJ-45 connector of IP dongle into the LINK port of the 1st level PDU meter

- use the CAT. 5 / 6 cable to connect IP dongle to network device

To LINK port

of the 1st PDU

Rear side of rackmount PDU

IP dongle

To LAN port
of IP dongle

< 1.5 > IP Dongle Installation & Connection

IP dongle for rackmount PDU

Model :
IPD-H02-S ( with SNMP feature )

Network Hub

B

A

IP dongle
