Figure 2: inglenook electrical connection, Figure 3: inglenook blower electrical harness, Version 1.0b 6 – American Energy Systems Ventilation Air Blower User Manual
Page 6
Version 1.0b
6
ROMEX ELECTRICAL
CONNECTOR TO
ELECTRICAL BOX
LOCATED INSIDE
FRESH AIR INLET
WOOD FRAMING

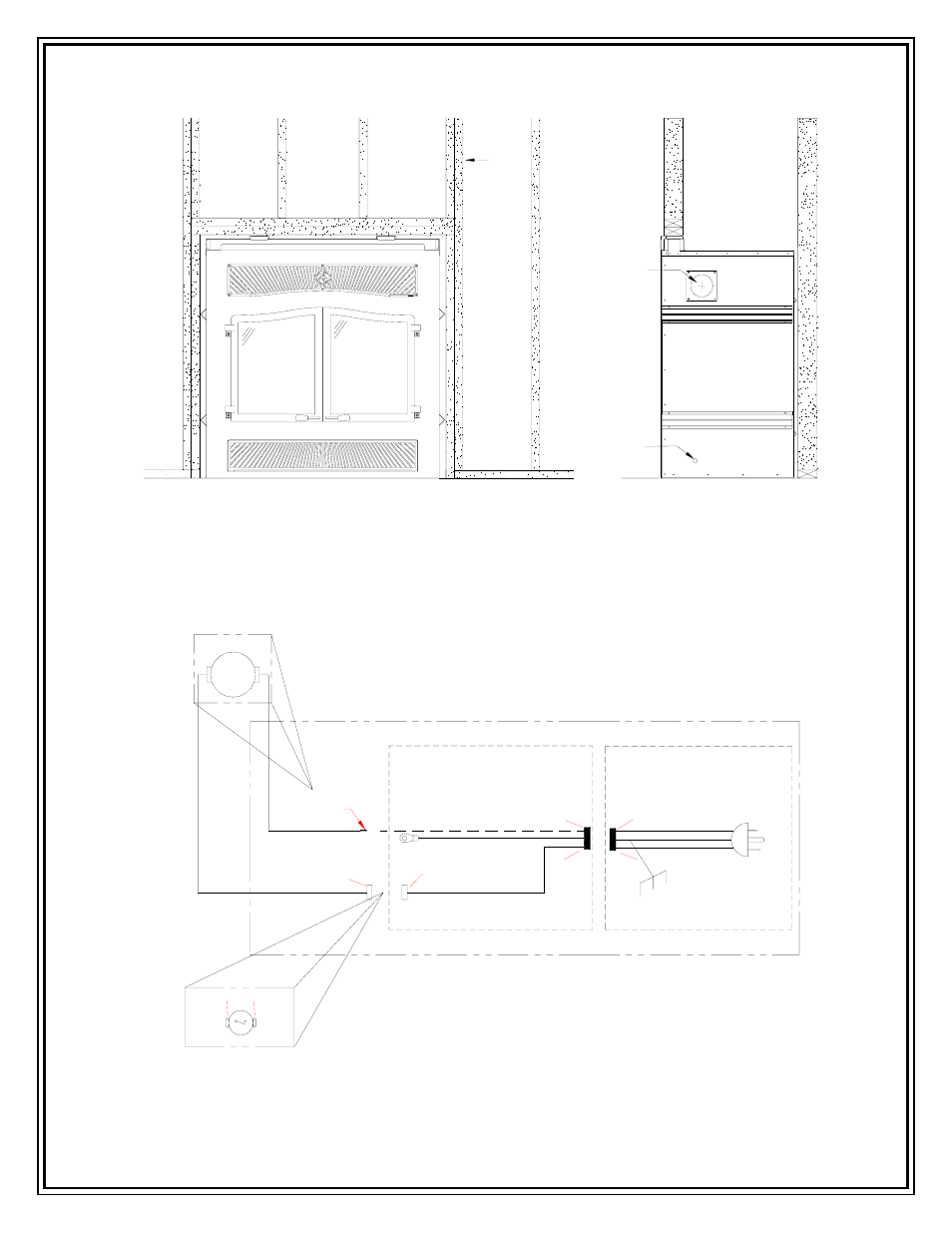

FIGURE 2: INGLENOOK ELECTRICAL CONNECTION
FIGURE 2 shows the proper location to bring electrical power to the Inglenook. Whether the Inglenook
blower system is to be immediately installed or planned as a later option, it is imperative that the electrical
supply be provided to the Inglenook fireplace during initial installation. Failure to install wiring during
installation will make future installation of a blower system more complex and expensive.
BLOWER
10" WHITE WIRE
2
1
"
BLACK WI
R
E
RIBBBED BLACK WIRE
GREEN WIRE
SMOOTH BLACK WIRE
21
" BLACK WI
RE
FEMALE
SPADE
MOLEX PIN PLUGS INTO MOLEX PLUG
MOLEX
PIN
SPADE
FEMALE
SPADE
MALE
SPADE
MALE
MALE
FEMALE
EARTH
GROUND
110°F THERMO SNAP DISK
GND
120 VOLT
AC
60HZ
NE
UTR
A
L
FIGURE 3: INGLENOOK BLOWER ELECTRICAL HARNESS
