F:\AESBusinessSystems\AES Technical\Piece part instructions\P6115 Wire Harness Assembly 6500.doc

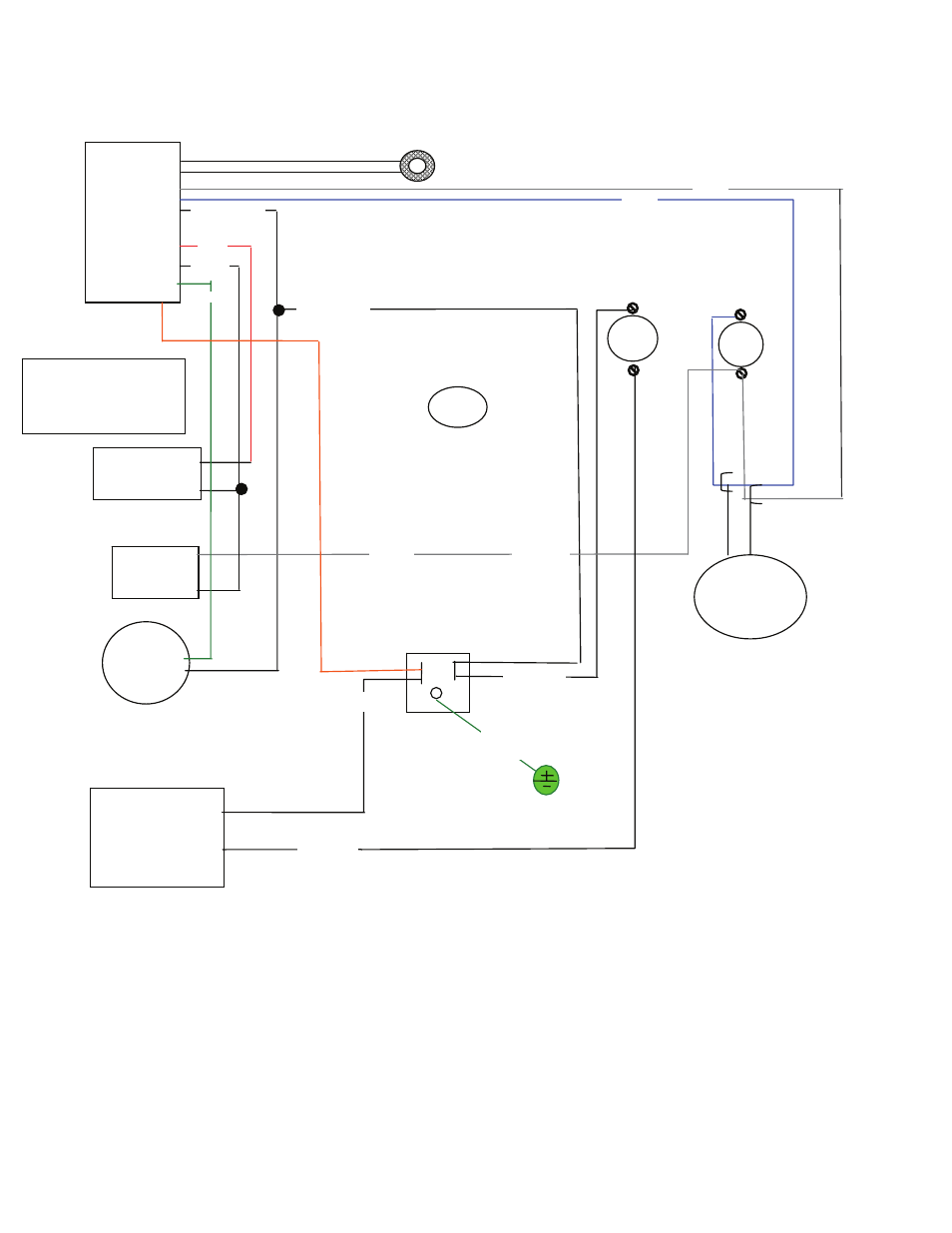

Magnum 6500 Wiring Diagram


The High limit control is pre-set and does not need to be adjusted. If the furnace is overheating consult
your HVAC installer for proper duct installation, pressures and sizing.


The fan limit control heat settings are pre-set and do not need to be changed. If the room fan is cycling often
consult your HVAC contractor for proper duct pressure setting.




Circuit
Board
Control

AES #
MF3593

2 wire low voltage thermostat

Power Cord
Receptacle
showing
back of plug

Green
Ground

Exhaust Motor
AES # MF3650

Auger Gear
Motor
AES # CF26

Blower
1240 cfm

AES # CF24

Grainger Motor#3M393

white

Black from blower fan to
power receptacle

Fan

Gray

High Limit
sensor

Fan limit
sensor

power

Blue

Proof of
fire
sensor
110 deg

White neutral

White neutral

Red

Black

Green

Orange

AES # MF3537

white

Black

Vacuum
pressure switch

Gray

Black

A 200-degree high limit
control has to be installed
in the primary furnace
duct work below the
Magnum 7500 hot air
outlet in a supplementary
furnace installation only.

200 deg. High
limit snap disk

MF3650 2-speed exhaust
blower to be wired using
the white and black leads
red lead is not used.
