F:\AESBusinessSystems\AES Technical\Piece part instructions\CF25 Furnacne assembly.doc








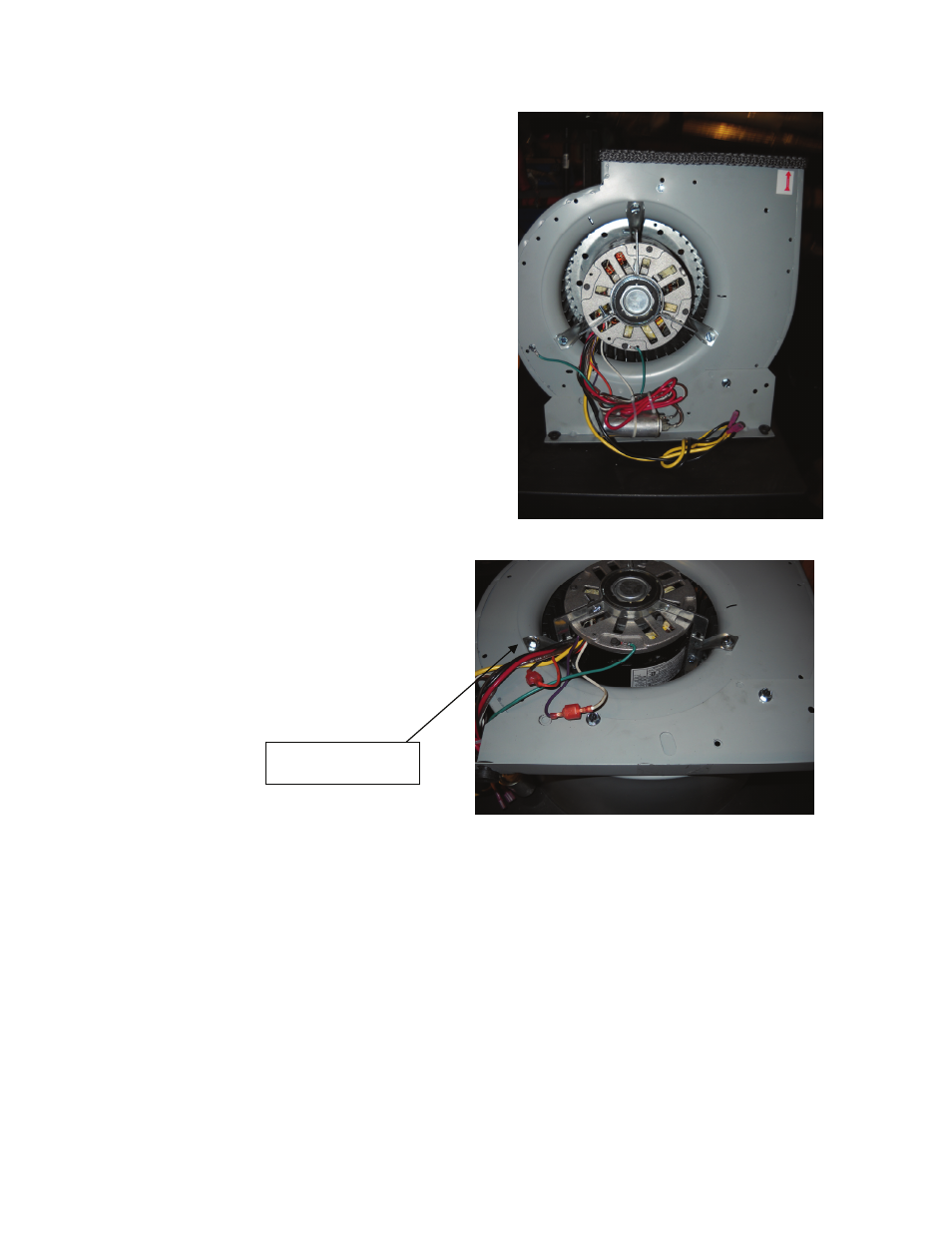

• Using a tie wrap neatly wrap the red lead and the

capacitor leads together. Fasten the capacitor to the
blower housing using tie wrap.














• Mount the blower assembly to the blower

housing using the #14 bolts supplied. The
housing must be straight or motor with be off
set.










• Ground the green lead to housing.

• Evenly space the fan housing inside the blower housing.

• Tighten the set screw making sure it is on the flat side of the blower motor shaft.

• Box if necessary.

#14 screw (3x)
