Getting
Started

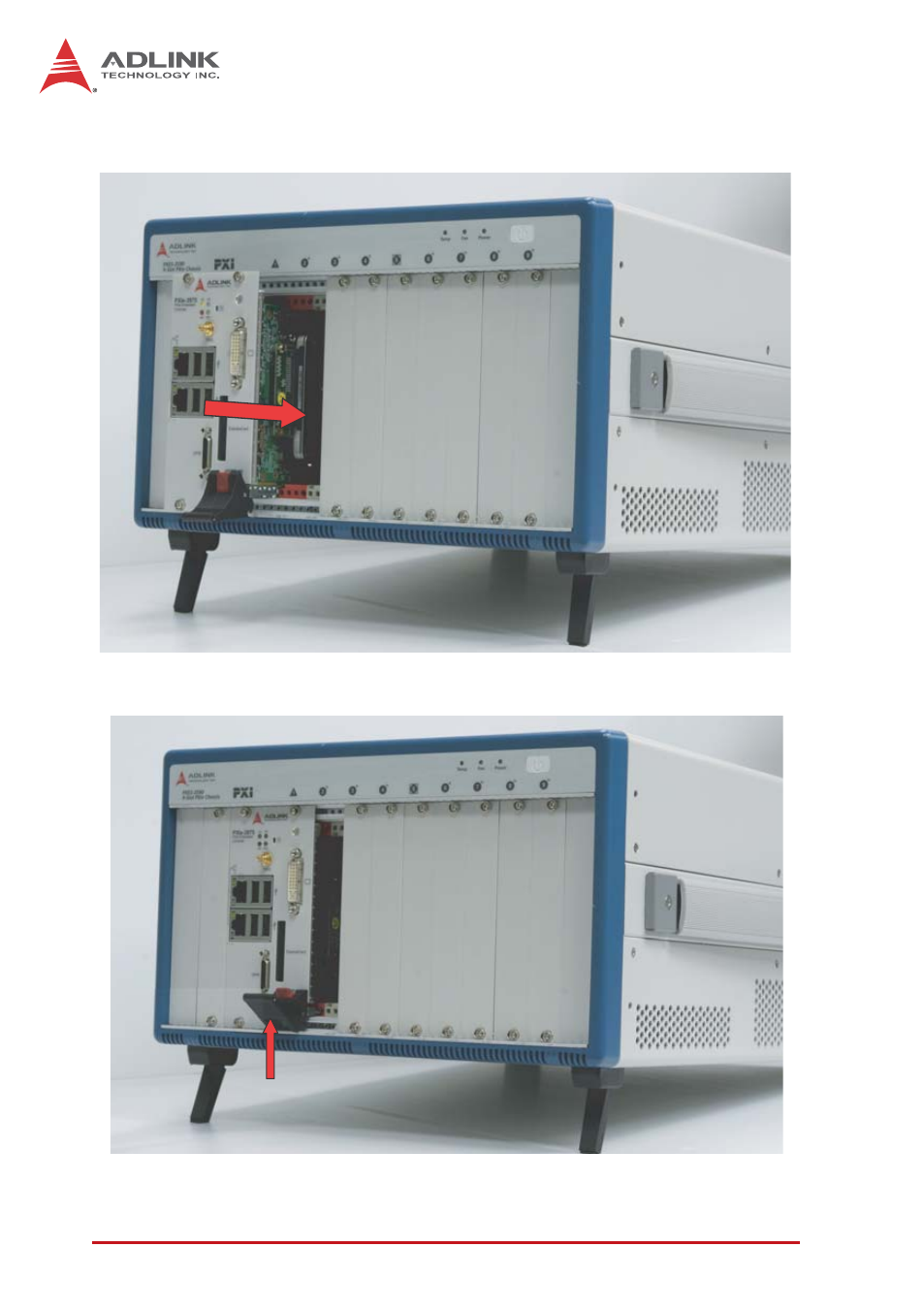

4. Align the module’s top and bottom edges with the card
guides, and carefully slide the module into the chassis.
5. Lift the latch until the module is securely seated in the
chassis backplane.
6. Fasten the screws on the module front panel, and con-
nect all devices to the system controller.
