Hardware Information
2.6
Board ID (S1)
The Board ID feature helps you identify the modules when two or
more PCI-7440 Series cards are installed in one system. Accord-
ing to a DIP switch configuration located in the S1, you can assign
a specific board ID to a designated card and access it correctly
through simple software programming.

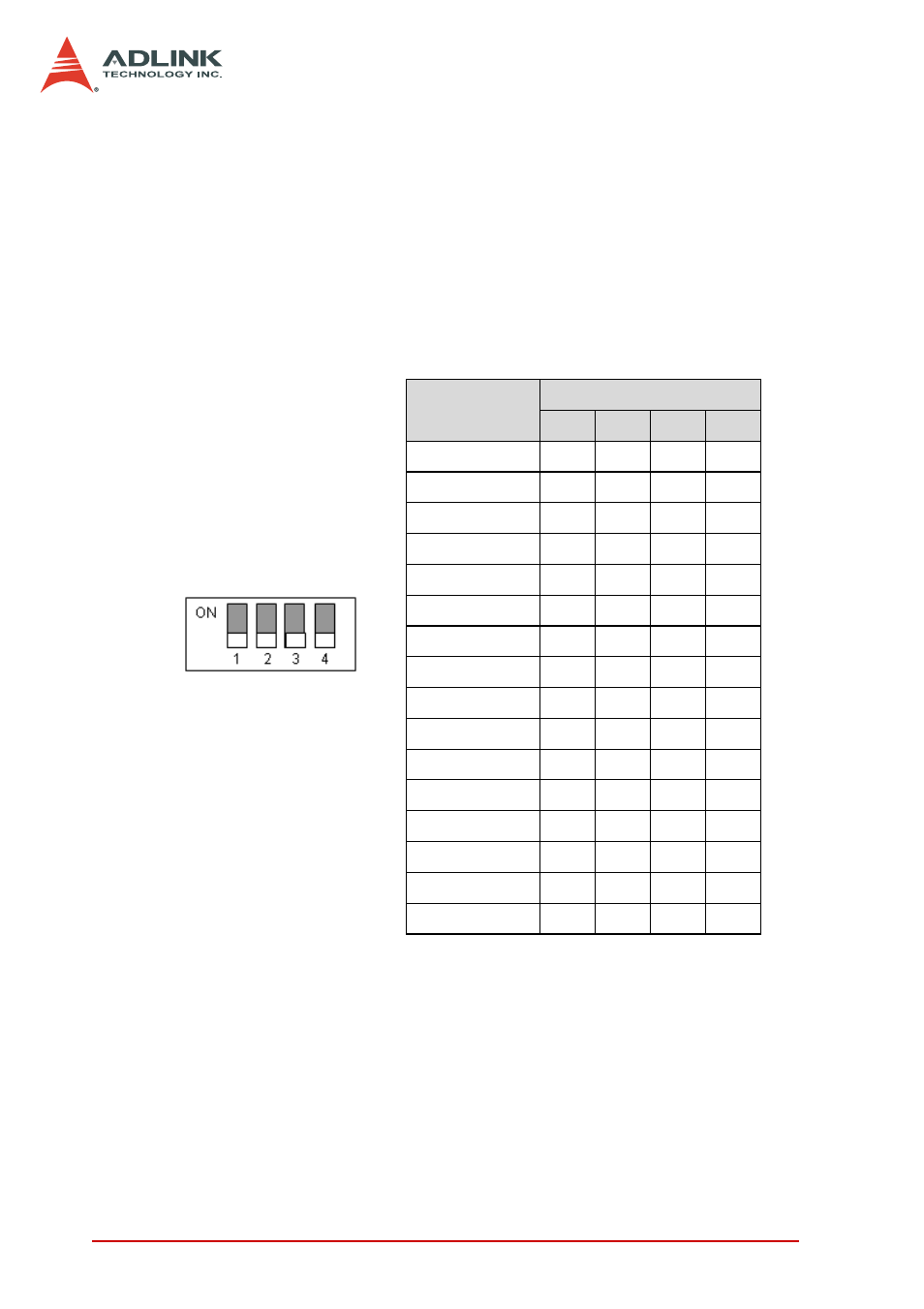

The table below shows all the switch settings. 1 means DIP is at
ON position; 0 means that the DIP is OFF.
Table 2-3: Board ID Settings
Note: 1 = ON, 0 = OFF
Default setting is 1111 or
Board ID = 0
Board ID
Switch No.
1
2
3
4
0
1
1
1
1
1
0
1
1
1
2
1
0
1
1
3
0
0
1
1
4
1
1
0
1
5
0
1
0
1
6
1
0
0
1
7
0
0
0
1
8
1
1
1
0
9
0
1
1
0
10
1
0
1
0
11
0
0
1
0
12
1
1
0
0
13
0
1
0
0
14
1
0
0
0
15
0
0
0
0
