26 • Registers
If your signal sources contain both a floating and a local ground, the
differential mode should be used, with the floating signal source connected
as Figure 3.7.
AIHn
AILn
n = 0, ..., 8
Floatin
Signal
Sourc
To A/D Converter
High
Low
GND

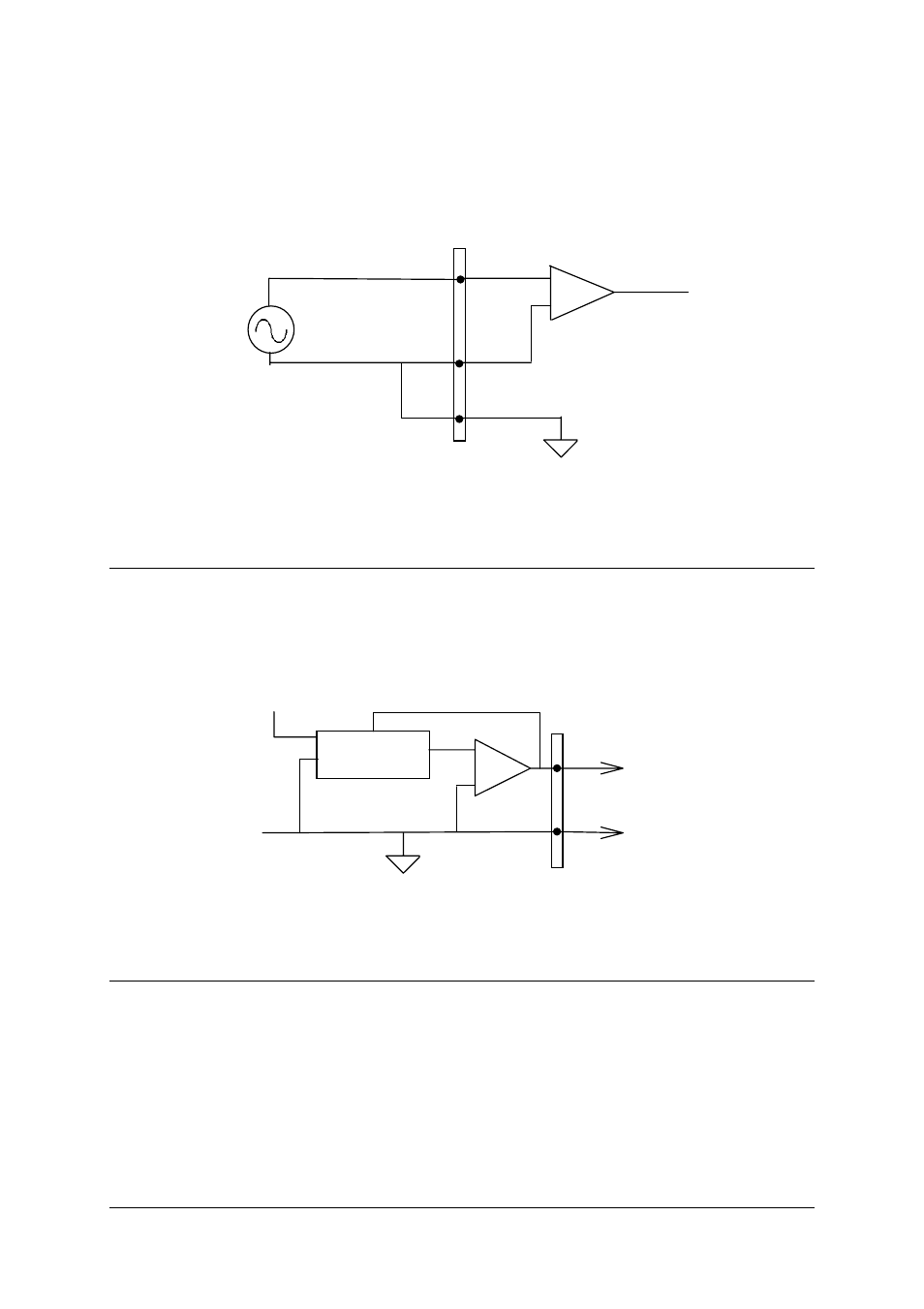

Figure 3.7 Floating source and differential input
3.3 Analog Output Signal Connection
The ACL-8112 has two unipolar analog output channels. To make the D/A
output connections from the appropriate D/A output, please refer Figure 3.8.
To D/A Output D/A Converter
-
+
Ref In
-5 or -10
INT or Ext
Analog GND
Pin-30 ( AO0)
Pin-32 ( AO1)
Pin-14 ( A.GND)
Figure 3.8 Connection of Analog Output Connection
3.4 Digital I/O Connection
The ACL-8112 provides 16 digital input and 16 digital output channels
through CN1 and CN2 onboard. The digital I/O signals are fully TTL/DTL
compatible. Details of the digital I/O signal specification can be referred to
in section 1.3.
