Installation • 15
2.6 Analog Input Channel Configuration
(This section applies to ACL-8112DG and ACL-8112HG only.)
The ACL-8112 offers 16 single-ended or eight differential analog input
channels. JP3 controls the analog input channel configuration. The setting of
JP3 is illustrated below:

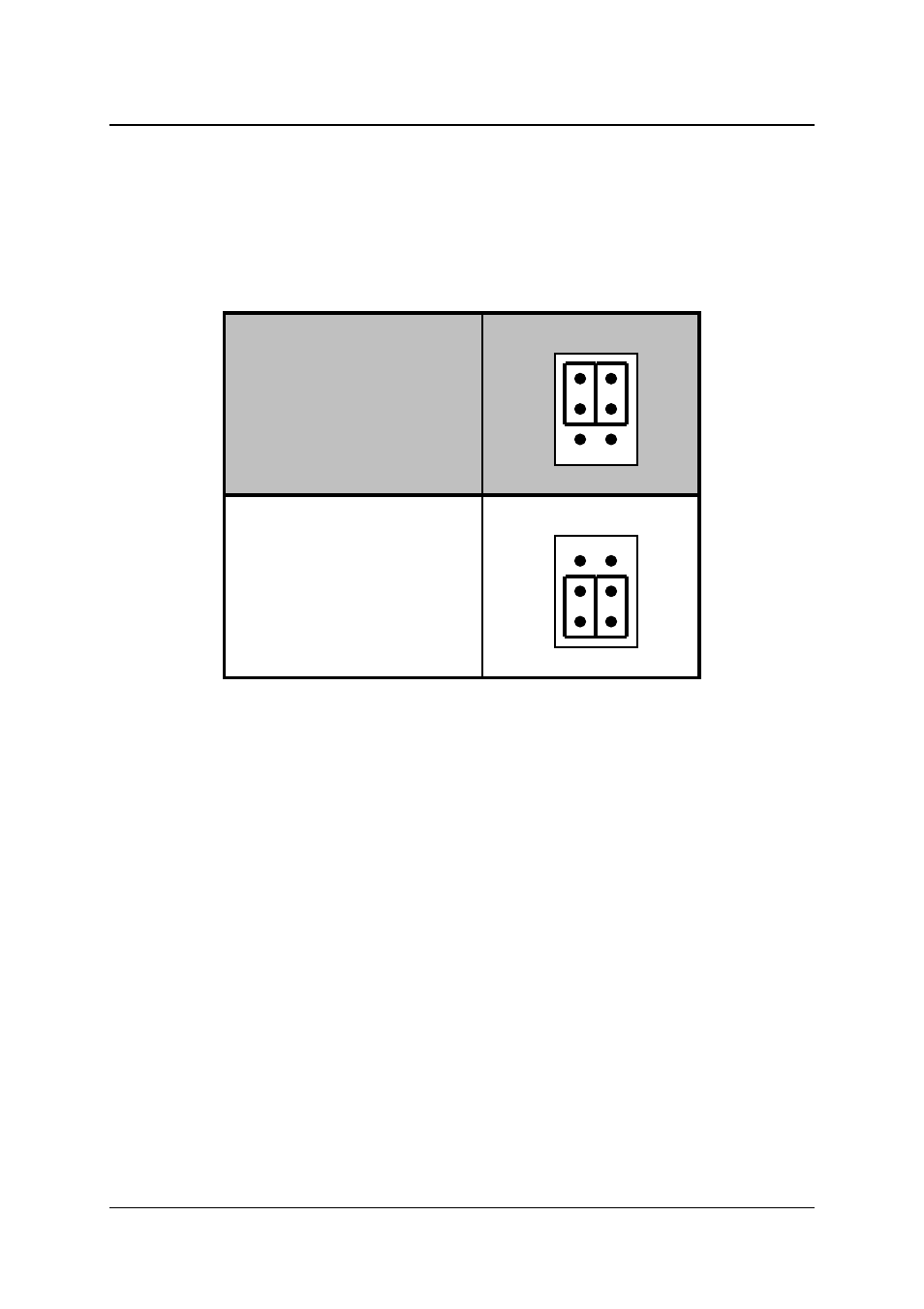

Figure 2.3 Analog Input Channels Configuration
Differential Input
Single-ended
(default setting)
JP3
SING
DIFF
JP3
DIFF
SING
