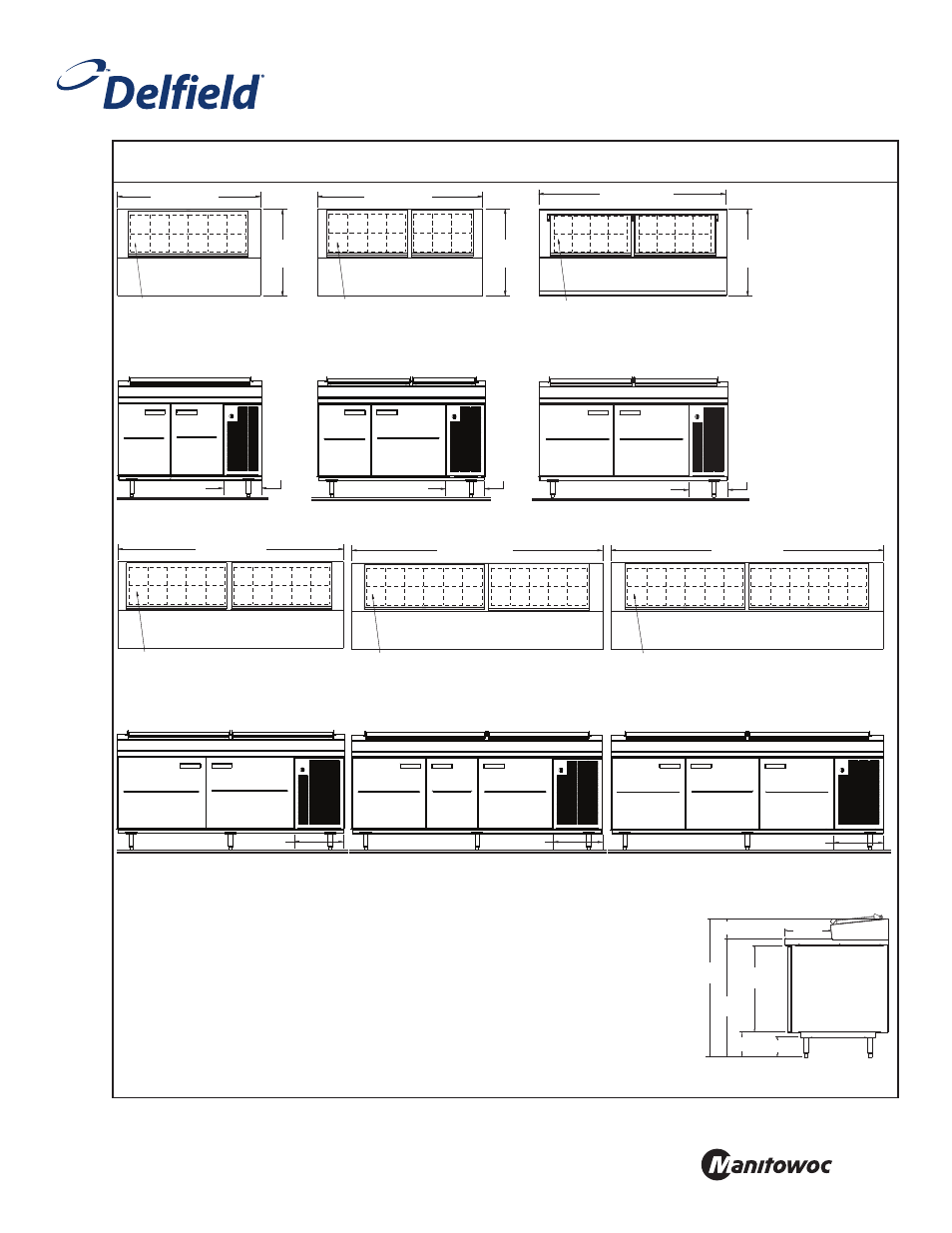

Delfield F18RC60 - Manual (Page 2)

F18RC
52.00" [132cm] 60.00" [152cm]
82.00" [208cm] 91.00" [231cm] 99.00" [251cm]
31.50"
[80cm]
31.50"
[80cm]
Plan View
F18RC52
Plan View
F18RC60
Plan View
F18RC82
Plan View
F18RC91
Plan View
F18RC99
(1) 13.82" x 41.87" top opening to
accommodate (12) 1/6 size pans 6" dp.
(1) 13.82" x 20.87" top opening to
accommodate (6) 1/6 size pans 6" dp. and
(1) 13.82" x 27.87" opening to
accommodate (8) 1/6 size pans 6" dp.
(2) 13.82" x 34.87" top opening to
accommodate (10) 1/6 size pans 6" dp.
(1) 13.82" x 41.87" top opening to
accommodate (12) 1/6 size pans 6" dp. and
(1) 13.82" x 34.87" top opening to
accommodate (10) 1/6 size Pans 6" dp.
(2) 13.82" x 41.87" top opening to
accommodate (12) 1/6 size pans 6" dp.
19" (48cm)
REF'G
19" (48cm)
REF'G
19" (48cm)
REF'G
27" (69cm)
REF'G
Elevation View
F18RC52
Elevation View
F18RC68
Elevation View
F18RC82
Elevation View
F18RC60
Elevation View
F18RC91
Elevation View
F18RC99
14.00"
(36cm)
14.00"
(36cm)
27" (69cm)
REF'G
27" (69cm)
REF'G 14.00"
(36cm)
32" (81cm)
REF'G
32" (81cm)
REF'G
18.00" (46cm)
68.00" [173cm]
31.50"
[80cm]
Plan View
F18RC68
(2) 13.82" x 27.87" top opening to
accommodate (8) 1/6 size pans 6" deep
27" (69cm)
REF'G
27" (69cm)
REF'G
19" (48cm)
REF'G
18.00" (46cm)
27" (69cm)
REF'G
27" (69cm)
REF'G
27" (69cm)
REF'G
18.00" (46cm)
End View
All Models
6.13"
[16cm]
7.62"
[19cm]
36.00"
[91cm]
26.31"
[67cm]
42.00"
[107cm]
6.00"
[15cm]
14.29"
[36cm]
Pan cover, when open, extends
to a height of 12.00" [30cm]
