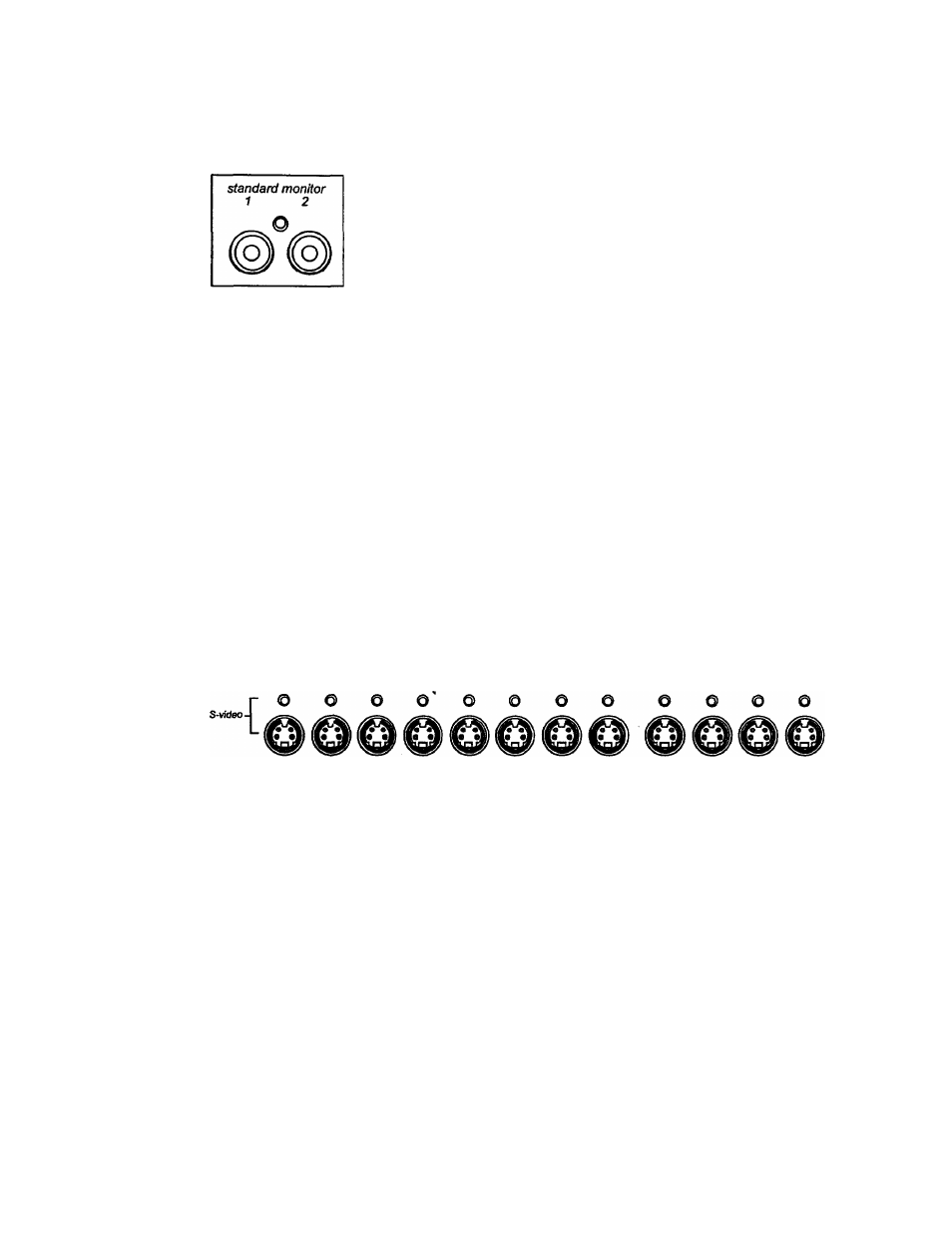

standard (composite) video monitor outputs;
Connect the main monitor or display device to the yellow-center RCA jack
under the “standard monitor 1” label. You may use the "standard monitor 2”
jack for another monitor if desired. Properly connected, either monitor will
then display an image from a video source or on-screen menu information
when appropriate.
CD inputs:
(see illustration on preceding page)
These line-level analog inputs allow easy connection of a CD player (or other two channel
analog audio source.)
Follow these instructions:
1) Connect the CD player’s left channel analog audio output to the GTP-740’s white
“CD in" jack.
2) Connect the CD player’s right channel analog audio output to the red “CD in” jack.
23 S-Video inputs and outputs
Note: This section assumes that you’ve elected to use S-Video sources and display devices
exclusively and that you've set the GTP-740 for S-VIdeo signal transfer by following the steps
described in the boxed note entitled Composite or S-Video? on page 9.
DVD LD
in in in in
VCR video eux momS
in out in out
S-video monitor
1 2
video aux moni2
in out
When hooking up S-Video capable audio/video components, follow the steps outlined in Sections
19 and 22 above. However, ignore the instructions for composite video connections and
substitute the following:
DVD in: Connect the DVD player’s S-VIdeo output to the mini-DIN connector under the S-Video
“DVD in" label.
Dig. aux in: Connect the source’s S-Video output to the mini-DIN connector under the S-Video
“dig. aux in” label.
Dig. RF in: Connect the source’s S-Video output to the mini-DIN connector under the S-Video
“dig. RF in” label.
