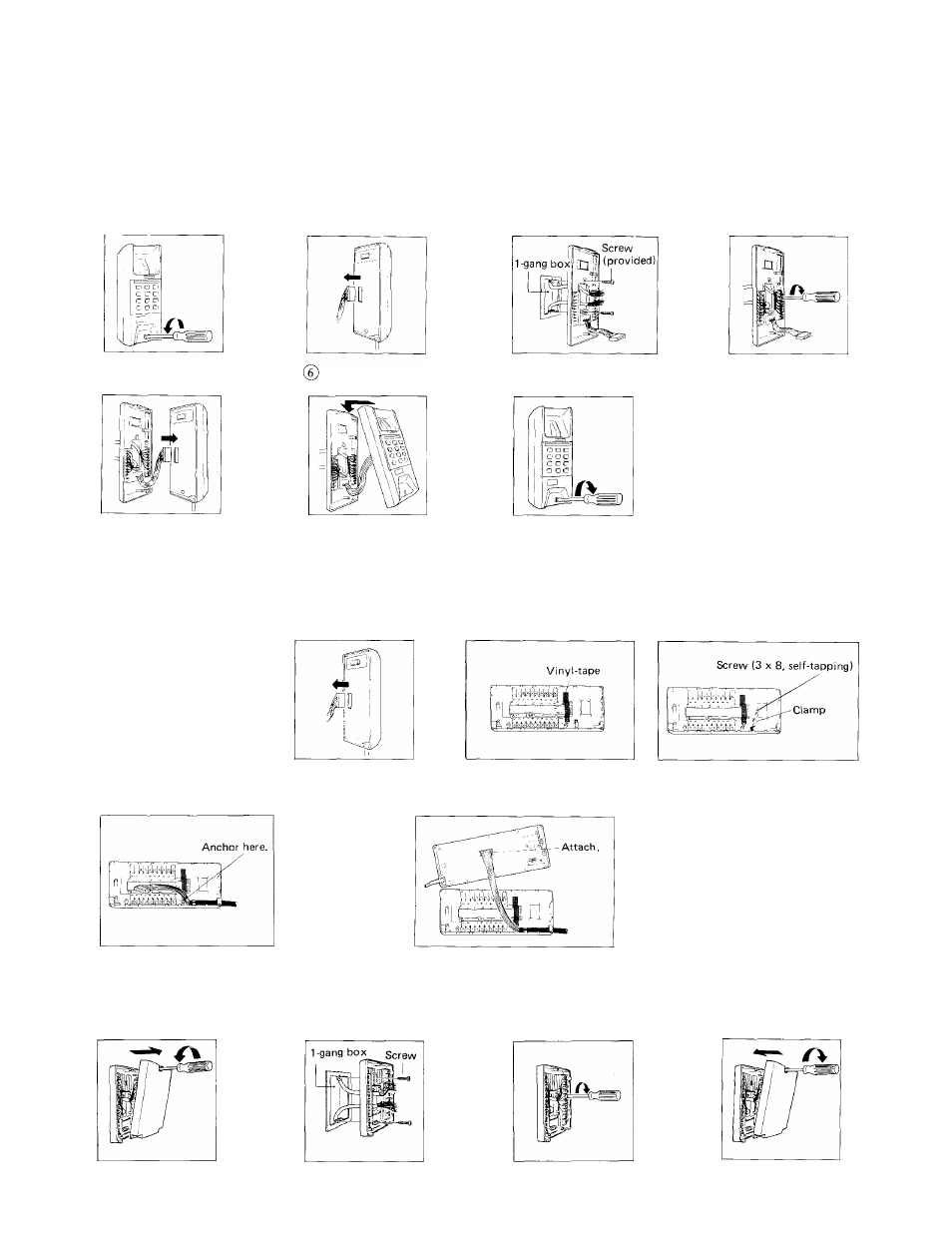

MOUNTING INSTALLATION
* Wall-mounting;
YAZ-90-3 unit is designed for wall-mounting and the terminal section is located on the chassis. Be sure to run cable
through the conduit or in the wall and mount the YAZ-90-3 unit onto the one-gang electrical box.
(T) Remove a screw and (¿) Remove connector
from the receptacle
on back of the front case.
separate the front case
from the chassis.
(5) Attach connector to
the receptacle again.
Attach the chassis onto
the one-gang electrical box.
Hook the front case
to the chassis at its top.
(T) Attach the front case
to the chassis.
(?) Connect wires to the
terminals on back of the
chassis.
YAK-A TERMINAL BOX INSTALLATION
When you wish to use a YAZ-90-3 phone station on your desk, please use terminal box complete with cord
and connector, Model: YAK-A, which must be ordered separately.
(D Remove a screw.
O C o
u or
G C C
G D o
@ Remove a connector. @ Fix the connector on
the chassis by tape, etc.
(7) Remove a screw (3
x
8mm),
self-tapping) fixing the clamp.
@ Pass the YAK-A’s connector through either top
or bottom hole and anchor the cable by the
screw removed in Step 4.
Attach the connector to the
receptacle.
* Wall mounting installation;
(T) Remove a screw and
separate cover.
@ Attach the terminal
case to 1-gang box or wall
with the supplied screws.
Connect wires. (4) Replace the cover.
Be careful not to pinch
wires between connectors.
5
-
