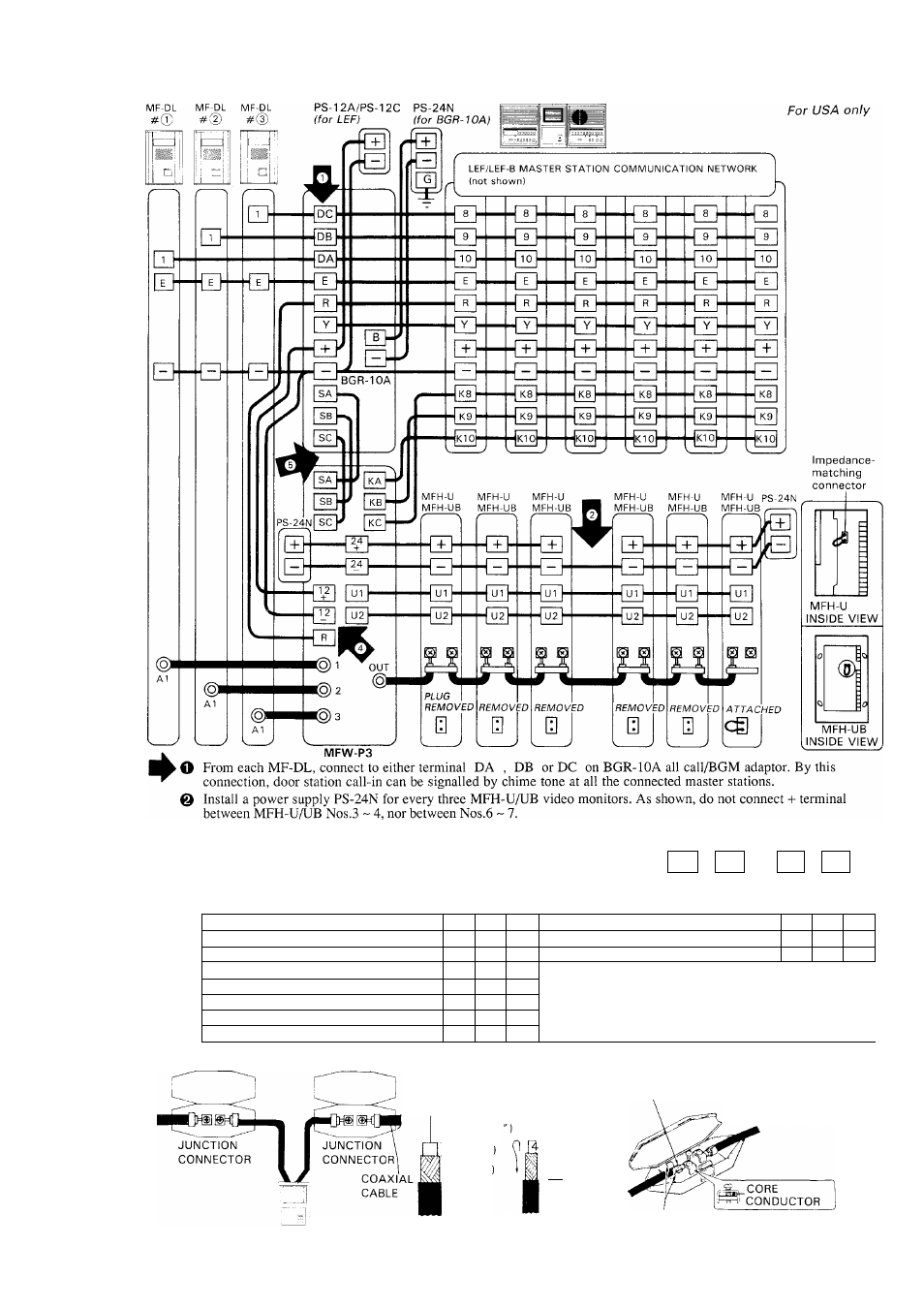

(2) LEF VIDEO SYSTEM WITH MONITORING CAPABILITY;
@ In a system with more than one video monitor, remove all the impedance-matching connectors, except at the
farthest monitor.
O
When connecting PS-12A/PS-12C power supply, remove shorting links between
MFW-P3 adaptor.
© For wiring connections between adaptors and door stations, please follow the table below for system's proper
functioning;
AV - 12+ and ED - 12-
Door station No.
1
2
3
Camera/area No.
1
2
3
LEF door-assigned terminal
10
9
8
Camera-assigned terminal (MFW-P3)
B1
B2
B3
BGR-lOA door station terminal
DA
DB DC
Coaxial cable input
1
2
3
For calling detection
(MFW-P3,BGR-lOA)
SA
SB
SC
Video control (MFW-P3)
KA
KB KC
- do - (LEF)
KIO K9
K8
For door release control (MFW-P3)
LI
L2
L3
Coaxial cable input
1
2
3
I COAXIAL CABLE CONNECTION;
5C-2V
RG-59/U(20GA)
8 mm (5/16
4
(3/16"
~r
8 (5/16"
3C-2V
RG-59/U(22GA)
® @
"^"^'8 (5/16")
I
n 4 (3/16")
Fold back braided conductors in a manner that
core conductor be not bent nor shorted to
braided conductors.
From: video monitor
iMFH-UB
Fasten dips by pliers to hold
braided conductors.
-
5
-
