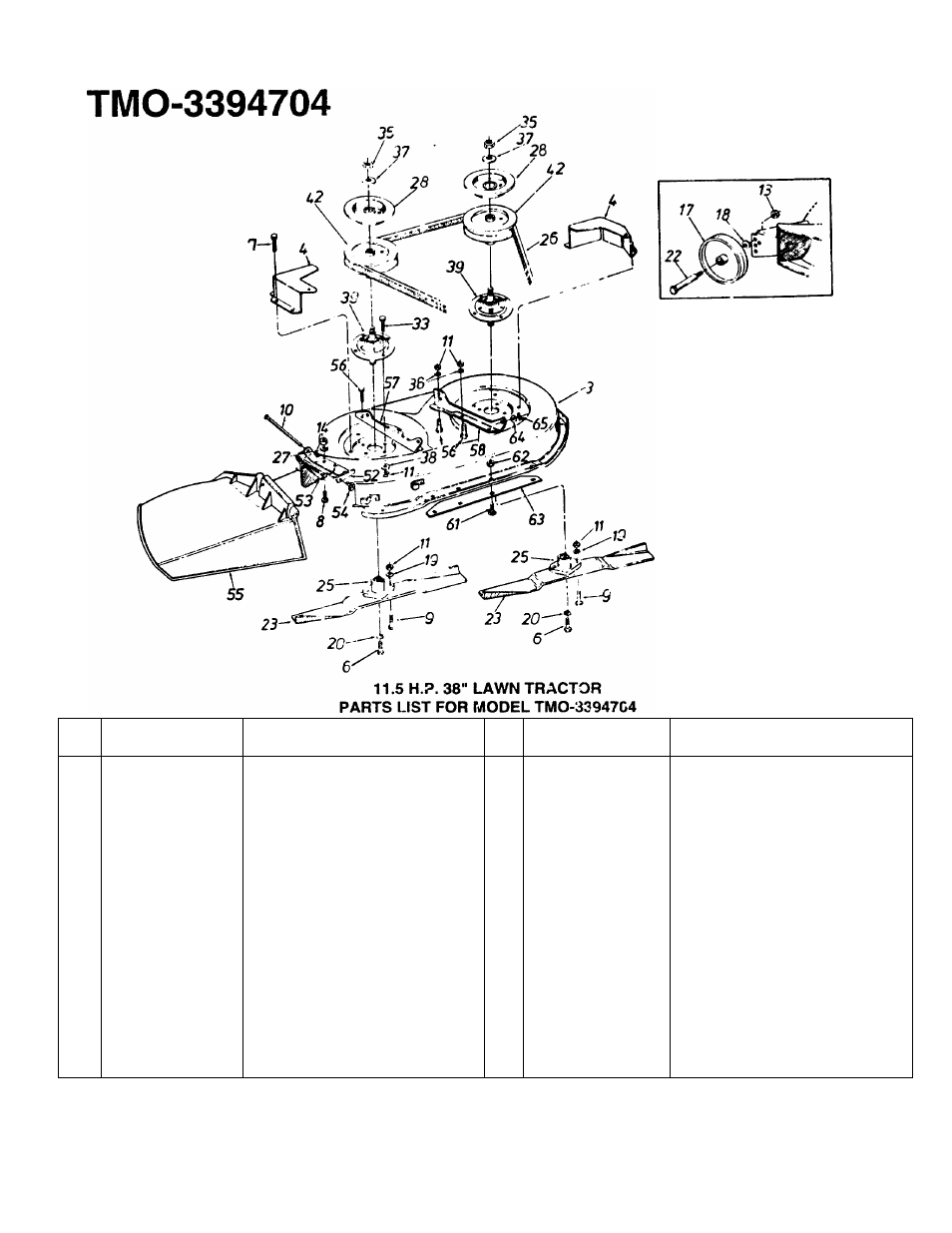

REF.
NO.
PART
NO.
DESCRIPTION
REF.
NO.
PART
NO.
DESCRIPTION
3
17717A
38" Deck Ass’y.
35
712-0318
Hex Jam Nut 5/8-18 Thd.
813-04119
38" Deck Ass’y. Comp. (For
37
736-0158
L-Wash 5/8“ I.D.*
Service Onlyl
38
736-0242
Bell-Wash. .345" I.D. x .88"
4
17665
Belt Guard Deck
O.D.
6
710-0152
Hex Bolt 3/8-24 x 1.0" Lg.
39
717-0906
Blade Spindle Ass'y. Comp.
7
710-0599
Hex Wash. Hd. TT-Tap Scr.
(Incl. Ref. 33)
1/4-20 Thd.
42
756-0486
5" Dia. Pulley
8
710-0258
Hex Bolt 1/4-20 x .62" Lg.
52
703-1693
Hinge Mtg. Brkt.
9
710-0888
Hex Bolt Special 5/16-24 x 1.0"
53
732-0602
Torsion Spring
10
711-0792
Hinge Pin
54
726-0106
Push Nut
11
712-0123
Hex Nut 5/16-24 Thd.*
55
731-1032
Chute Ass’y. Comp.
14
712-0257
Hex Nut 1/4-20 Thd.*
56
710-0157
Hex Bolt 5/16-24
X
.75" Lg.
19
736-0119
L-Wash. 5/16" I.D.’
57
17572
DecK Hunger Channel—R.H.
20
736-0217
L-Wash. 3/8" I.D—H D.
58
17.-'71
Deck Hanger Channel—L.H.
23
742-0473A
High-Lift Blade
61
710-0167
Carr. B'>lt 1/4-20 x .5" Lg.
25
748-0300
Blade Adapter
62
712-0271
Hex Sems Nut 1/4-20 Thd.
26
754-0329A
V-Belt
63
17563
Deck Skirt Ext.
27
736-0270
Bell-Wash. 1/4" I.D.
64
736-0185
FI-Wash. .406“ 1 D. x .73" O.D.
28
09322
Brake Disc
65
714-0104
Hairpin Clip 3/8" Dia.
33
710-0157
Hex Bolt 5/16-24
X
.75" Lg.
’Common Hardware—May be purchased locally.
IMPORTANT: DO NOT order parts by rafererice
number (Ref. No.).
