Bolens TMO-3394704 User Manual
Page 21
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
TMO-3394704

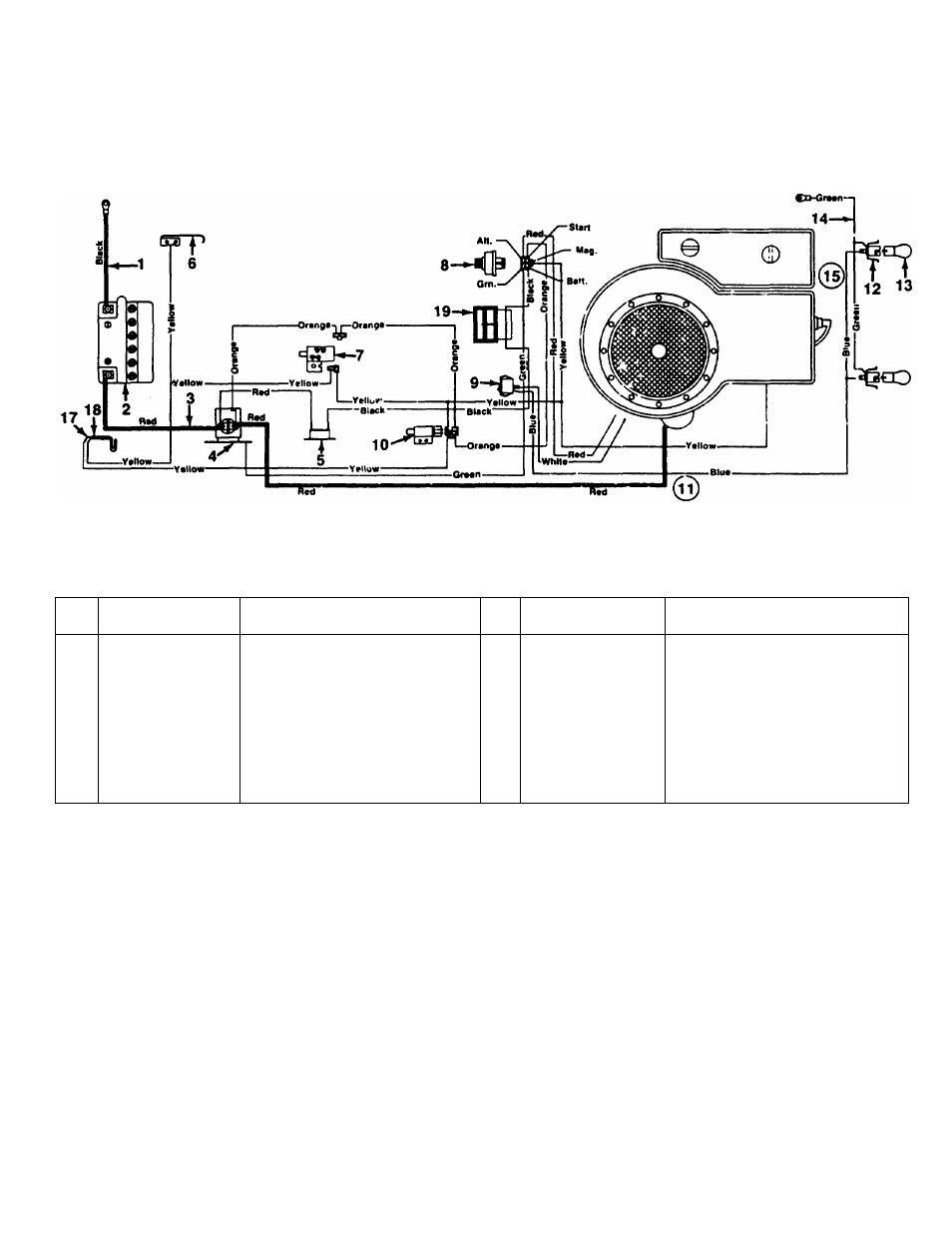

PARTS UST FOR ELECTRICAL SYSTEM
REF.
NO.
PART
NO.
DESCB.PIION
REF.
NO.
PAR"
NO.
DESCRIPTION
1
725-0976A
Ground Wire
11
629-0031
Harness
2
725-0514A
Battery
12
725-1651
Socket
3
725-0926
Electric Wire
13
725-0963
Bulb
4
725-1426
Solenoid
14
725-0916A
Ground Wire
5
725-0459
Circuit Breaker
15
629-0086
Headlight Harness
6
732-0758
Spring Switch (Reverse)
16
725-0222
Headlight (Round—Not Shown)
7
725-0819A
Safety Switch (Deck)
17
725-1303
Safety Switch (Seat)
8
725-0267
Ignition Switch
18
725-1439
Safety Switch (Seat)
9
10
725-0634
725-3169A
Light Switch
Safety Switch (Clutch)
19
725-0925
Ainmeter
21
