OPERATION
f mmmj^ j
The oper»ii>Cir> >l eili*ii car» resylt in foreign objetls Ihrown liito the eyes, which can
result in severe eye damage. Always wear safety glasses ot eye shields before starting
your tiller and t.lling Wt reconimend a wide vision safety mask over spectacles or
standard safety glasses
HOW TO ЧЬЕ YOUR TILl tb
Know
how to
operate
all
controls
before
adding
fuel and
oil or attempting to start engine. ■

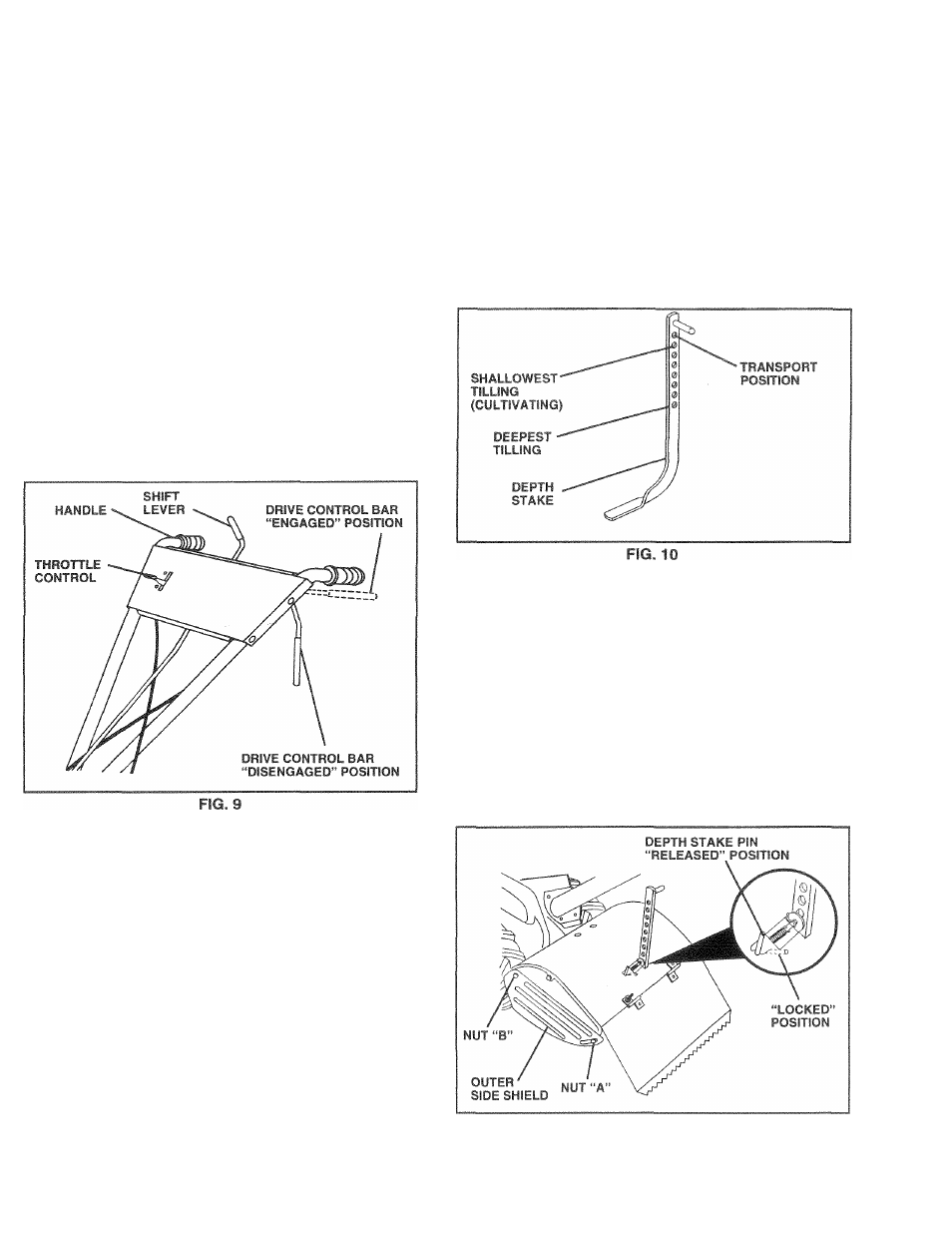

STOPPING (See Fig. 9)
TINES AND DRI¥E
•
Release drive control bar to stop movement.
•
Move shift lever to “N” (neutral) position.
ENGINE
•
Move throttie control to “STOP” position. If equipped
with stop switch, move switch to “STOP” position.
•
Never use choke to stop engine.
I M rH STAKE |iee Fig. 10)
The
depth stake can
be
raised or lowered to allow
you more
versatile tilling and cultivating, or to more easily transport
your tiller.
TILLING (See Fig. 11)
•
Release depth stake pin. Put! the depth stake up for
increased tilling depth. Place depth stake pin in hole of
depth stake to lock in position.
•
Place shift lever indicator in till position.
•
Hold the drive control bar against the handle to start
tilling movement. Tines and wheels will both turn.
® Move throttle control to “FAST’ position for deep tilling.
To cultivate, throttle control can be set at any desired
speed, depending on how fast or slow you wish to
cultivate.
IMPORTANT: ALWAYS RELEASE DRIVE CONTROL BAR
BEFORE MOVING SHIFT LEVER INTO ANOTHER
POSITION.
TINE OPERATION - WITH WHEEL DRIVE
® Always release drive control bar before moving shift
lever into another position.
® Tine movement is achieved by moving shift lever to
(K)till position and engaging drive control bar.
FORWARD - WHEELS ONLY/TINES STOPPED
• Release drive control bar and move shift lever indicator
to “F” (forward) position. Engage drive control bar and
tiller will move forward.
REVERSE - WHEELS ONLY/TINES STOPPED
DO NOT STAND DIRECTLY BEHIND TILLER.
Release the drive control bar.
Move throttle control to “SLOW” position.
Move shift lever indicator to “R” (reverse) position.
Hold drive control bar against the handle to start tiller
movement.
g
FIG. 11
