SERVICE AND ADJUSTMENTS
TINE REPLACEMENT (See I' jgs. 24. 2S and 26|
A
CAUTION
Tines
are
sharp.
Wear
gioves or other protection when han
dling tines.
A badly worn tine causes yaur tfller to work harder and dig
mc-reshalL/w. M o r t i m p o r i i v v o r n tines cannot chop and
shred organic matter as effectively nor bury (t as deeply as
good tines. A tine this worn needs to be replaced.
To maintain the superb
tilling
performance of this
machine the tines should
be
checked for sharpness,
wear, and bending, particularly the tines which are next
to the transmission. If the gap between the
tines
exceeds
3
-
1/2
inches (9 cm), they should be replaced
or straightened as necessary.
New tines should be assembled as shown in Fig. 28.
Sharpened tine edges will rotate
rearward
from above.

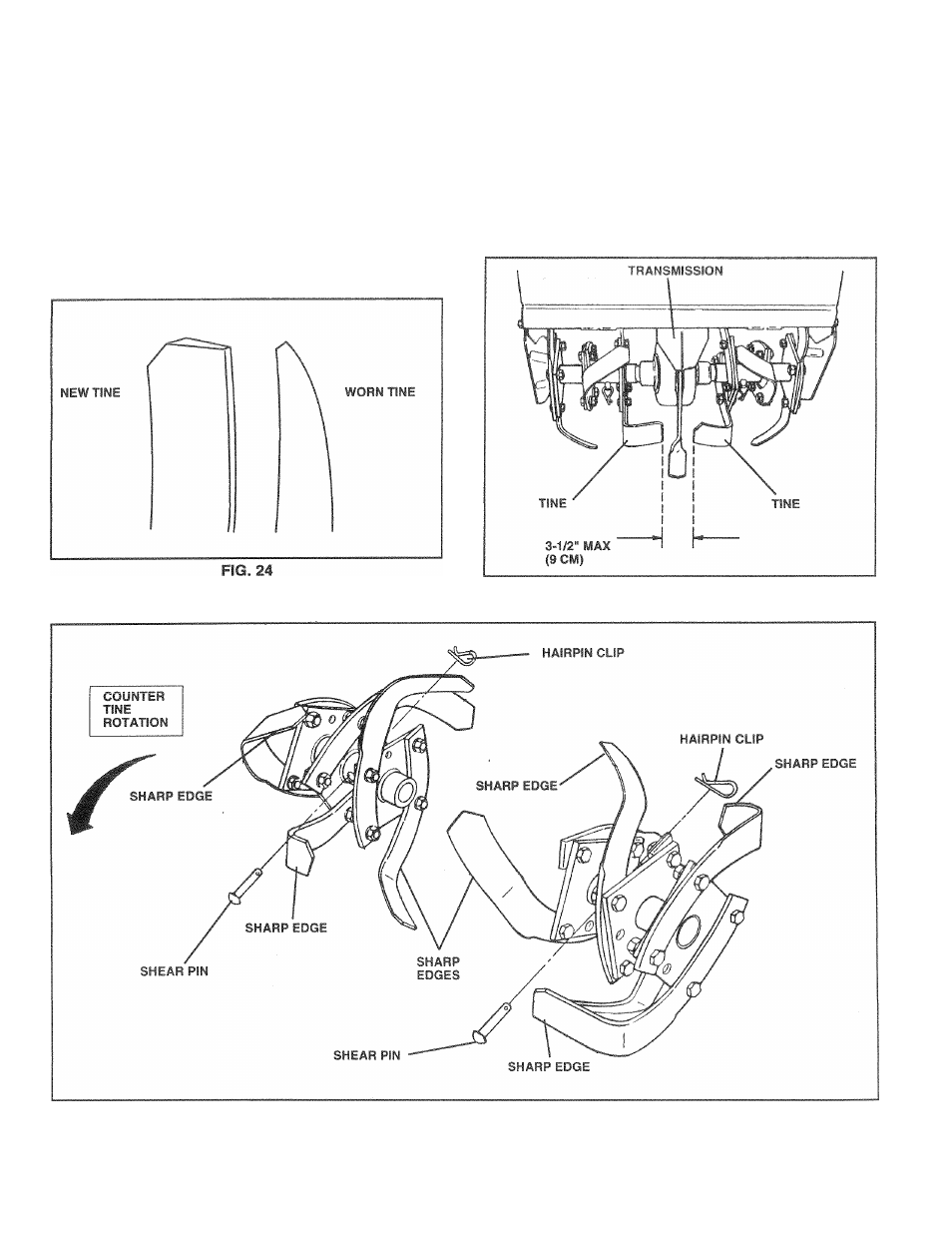

FIG. 24
FIG. 26
