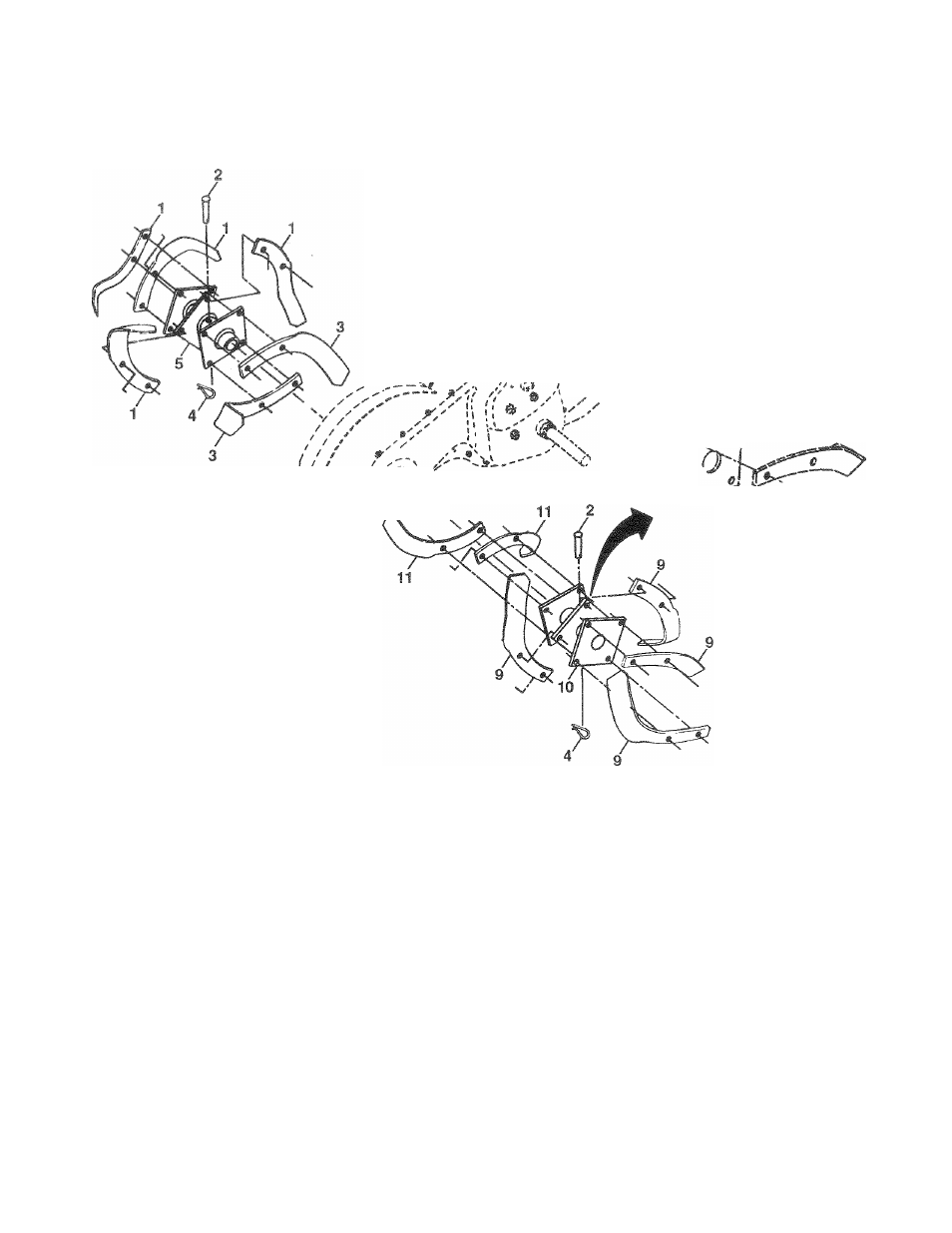

REPAIR PARTS
T!NE ASSEMBLY
TILLER
■ - MODEL NUMBER CHDR500C
i c z >
•
_ _ _
t '
'
^
j
/ y
-y---'\\{((fC
-.I'-"'
>
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
4459J
Tine, Outer, L.H.
8
74610616
Bolt, Hex 3/8-24 x 1
2
132673
Clevis Pin
9
4460J
Tine, Outer,
R.H.
3
6554J
Tine, Inner, L.H.
10
132728
Assembly, Hub and
Plate,
R.H.
4
5
3146R
132727
Clip, Hairpin
Assembly, Hub and Plate, L.H.
11
6555J
Tine, Inner, R.H.
6
7
73610600
10040600
Nut, Hex 3/8-24
Washer, Lock 3/8
NOTE:
All
component dimensions given in U.S. inc
1 inch = 25.4 mm
26
