SERVICE AND ADJUSTMENTS
r* Ehmmi PFLT QdARD Fiq. T/l
WliTF F Of ^ of i iiKr/rjl or ICV h ,!q innip J i d f l o / .
|,in f(< 5 , li^fi ' n i 1 1 - r i ' t 1 inrl!
(2.5 cm).
RtH u.t oap Kuc- j.ii „1 Jt iL-!t
guara.
• Remove hex nut and washer from bottom of belt guard
(located behind wheel).
• Pull belt guard out and away from unit.
• Replace belt guard by reversing above procedure.

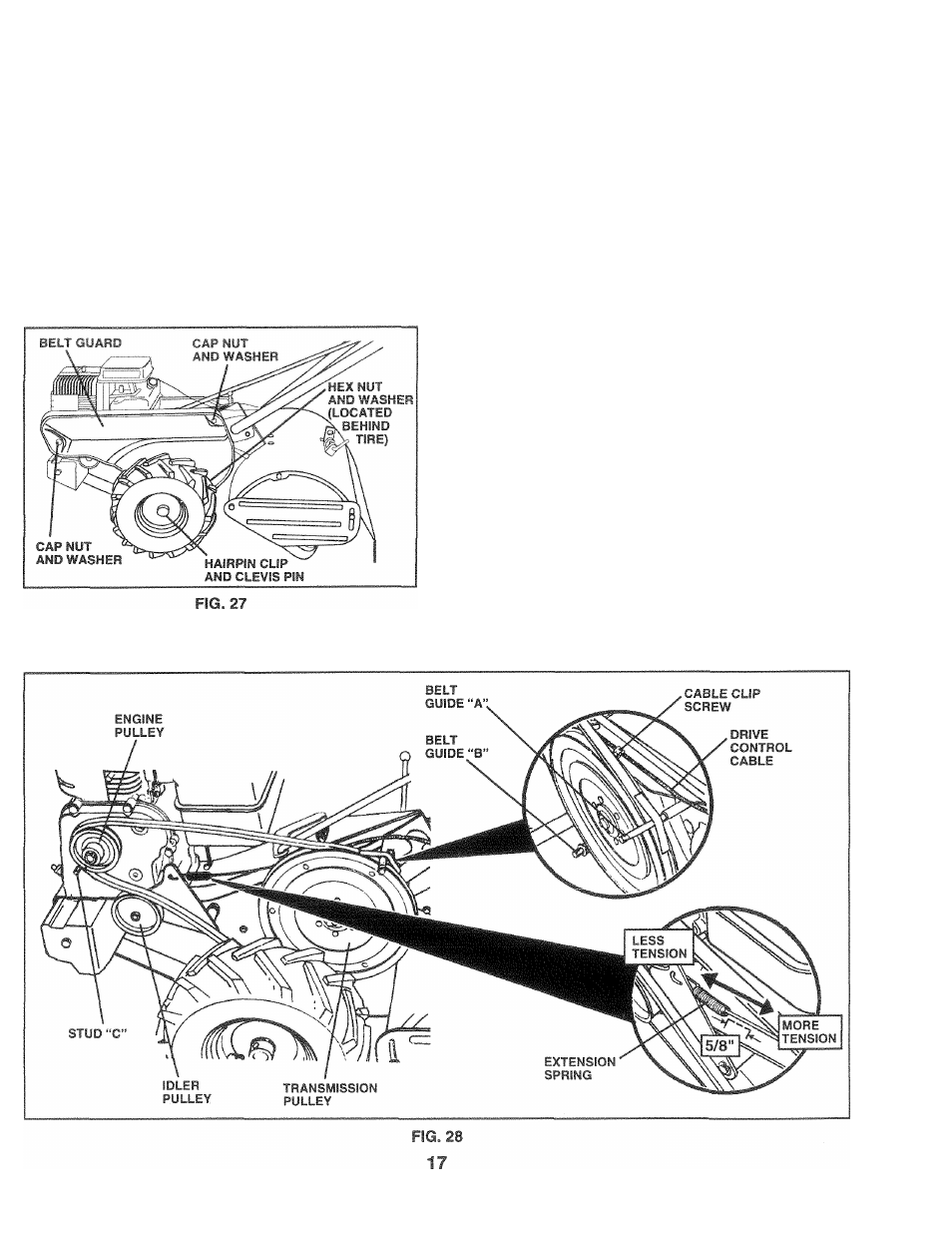

TO REPLACE GROUND DRIVE BELT (See
Figs. 27 and 281
® RciTi&uG best j u - a d a r de.'.cribed in ‘TO REMOVE
BEL r GU a RI j L
• Looseri r.eit quiaes T ' a i i d ' o ' and also stud “C”.
• Remn.'e ola i eft by slipping off engine pulley first then
remo/e traitomission pultey.
• Place new belt in groove of transmission pulley and
into engine pulley. BELT MUST BE IN GROOVE ON
TOP OF IDLER PULLEY. NOTE POSITION OF BELT
TO GUIDES.
• Tighten belt guides “A" and “B” and stud “C”.
» Check belt adjustment as described below.
• Replace belt guard.
• Reposition wheel and replace clevis pin and hairpin
clip.
GROUND DRIVE BELT ADJUSTMENT (See
Fig. 25)
For proper belt tension, the extension spring should have
about 5/8 inch (16 mm) stretch when drive control bar is in
“ENGAGED” position. This tension can be attained as
follows:
® Loosen cable clip screw securing the drive control
cable.
• Slide cable forward for less tension and rearward for
more tension until about 5/8 inch (16 mm) stretch is
obtained while the drive control bar is engaged.
• Tighten cable dip screw securely.
