TILLER

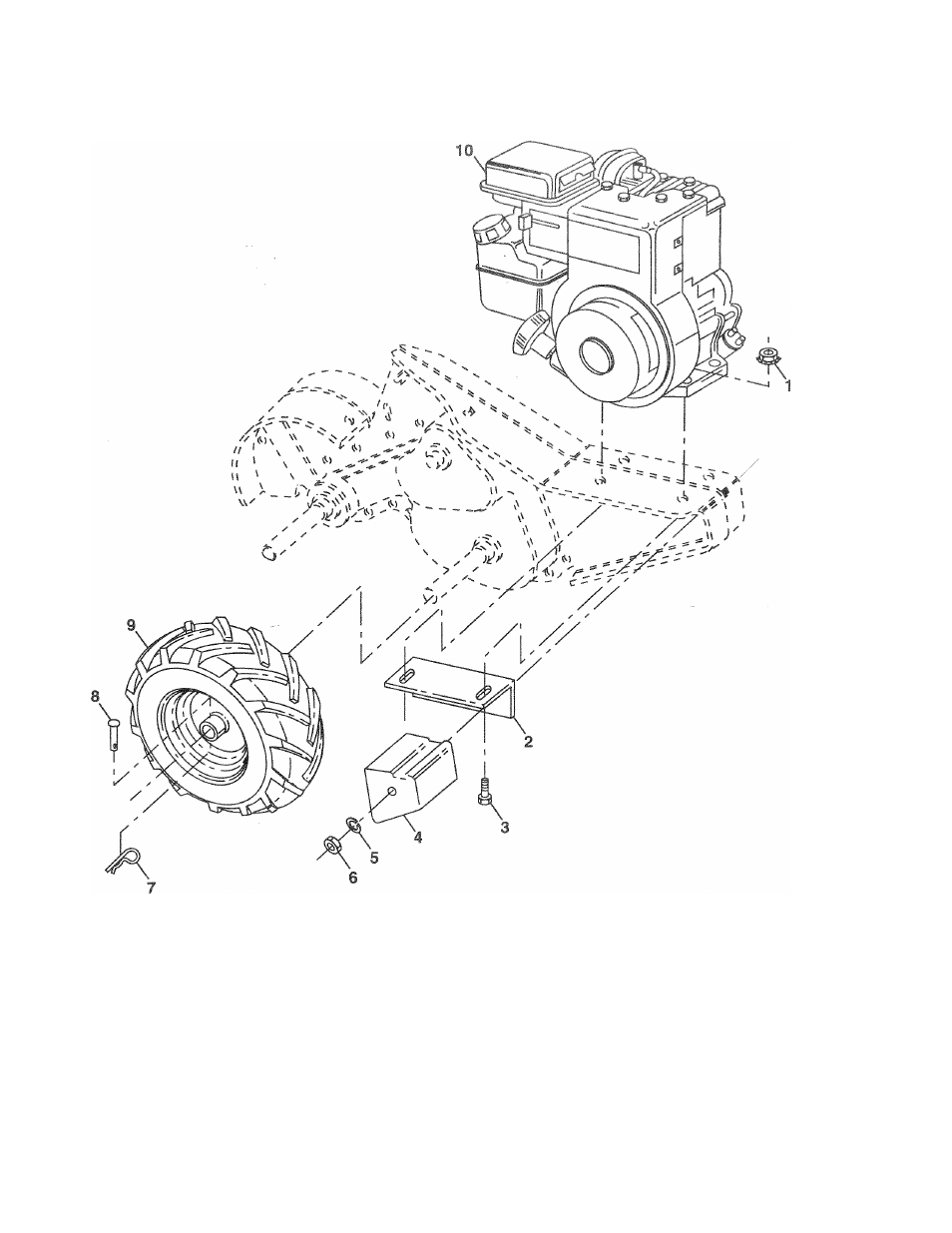

MAINFRAME, RIGHT SIDE
REPAIR PARTS
- MODEL NUMBER CHDR500C
KEY
PART
DESCRIPTION
KEY PART
DESCRIPTION
NO.
NO.
NO. NO.
1
73510500
Nut, Keps 5/16-18
9 102190X
Tire
2
102332X
Bracket, Reinforcement
150750
Rim
3
74760524
Bolt, Hex 5 / 1 6 - 1 8 x 1 - 1 / 2
795R
Tire Valve
4
102173X
Counter Weight, R.H.
10 ..................
Engine, Briggs & Stratton
5
10040600
Washer, Lock 3/8
Model No. 137202
6
73220600
Nut, Hex 3/8-16
7
4497H
Clip, Hairpin
NOTE: All component dimensions given in U
8
126875X
Rivet, Drilled
1 inch
= 25.4 mm
