REPAIR PARTS
TILLFR - - MODEL NUMBER CHDR500C

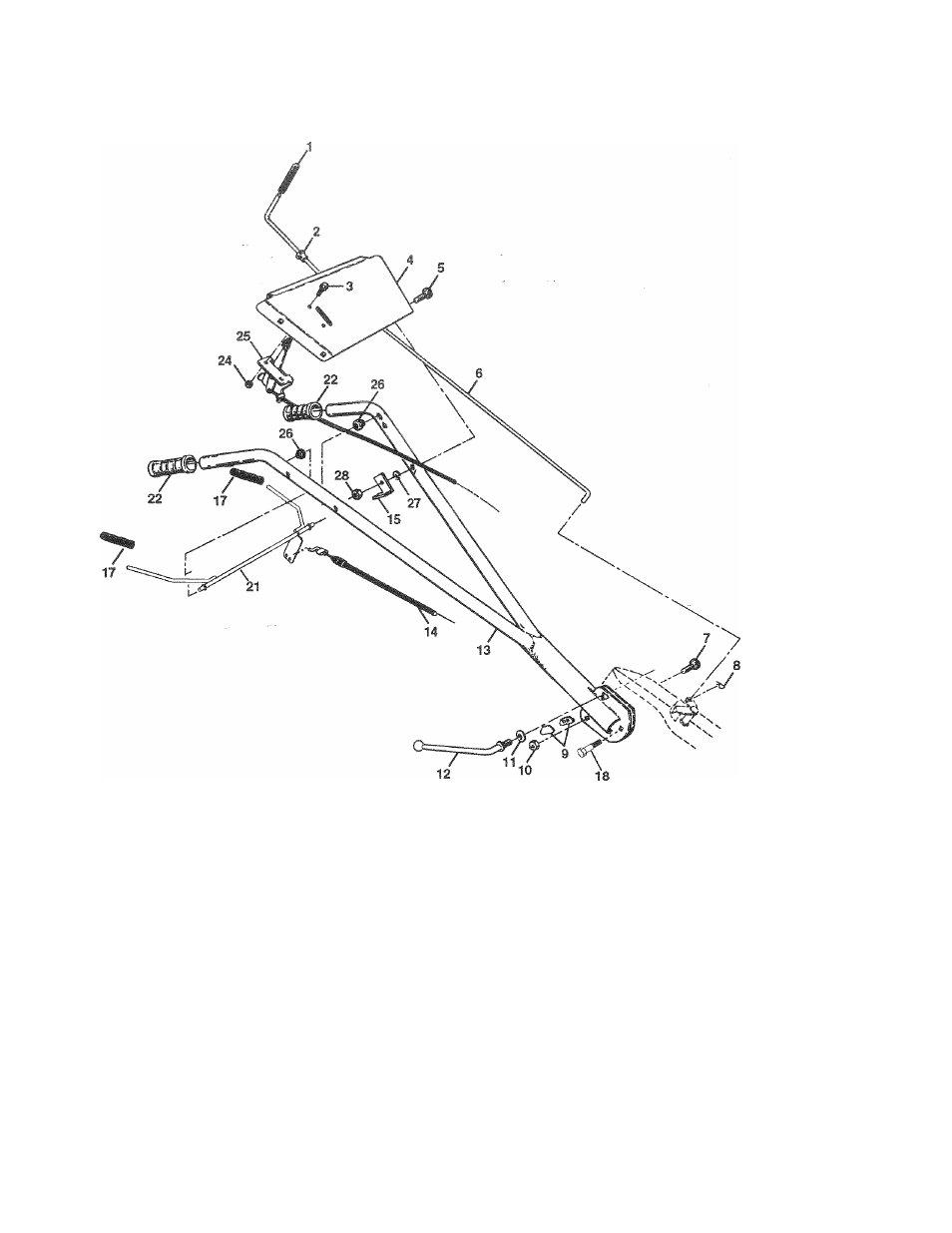

HANDLE ASSEMBLY
KEY PART
NO. NO.
1 8389J
2
121248X
3 71191008
4
126949X428
5 72110514
6
108281X
7
72110608
8 4497H
9
109229X
10 73930600
11
19131611
12
109228X
13
150217
DESCRIPTION
Grip, Handle
Bushing, Snap
Screw, Pan Hd. #10-24
Bracket, Handle
Bolt, Carriage 5/16-18 x 1-3/4
Rod, Shift
Bolt, Carriage 3/8-16 x 1 Gr. 5
Clip, Hairpin
Lock, Handle
Nut 3/8-16
Washer 13/32x 1 x 11 Ga.
Lever, Lock, Handle
Handle
KEY
PART
NO. NO.
14 159232
15 145821
17
102604X
18
150696
21
159227
22
150744
24
73731000
25
127012X
26
146480
27
10040500
28
73800500
DESCRIPTION
Cable, Clutch
Bracket, Clutch Cable
Grip, Bar Control
Bolt, Pivot
Bar, Control
Grip, Handle
Nut, Keps #10-24 UNC
Control, Throttle
Grommet, Handle
Washer, Lock 5/16
Locknut 5/16-18
NOTE: All
component dimensions given in U.S. inches.
1 inch = 25.4 mm
