OPERATION

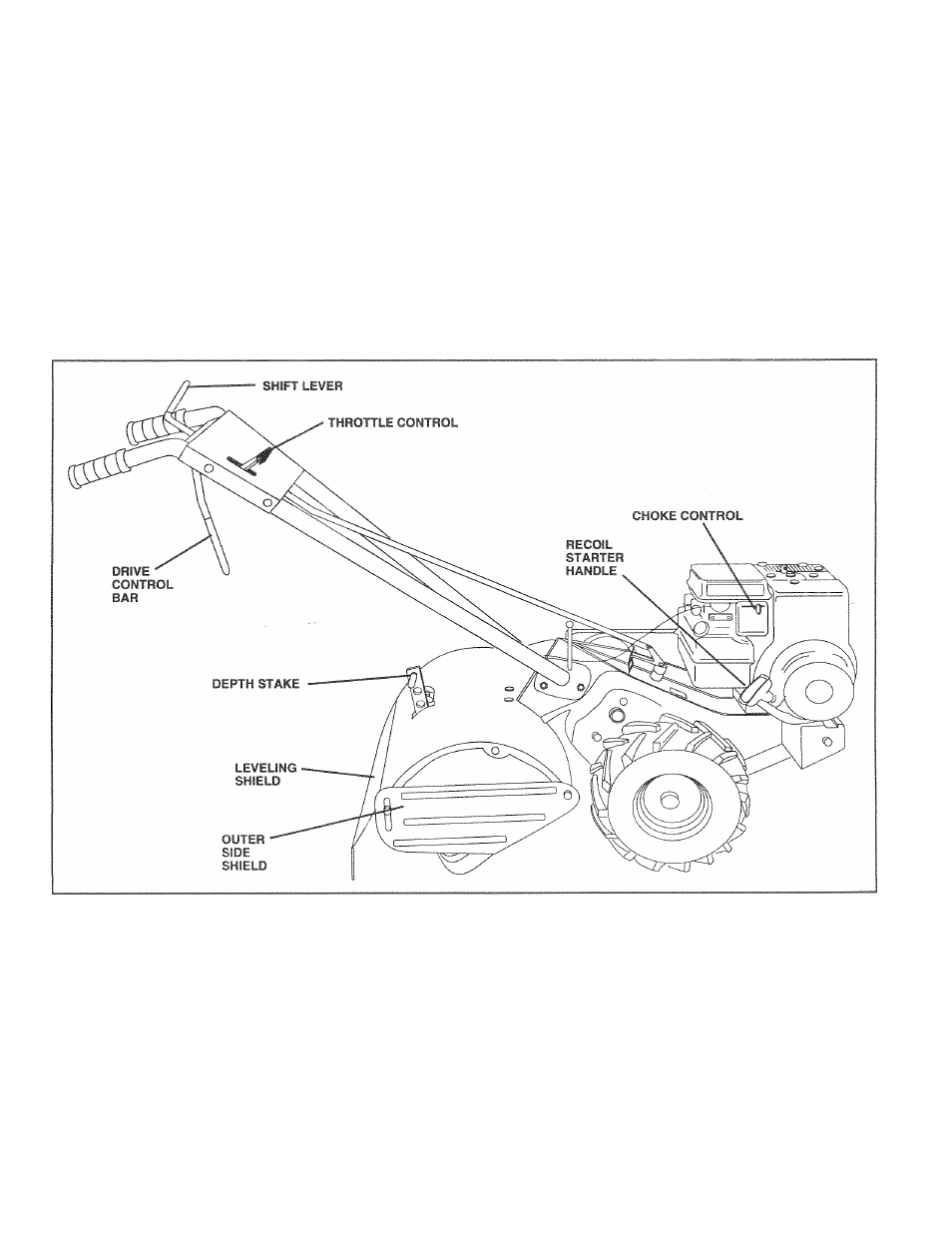

KNOW YOUR 111 LE»
HI
m
THIS
4Y& t' iv ^ i .iCES BEFORE OPERATING YOUR TILLER.
f
iiv !)•!'! ifr^n"' ftOi
f
fr (l|pf Ki f »rniliiii e yourself with the location of various controls and adjustments. Save
trii Turii--=< ' O'H miv -
, ! ■
These symbols niay appear on yoyr Tiiier or In iiteratyre supplied with the prodyct. Learn and understand their
meaning.
I F N R A © © * ^ ' ^ l X l i B ' ^
TILLING FORWARD NEUTRAL REVERSE CAUTION ENGINE ENGINE
FAST
OR WARNING ON
OFF
SLOW
CHOKE
FUEL
OIL
STOP
I
o
FIG. 8
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
THROTTLE CONTROL - Used to control engine speed.
DRIVE CONTROL BAR - Used to engage tiller.
DEPTH STAKE - Controls depth at which tiller will dig.
LEVELING SHIELD - Levels tilled soil.
OUTER SIDE SHIELD - Adjustable to protect small plants
from being buried.
SHIFT LEVER Used to shift transmission gears.
RECOIL STARTER HANDLE - Used to start the engine.
CHOKE CONTROL - Used when starting a cold engine.
8
