OPERATION
^ ' J ÔRY b NGINE fSee Fig, 13)
TiiJJNG HINT'S
A CAUTION: Keep diive coiiîroî bar in
'■.OISENGAOED’" pe«iiiori when start­
ing engine.
VVhen starting engine tor the first iime or >f engine has run
OUI of fuel, Si Will take extra putis ol the reoois starter to move
fuel fforo Hie tank to the engine.
• Make sure spark plug wire is properly connected.
® Move shift ¡ever indicator to ''t-T (neuîrai) position.
® Place throttle control in “FAST' position,
• Move choke control to full “CHOKE” position, Grasn
recoil starter handle with one hand and grasp tiller
handle with other hand. Puli rope out sbwly until
engine reaches start of compression cycle (rope will
pull slightly harder at this point).
• Puii recoil starter handle quickly. Do not let starter
handle snap back against starter. Repeat if necessary.
• If engine fires but does not start', move choke control to
half choke position. Pull recoil starter handle until
engine starts.
• When engine starts, slowly move choke control to
“RUN” position as engine warms up.
NOTE: A warm engine requires less choking to start.
• Move throËle control to desired running position.
• Allow engine to warm up for a few minutes before
engaging tines.
NOTE: If at a high altitude (above 3000 feet) or in cold
temperatures (below 32°F), the carburetor fuel mixture
may need to be adjusted for best engine performance. See
“TO ADJUST CARBURETOR” in the Service and Adjust­
ments section of this manual.
NOTE: If engine does not start, see troubleshooting points.

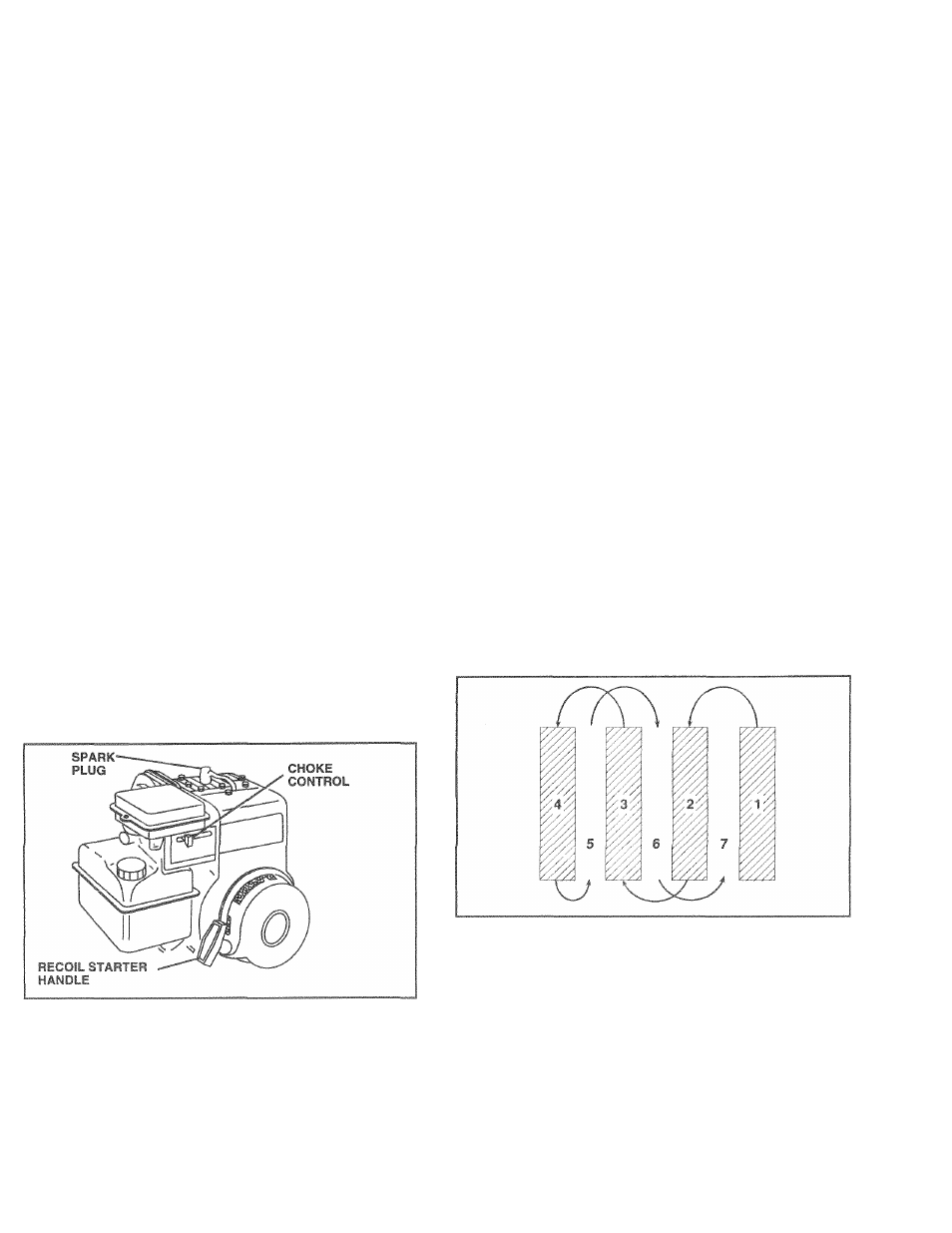

FIG. 13
A
tAUTiOW: Until V'ill i,5^arcystO!tieatci
haiidiirii your tiller, start actual field
use with throttle in sfow position (mid­
way between '‘FAST"' and 'IDLE").
Tilling rs digging into, turning over, and breaking up
packed soil before planting. Loose, unpacked soil
helps root growth. Best tilling depth is 4“ to 6" (10-15
OTi). A tiller will .also clear the soil of unwanted
vegetation. The decomposition of this vegetable mat­
ter enriches the soT Depending on the climate (rainfall
and wind), it may be advisable to till the soil at the end
of the growing sea.son
to further condition the soil.
Soil conditions are important for proper tilling. Tines will
not readily penetrate dry, hard soil which may contrib­
ute to excessive bounce and difficult handling of you*"
tiller, hard soil should be moistened before tilling;
however, extremely wet soil will “ball-up” or dump
during tilling. Wait until the soil is less wet in order to
achieve the best results. When tilling in the fall, remove
vines and long grass to prevent them from wrapping
around the tine shaft and slowing your tilling operation.
You will find tilling much easier if you leave a row
untilled between passes. Then go back between tilled
rows. (See Fig. 14) There are two reasons for doing
this. First, wide turns are much easier to negotiate than
about-faces. Second, the tiller won’t be pulling itself,
and you, toward the row next to it.
Do not lean on handle. This takes weight off the wheels
and reduces traction. To get through a really tough
section of sod or hard ground, apply upward pressure
on handle or lower the depth stake.
FIG. 14
TINE SHEAR PINS
The tine assemblies on your tiller are secured to the tine
shaft with shear pins (See “TINE REPLACEMENT” in the
Service and Adjustments section of this manual).
if the tiller is unusually overloaded or jammed, the shear
pins are designed to break before internal damage occurs
to the transmission.
• If shear pin(s) break, replace only with those shown in
the Repair Parts section of this manual.
11
