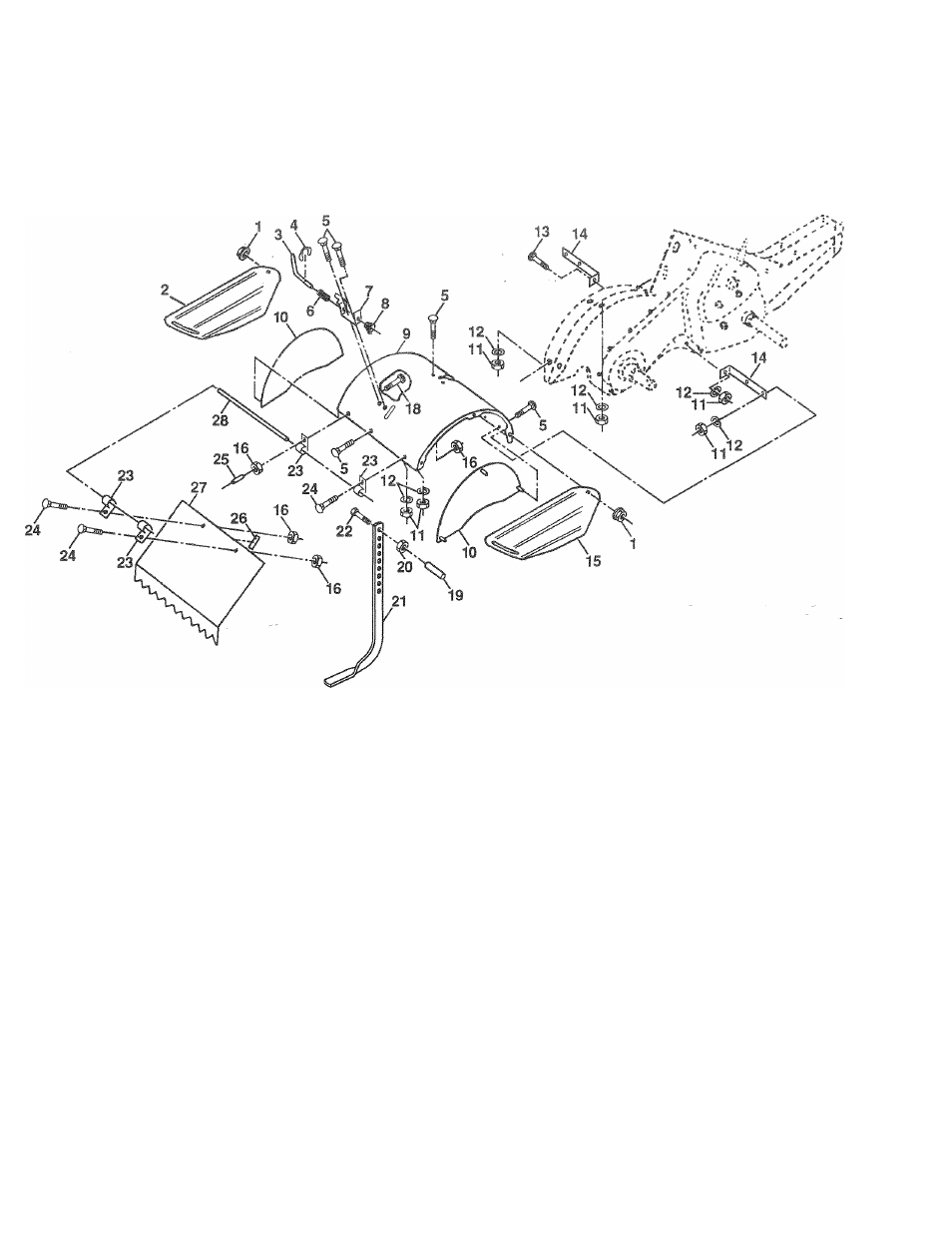

REPAIR PARTS
TINE SHIELD
TILLER - - MODEL NUMBER CHDR500C
KEY
PART
NO.
NO.
1
98000129
2
161415X428
3
8393J
4
12000036
5
72140506
6
8394J
7
8392J
8
109230X
9
102326X428
10
104085X428
11
73220500
12
10040500
13
72110510
14
124343X
15
161414X428
DESCRIPTION
Nut, Flange 5/16-18
Shield, Side, Outer L. H.
Pin, Stake, Depth
Ring, Klip
Bolt, Carriage 5/16-18 x 3/4 Gr 5
Spring
Bracket, Latch
Spring, Depth Stake
Shield, Tine
Shield, Side
Nut, Hex 5/16-18
Washer, Lock 5/16
Bolt, Carriage 5/16-18 x 1-1/4
Bracket, Shield Tine
Shield, Side, Outer R.H.
KEY
NO.
PART
NO.
DESCRIPTION
16
73510400
Nut, Keps 1/4-20
18
72040410
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
19
102701X
Grip
20
73220600
Nut, Hex 3/8-16
21
102156X
Stake, Depth
22
74930632
Bolt, Hex 3/8-16x2
23
4440J
Hinge
24
72140404
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
25
6712J
Cap, Vinyl
26
109227X
Pad, Idler
27
102695X428
Shield, Leveling
28
120588X
Pin,
Hinge
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
