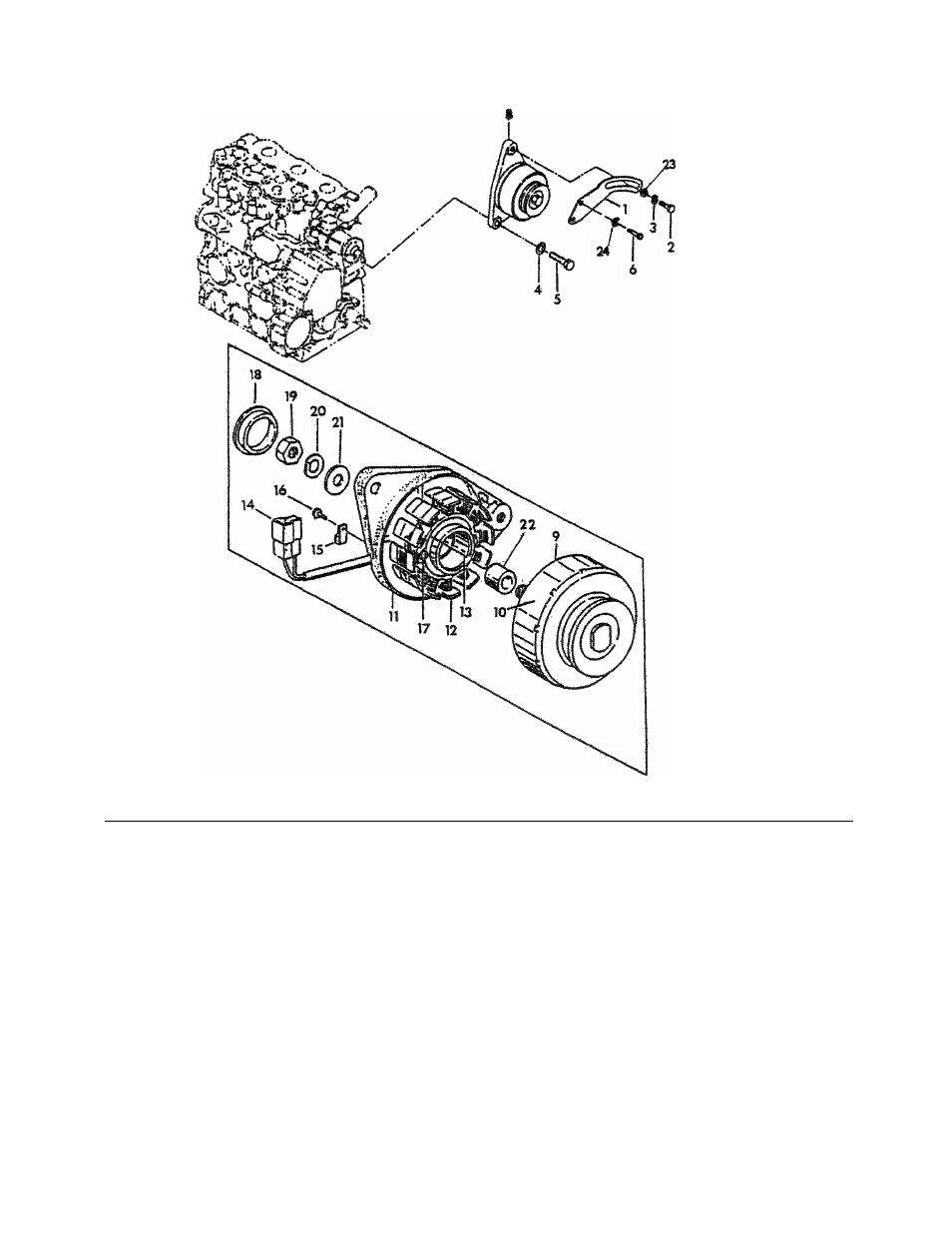

EXPLODED VIEW — DC ALTERNATOR

Drawing No. 75685-A

TEM

PART NO.

QTY.

DESCRIPTION

ITEM

PART NO.

QTY.

DESCRIPTION

1

77909

1

ADJUSTING PLATE

14

352-70939

1

COUPLER

2

74829

1

HHCS M8-1.25X30MM

15

353-70939

1

CLAMP

3

72545

1

LOCK WASHER M8

16

354-70939

1

SCREW

4

74007

1

FLAT WASHER Ml0

17

355-70939

2

SCREW

5

74069

1

HHCSM10-1.5X40MM

18

350-70939

1

CAP

6

51753

2

HHCS M6-1.0X40MM

19

351-70939

1

NUT

8

277-70939

1

ALTERNATOR ASSEMBLY

20

137-70939

1

LOCK WASHER

9

345-70939

1

FLYWHEEL

21

280-70939

1

WASHER

10

349-70939

1

BEARING

22

356-70939

1

COLLAR

11

346-70939

1

PLATE ASSEMBLY

23

74827

1

FLAT WASHER M8

12

348-70939

1

STATOR

24

70005

2

LOCK WASHER M6-SS

13

349-70939

1

BEARING

31
