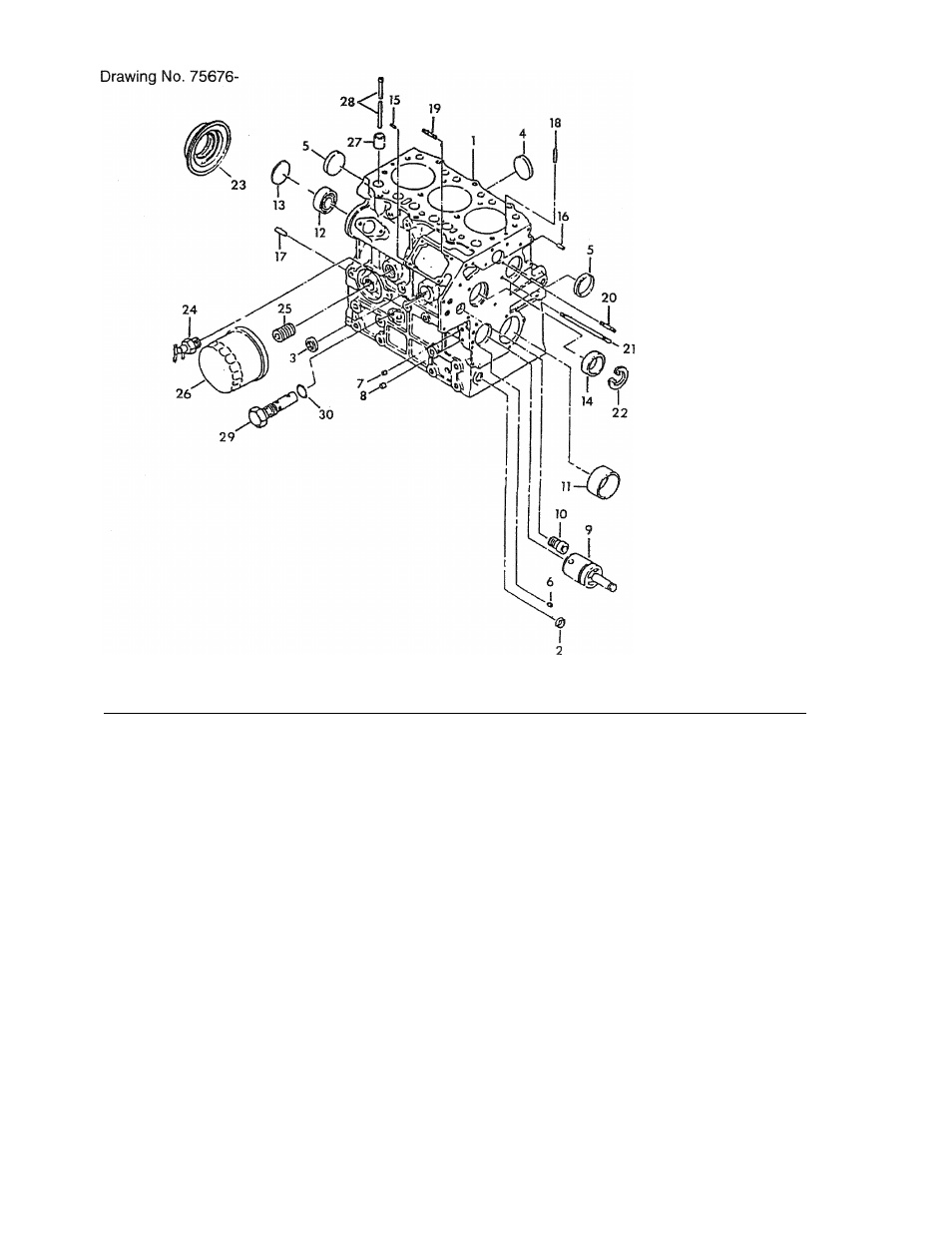

EXPLODED VIEW — CYLINDER BLOCK
TEi
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
100-70939
1
COMPLETE CYLINDER
17
117-70939
2
DOWEL PIN
BLOCK
18
118-70939
2
SPRING PIN
2
447-70939
1
EXPANSION PLUG
19
119-70939
2
STUD
3
101-70939
1
EXPANSION PLUG
20
120-70939
1
PUSH ROD
4
102-70939
2
EXPANSION PLUG
21
121-70939
1
STUD
5
103-70939
2
EXPANSION PLUG
22
131-70939
1
SNAP RING
6
104-70939
1
EXPANSION PLUG
23
123-70939
1
OIL SEAL
7
105-70939
4
PLUG
24
124-70939
1
DRAIN COCK
8
106-70939
4
PLUG
25
125-70939
1
CONNECTOR
9
107-70939
1
IDLE GEAR SHAFT
26
126-70939
1
OIL FILTER
10
108-70939
1
BUSHING
27
127-70939
6
TAPPET
11
108-70939
1
BUSHING-STANDARD
28
128-70939
6
PUSH ROD
110-70939
1
0.25MM U.S. BUSHING
29
129-70939
1
RELIEF VALVE
111-70939
1
0.50MM U.S. BUSHING
30
130-70939
1
0-RING
12
112-70939
1
BALL BEARING
13
113-70939
1
EXPANSION PLUG
14
114-70939
1
BALL BEARING
MM = MILLIMETER
15
115-70939
1
DOWEL PIN
U.S. = UNDERSIZE
16
116-70939
1
DOWEL PIN
—
