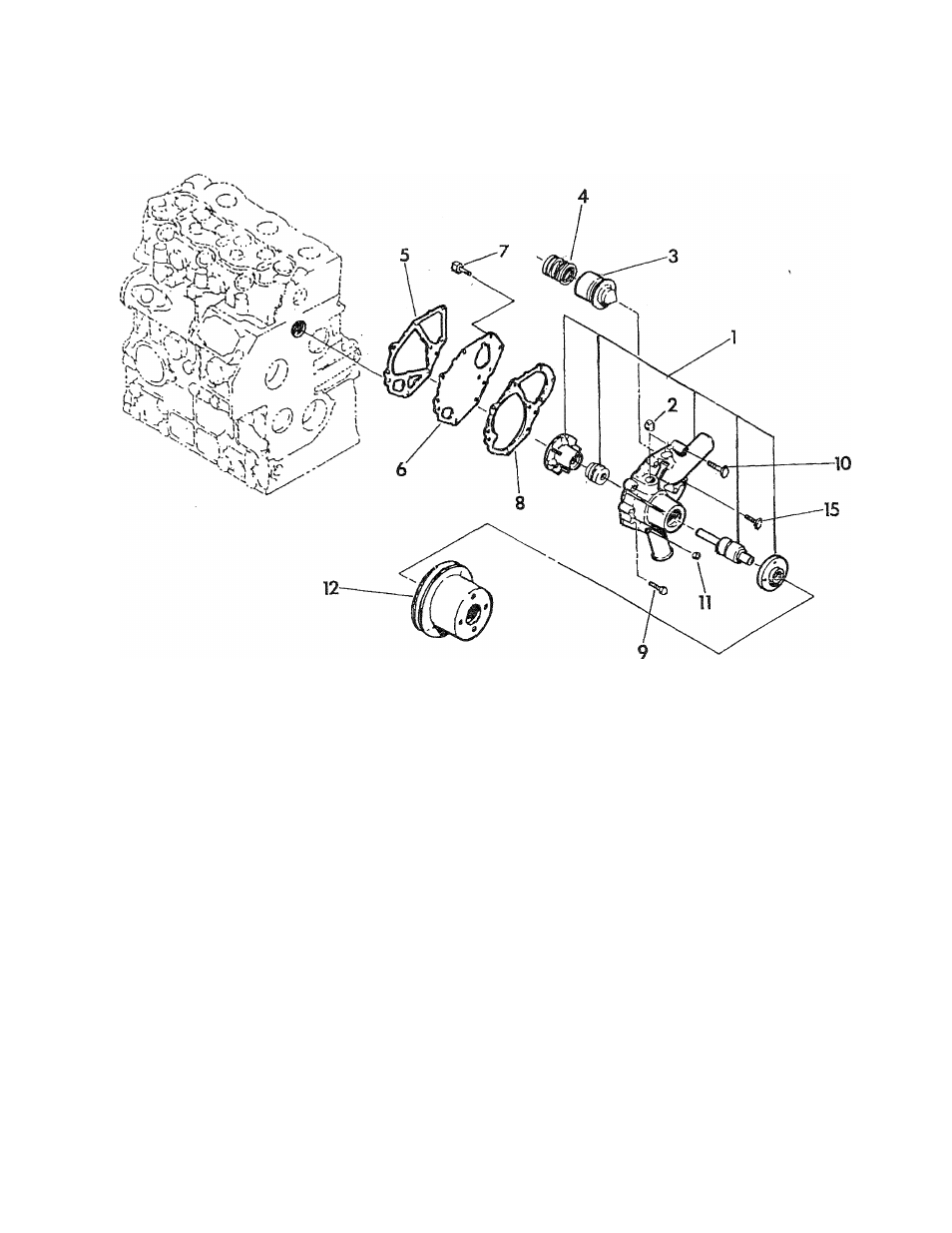

EXPLODED VIEW — WATER PUMP

Drawing No. 82962-

ITEM

PART NO. QTY. DESCRIPTION

1

265-70939

1

WATER PUMP ASSEMBLY

2

266-70939

1

PLUG

3

267-70939

1

THERMOSTAT

4

268-70939

1

SPRING

5

269-70939

3

GASKET

6

270-70939

1

SET PLATE

7

271-70939

1

BOLT

8

272-70939

1

GASKET

9

273-70939

1

BOLT

10

274-70939

1

BOLT

11

275-70939

1

NUT

12

247-70939

1

PULLEY

15

284-70939

1

BOLT

—

27
