Drawing No. 82067-

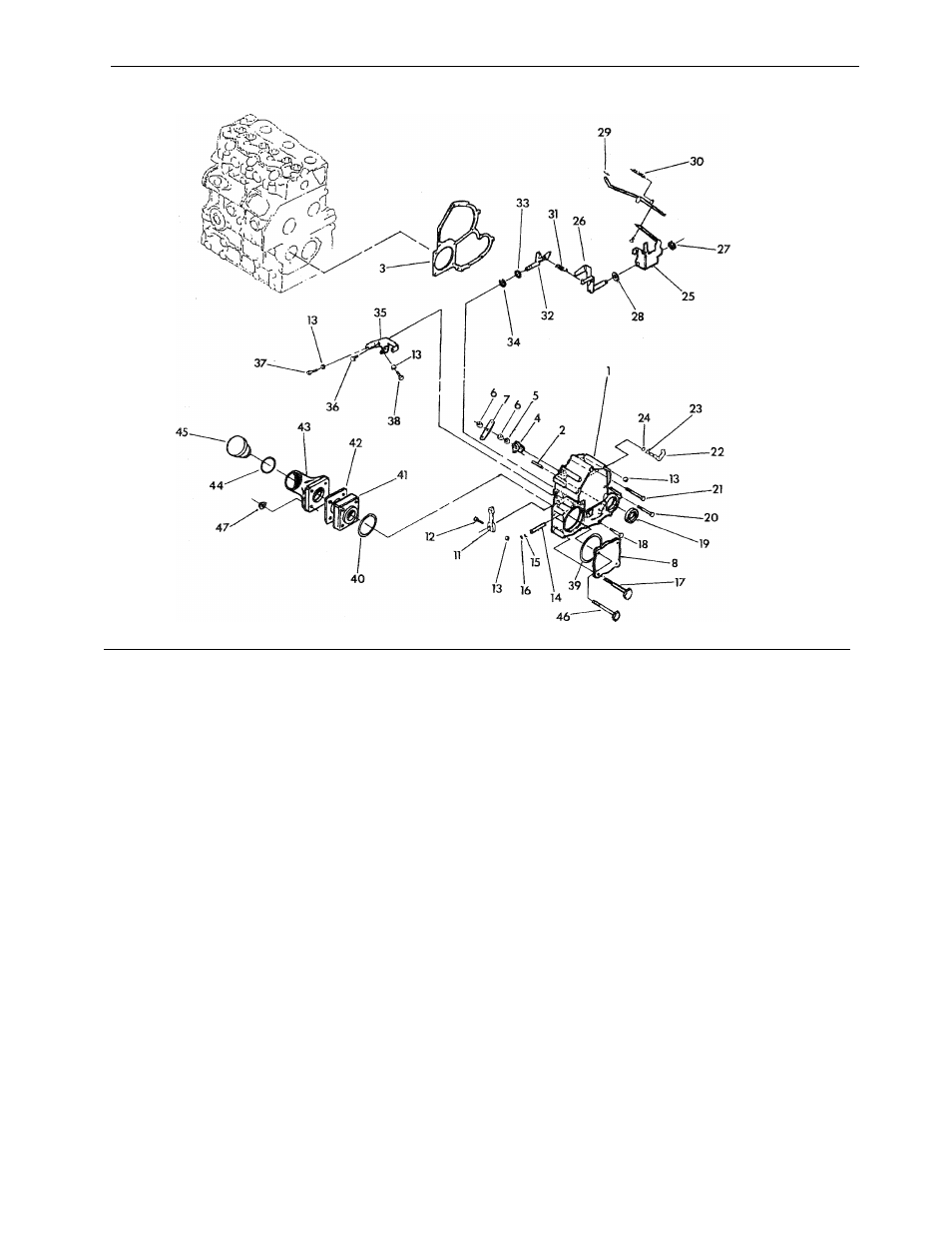

EXPLODED VIEW — TIMING GEAR HOUSING AND GOVERNOR
TEM
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
285-70939
1
TIMING GEAR HOUSING
26
290-70939
1
TENSION LEVEL
2
28670939
1
SPRING PIN
27
291-70939
1
SNAP RING
3
287-70939
1
GASKET
28
136-70939
1
WASHER
4
307-70939
1
SPRING
29
292-70939
1
COTTER PIN
5
308-70939
1
WASHER
30
313-70939
1
SPRING
6
309-70939
2
NUT
31
293-70939
1
SPRING
7
310-70939
1
STOP LEVER
32
294-70939
1
ARM
8
314-70939
2
COVER
33
295-70939
1
0-RING
11
296-70939
1
GOVERNOR LEVEL
34
291-70939
1
SNAP RING
12
297-70939
1
BOLT
35
302-70939
1
BRACKET
13
298-70939
4
NUT
36
271-70939
3
BOLT
14
299-70939
1
SHAFT
37
303-70939
2
BOLT
15
300-70939
1
0-RING
38
71944
1
HHCS M6-1.0 X 25 MM
16
301-70939
1
SNAP RING
39
660-70939
1
0-RING
17
540-70939
3
BOLT
40
534-70939
1
0-RING
18
282-70939
5
BOLT
41
535-70939
1
SPACER
19
288-70939
1
OIL SEAL
42
536-70939
1
GASKET
20
274-70939
4
BOLT
43
537-70939
1
HOLDER (OIL FILL)
21
311-70939
5
BOLT
44
539-70939
1
0-RING
22
304-70939
1
ARM
45
188-70939
1
CAP
23
305-70939
1
SNAP RING
46
541-70939
1
BOLT
24
306-70939
1
0-RING
47
538-70939
3
NUT
25
289-70939
1
GOVERNOR LEVEL
ASSEMBLY
29
—
