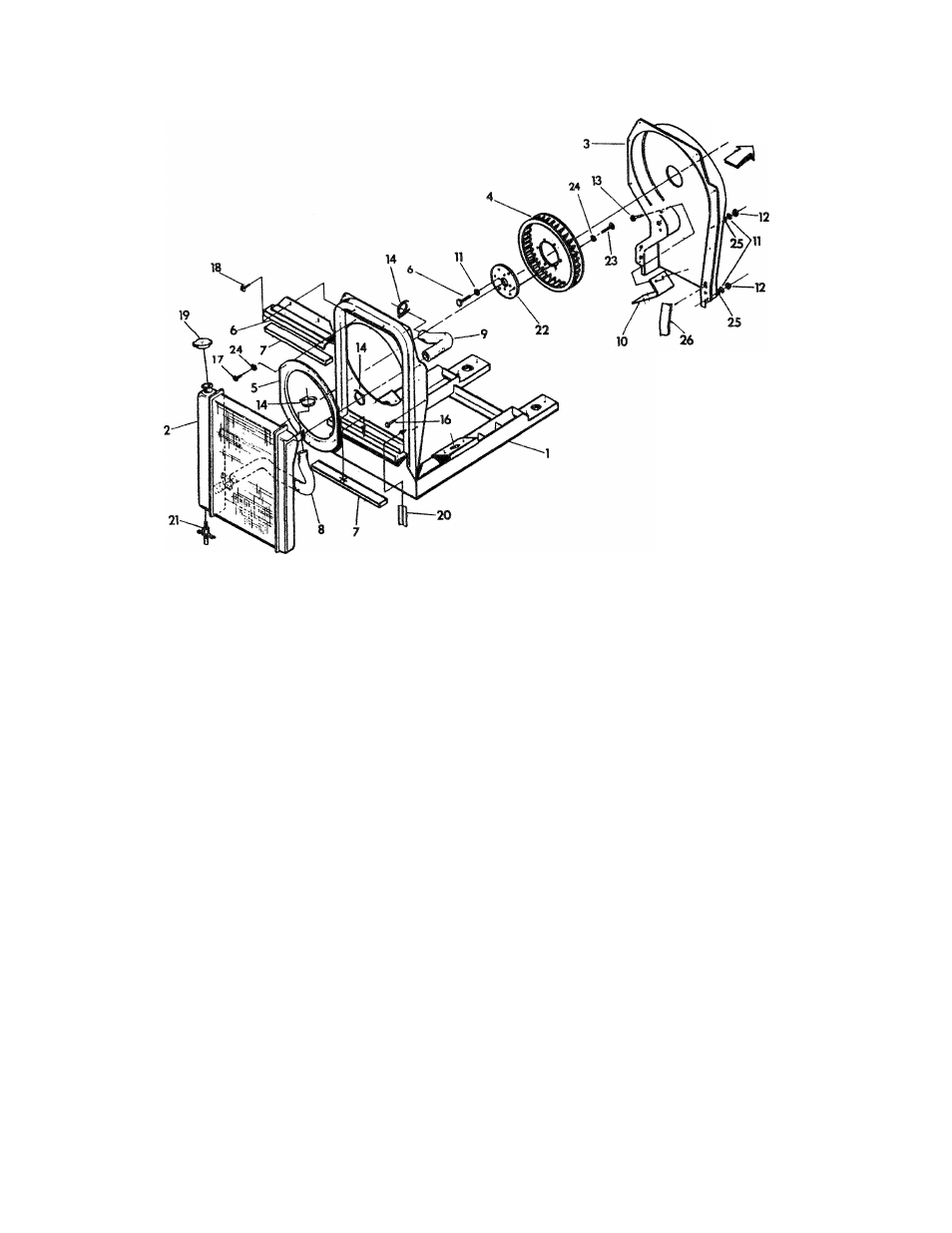

EXPLODED VIEW — RADIATOR
Drawing No. 83294-B
TO W4TS*
nnir
• INDICATES
tOCATlON or
WEU) STODS
ITEM
PART NO. QTY. DESCRIPTION
1
83098
1
ASSEMBLY, BASE
2
83057
1
RADIATOR, CROSS FLOW
3
80245
1
BLOWER HOUSING
4
81905
1
FAN, ENGINE
5
82603
1
RING, FAN INLET
6
83058
1
BRACKET, RADIATOR MOUNTING
7
81977-A
2
FOAM PAD
8
81947
1
HOSE, LOWER RADIATOR
9
81946
1
HOSE, UPPER RADIATOR
10
82605
1
PLATE, BLOWER HOUSING
11
22097
7
LOCK WASHER-1/4"-M6
12
49813
11
NUT, HEX-M6-1.0
13
66831
2
RIVET-POP
14
35586
4
HOSE CLAMP #20
16
42568
11
CAPSCREW, HEX HEAD-M6-1.0 X 20 LONG
17
56892
6
CRIMPTITE, 10-24X3/8" LONG
18
58442
2
CRIMPTITE, 1/4"-20X1/2" LONG
19
46627
1
CAP, RADIATOR
20
52250
5 FT.
FOAM PAD-3/4"X1" WIDE
21
50832
1
DRAIN COCK-1/8" NPT
22
81976
1
HUB, FAN
23
51787
6
CAPSCR., HEX HD.-M4-0.7 X 16 LONG
24
22152
12
LOCKWASHER-#10
25
22473
11
FLATWASHER-1/4"-M6
26
29451
5'
FOAM TAPE-1/8" X 1/2"
